JUN-AIR OF series compressor, air compressor (Air compressor) piston type without oil to lubricate (Oil-less Rocking Piston). There are 7 imported products from the United States, consisting of OF1201, OF1202, OF302, OF322, OF302-15B, OF302-25B and OF302-25M suitable for medical use Dental and industrial laboratories
Air Compressor JUN AIR OF Series
JUN-AIR OF Series Air Pump OF Series
Air compressor (air compressor) JUN-AIR OF Series The machine has seven sets of compressors. There are many sizes of tanks to choose from according to the needs of users, with this model, the first number shows the motor size. And the second shows the tank size, liters.
Qualification
[vc_row_inner][vc_column_inner][vc_single_image image=”747580″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner]

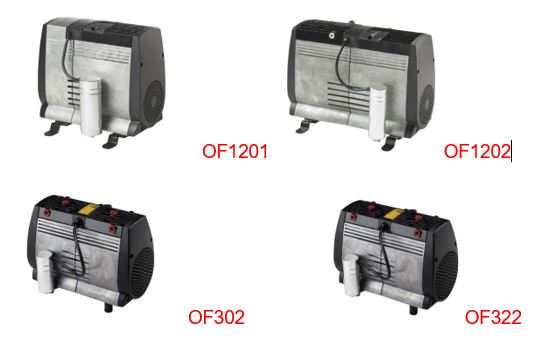

| MODEL | JUN-AIR OF 1201 | JUN-AIR OF1202 | JUN-AIR OF302 | JUN-AIR OF322 | |
| Voltage | V | 230 | 230 | 230 | 230 |
| Frequency | Hz | 50 | 50 | 50 | 50 |
| Motor | HP | 1.22 | 2 | 0.6 | 0.6 |
| KW | 0.9 | 1.47 | 0.44 | 0.44 | |
| Displacement | l/min | 146 | 290 | 108 | 67 |
| CFM | 5.16 | 10.24 | 3.81 | 2.37 | |
| FAD @8bar | l/min | 65 | 130 | 38 | 40 |
| CFM | 2.3 | 4.59 | 1.34 | 1.41 | |
| Max Pressure | bar | 8 | 8 | 8 | 12 |
| psi | 120 | 120 | 120 | 175 | |
| Max Current | A | 6.2 | 8 | 3.4 | 3.8 |
| Tank Size | litres | – | – | – | – |
| gallon | – | – | – | – | |
| Weight | Kg | 23 | 34 | 13 | 13 |
| lbs | 51 | 75 | 29 | 29 | |
| Noise Level | dB(A)/lm | 77 | 76 | 65 | 72 |
| Thermal protection | Yes | Yes | Yes | Yes | |
| Duty cycle | 100% | 100% | 100% | 100% | |
| WxLxH | mm | 180x351x326 | 180x446x326 | 139x312x238 | 139x312x238 |
[vc_row_inner][vc_column_inner][vc_single_image image=”747582″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner]

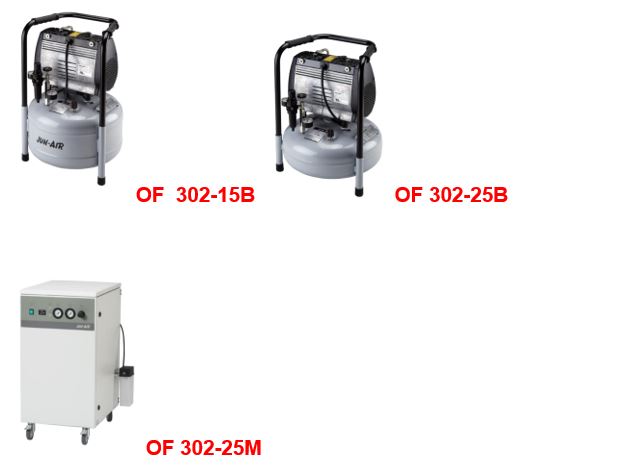

| MODEL | OF302-15B | OF302-25B | OF302-25M | |
| Voltage | V | 230 | 230 | 230 |
| Frequency | Hz | 50 | 50 | 50 |
| Motor | HP | 0.6 | 0.6 | 0.6 |
| KW | 0.44 | 0.44 | 0.44 | |
| Displacement | l/min | 108 | 108 | 108 |
| CFM | 3.81 | 3.81 | 3.81 | |
| FAD @8bar | l/min | 38 | 38 | 38 |
| CFM | 1.34 | 1.34 | 1.34 | |
| Max Pressure | bar | 8 | 8 | 8 |
| psi | 120 | 120 | 120 | |
| Max Current | A | 3.4 | 3.4 | 3.4 |
| Tank Size | litres | 15 | 25 | 25 |
| gallon | 4 | 6.6 | 6.6 | |
| Weight | Kg | 25 | 28 | 78 |
| lbs | 55 | 62 | 172 | |
| Noise Level | dB(A)/lm | 65 | 65 | 47 |
| Thermal protection | Yes | Yes | Yes | |
| Duty cycle | 100% | 100% | 100% | |
| WxLxH | mm | 380x380x510 | 380x380x590 | 452x661x856 |
