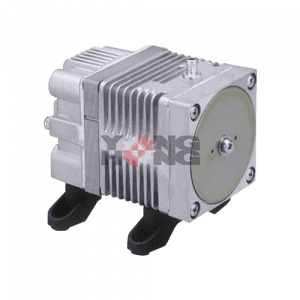

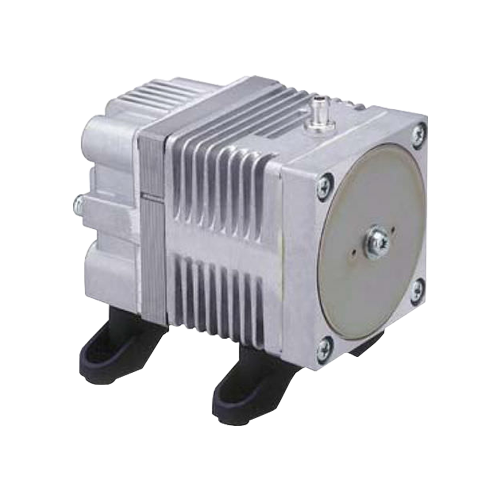

Air Compressor MEDO AC 0105 Series Interm Pressure

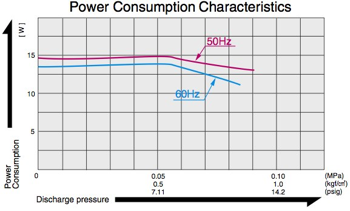

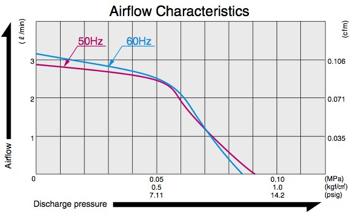

ac_0105_airflow_1            ac_0105_power_2



Specifications MEDO AC 0105 Series

Air Compressor MEDO AC 0105 Series
Rated Pressure: 0.5 bar
Rated Airflow: 2.5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.8 bar
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: 6mm O.D. hose nipple
Duty Cycle: 60 minutes
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

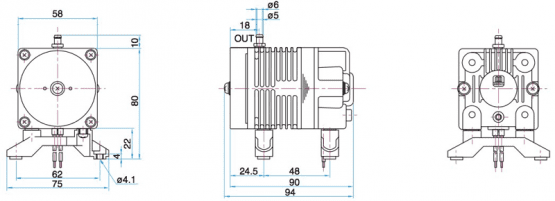

Dimensions MEDO AC 0105 Series

ac_0105_dimensions_
