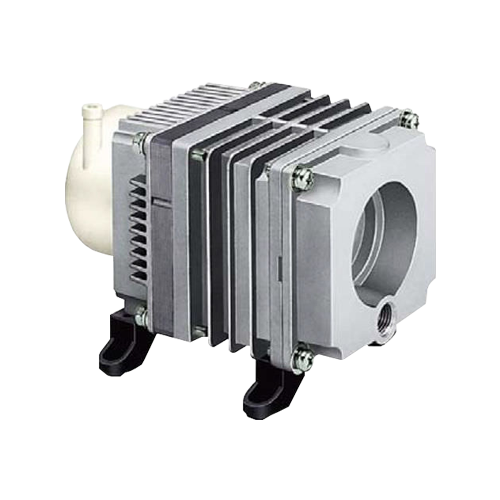

Air Compressor MEDO AC 0201A Series

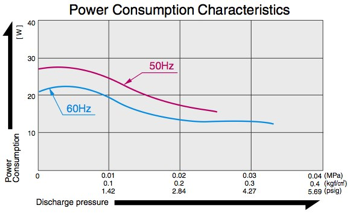

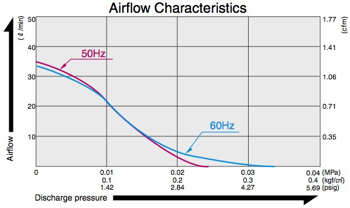

ac_0201_a_airflow_1                    ac_0201_a_power_2



Specifications MEDO AC 0201A Series

Air Compressor MEDO AC 0201A Series
Rated Pressure: 0.2 bar
Rated Airflow: 5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.4 bar
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: 6 mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

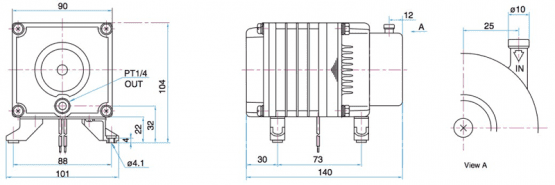

Dimensions MEDO AC 0201A Series

ac_0201_a_dimensions_
