แอร์คอมเพรสเซอร์ MEDO AC 0602 Series

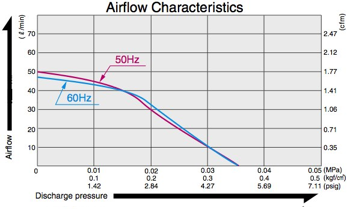

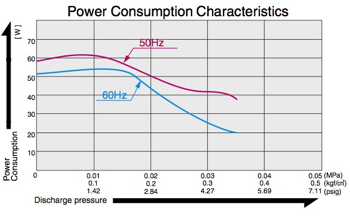

ac_0602_airflow_1            ac_0602_power_2



Specifications MEDO AC 0602 Series

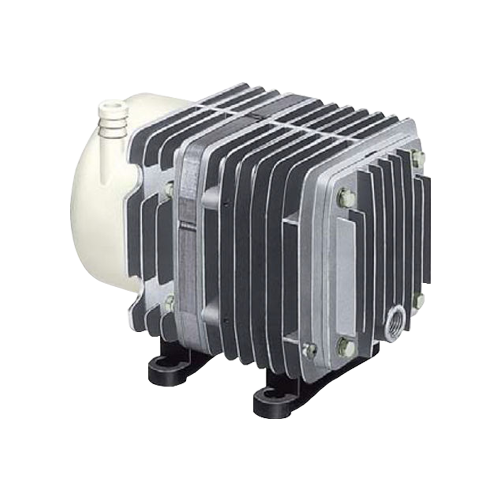

Air Compressor MEDO AC 0602 Series
Rated Pressure: 0.15 bar
Rated Airflow: 40 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.35 bar
Power Consumption: 58 W
52 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 1/4 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 3 kg
Leadwire Length: 250 or 350 mm

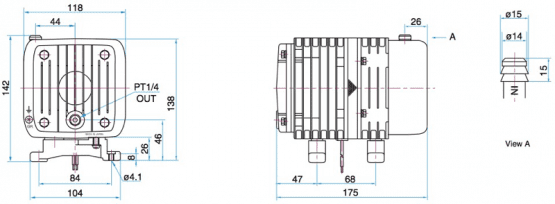

Dimensions MEDO AC 0602 Series

ac_0602_dimensions_
