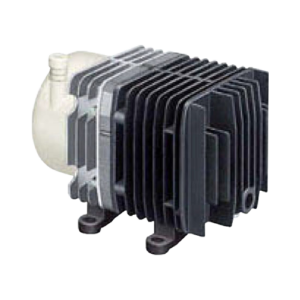

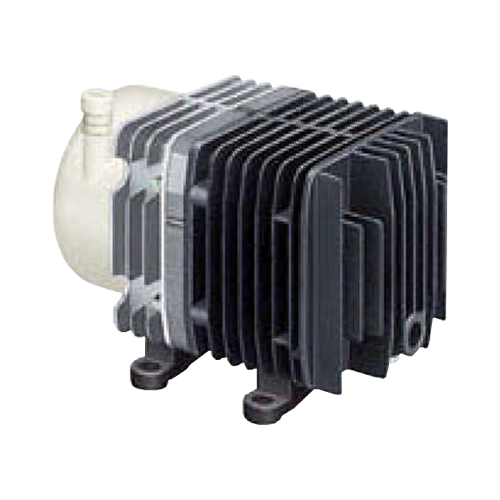

Air Compressor MEDO AC 0610A Series Interm Pressure

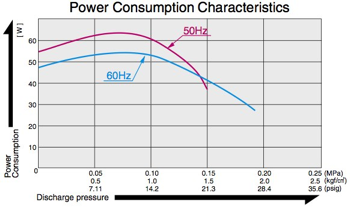

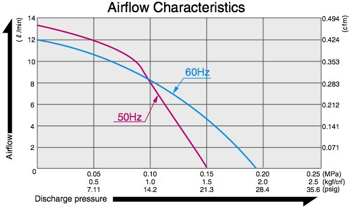

ac_0610_airflow_1            ac_0610_power_2



Specifications MEDO AC 0610A Series

Air Compressor MEDO AC 0610A Series
Rated Pressure: 1.0 bar
Rated Airflow: 8 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.5 bar
Power Consumption: 60 W
52 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 3.2 kg
Leadwire Length: 270 mm or 200 mm

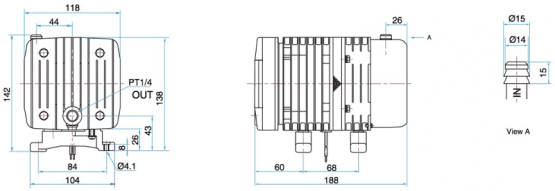

Dimensions MEDO AC 0610A Series

ac_0610_dimensions_
