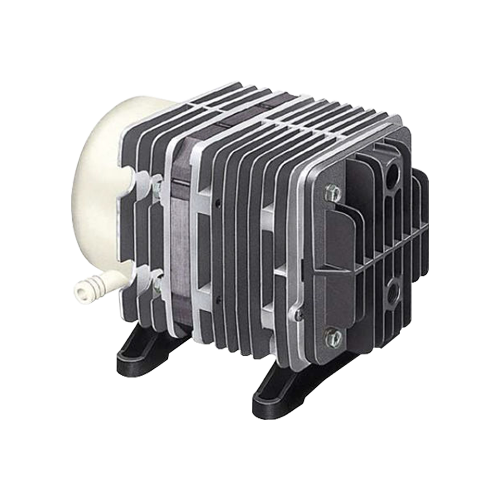

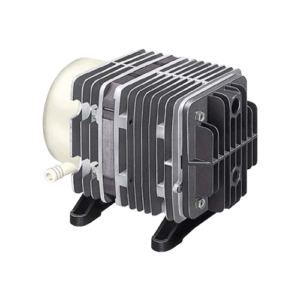

Air Compressor MEDO AC 0910 Series Interm Pressure

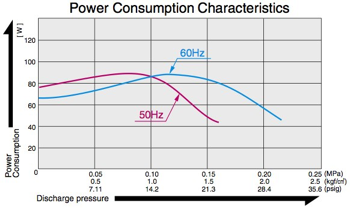

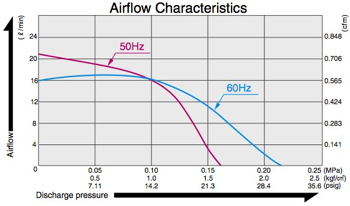

ac_0910_airflow_            ac_0910_power_2



Specifications MEDO AC 0910 Series

Air Compressor MEDO AC 0910 Series
Rated Pressure: 1.0 bar
Rated Airflow: 16 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.5 bar
Power Consumption: 90 W
85 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 4.9 kg
Leadwire Length: 150 mm or 320 mm

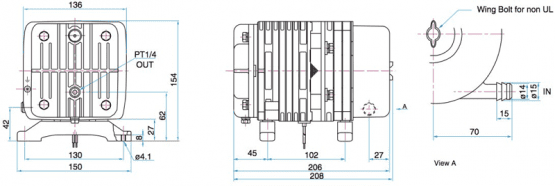

Dimensions MEDO AC 0910 Series

ac_0910_dimensions_
