Air Compressor MEDO AC 0920 Series Interm Pressure
Specifications MEDO AC 0920 Series
| Air Compressor MEDO AC 0920 Series | |
| Rated Pressure: | 2.0 bar |
| Rated Airflow: | 8 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Maximum Pressure: | 3.0 bar |
| Power Consumption: | 100 W |
| 80 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 3.000 h |
| Outlet: | ISO Rc 1/4 female threaded |
| Duty Cycle: | 30 minutes |
| Coil Insulation Class: | E or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 102 x 130 mm |
| Gross Weight: | 5 kg |
| Leadwire Length: | 150 mm |

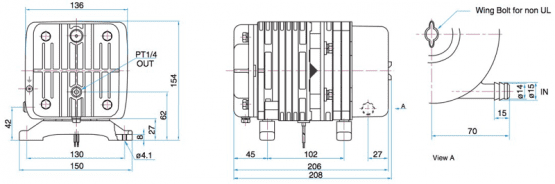

Dimensions MEDO AC 0920 Series
