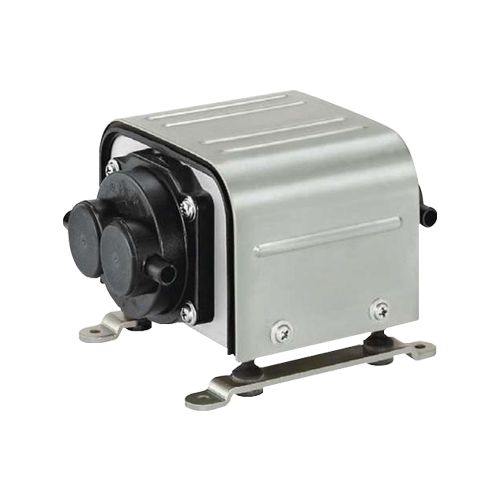

แอร์คอมเพรสเซอร์ MEDO VC 0201 (Blower)
Specification MEDO VC 0201 (Blower)
| Air Compressor MEDO VC 0201 (Blower) | |
| Attainable Vacuum: | n/a |
| Rated Airflow: | 20 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Maximum Pressure: | 0.18 bar |
| Rated Pressure: | 0.1 bar |
| Power Consumption: | 19 W |
| 18 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 10.000 h |
| Working Pressure Range: | -187 mbar to 0.18 bar |
| Outlet (Inlet): | 8.5mm O.D. hose nipple |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | B for 230V & A for 120V or its equivalent (JETL) |
| Mounting Dimensions (L x W): | 100 x 85 mm |
| Gross Weight: | 1.8 kg |
| Leadwire Length: | 200 mm |

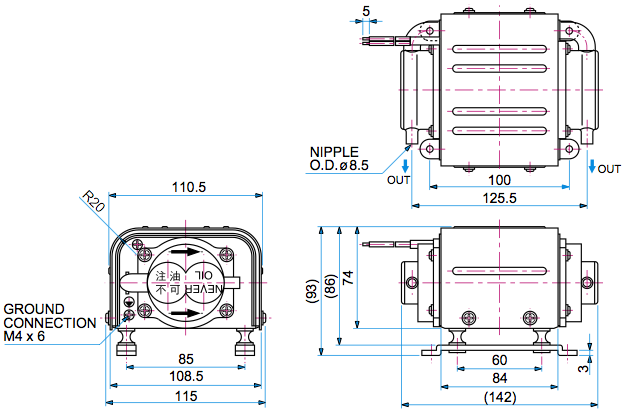

Dimension MEDO VC 0201 (Blower)
