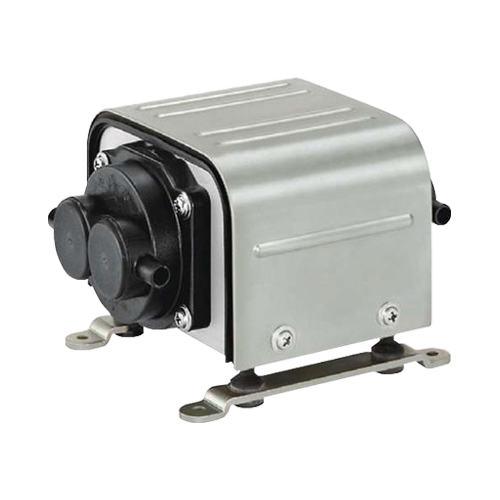

Air Compressor MEDO VC 0301B (Dual)
Specification MEDO VC 0301B (Dual)
| Air Compressor MEDO VC 0301B (Dual) | |
| Attainable Vacuum: | -213 mbar |
| Rated Airflow: | 25 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Maximum Pressure: | 0.2 bar |
| Rated Pressure: | 0.1 bar |
| Power Consumption: | 27 W |
| 27 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 10.000 h |
| Working Pressure Range: | -213 mbar to 0.2 bar |
| Outlet (Inlet): | 8.5mm O.D. hose nipple (Outlet) |
| 10.5mm O.D. hose nipple (Inlet) | |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | B for 230V or its equivalent (JETL) |
| A for 120V or its equivalent (JETL) | |
| Mounting Dimensions (L x W): | 125 x 56 mm |
| Gross Weight: | 1.7 kg |
| Leadwire Length: | 300 mm |

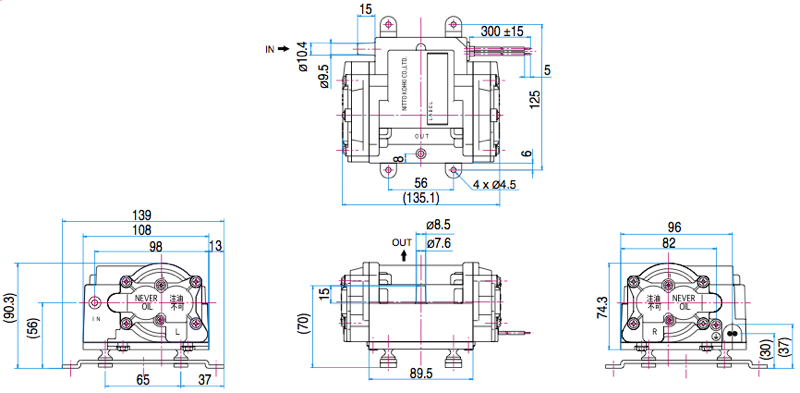

Dimension MEDO VC 0301B (Dual)
