Air Compressor MEDO VP 0140 Series
Specifications MEDO VP 0140 Series
| Air Compressor MEDO VP 0140 Series | |
|---|---|
| Attainable Vacuum: | -533 mbar |
| Free Air Displacement: | 3 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Power Consumption: | 15 W |
| 14 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 3.000 h |
| Inlet: | 6 mm O.D. hose nipple |
| Outlet: | 6 mm O.D. hose nipple |
| Duty Cycle: | 60 minutes |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |
| Mounting Dimensions (L x W): | 48 x 62 mm |
| Gross Weight: | 0.7 kg |
| Leadwire Length: | 200 mm |

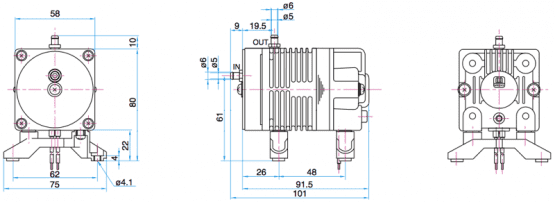

Dimensions MEDO VP 0140 Series
