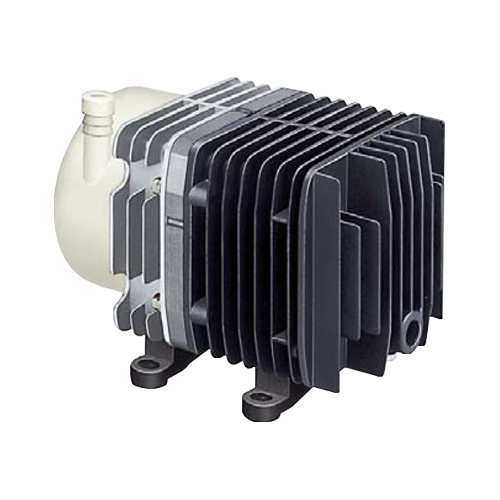

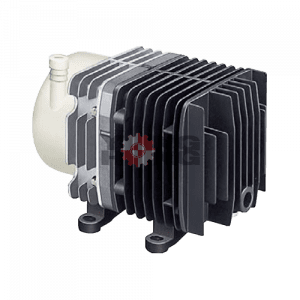

Air Compressor  MEDO VP 0645 Series

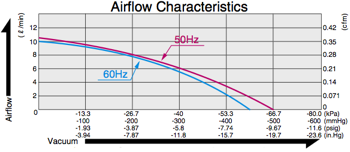

vp 0645 airflow 1

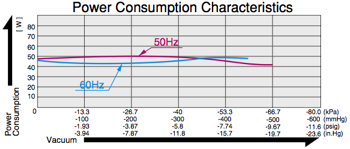

vp 0645 power 2



Specifications MEDO VP 0645 Series

Air Compressor MEDO VP 0645 Series
Attainable Vacuum: -600 mbar
Free Air Displacement: 10 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 50 W
48 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Inlet: 15mm O.D. hose nipple
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 3.2 kg
Leadwire Length: 200 mm

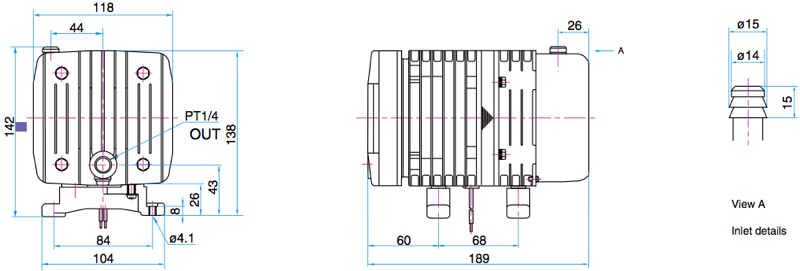

DimensionsMEDO VP 0645 Series



vp 0645 dimensions
