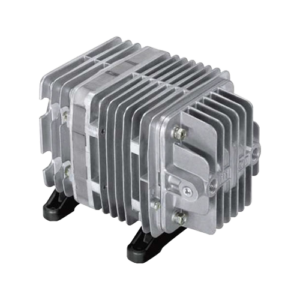

Air Compressor MEDO VP 0660 Series
Specifications MEDO VP 0660 Series
| Air Compressor MEDO VP 0660 Series | |
| Attainable Vacuum: | -800 mbar |
| Free Air Displacement: | 25 l/min |
| Rated Voltage: | 230 V |
| 120 V | |
| Power Consumption: | 80 W |
| 70 W | |
| Rated Frequency: | 50 Hz |
| 60 Hz | |
| Life Expectancy: | 6.000 h |
| Inlet: | ISO Rc 1/4 female threaded |
| Outlet: | ISO Rc 1/4 female threaded |
| Duty Cycle: | Continuous |
| Coil Insulation Class: | E or its equivalent (JETL) and B for UL-1450 |
| Mounting Dimensions (L x W): | 102 x 130 mm |
| Gross Weight: | 5.0 kg |
| Leadwire Length: | 300 mm or 600 mm |

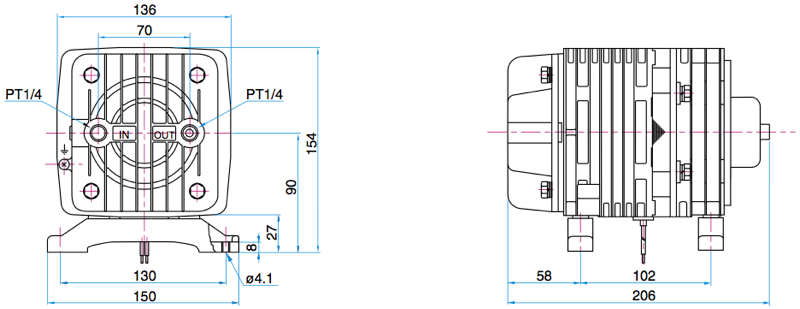

Dimensions MEDO VP 0660 Series
