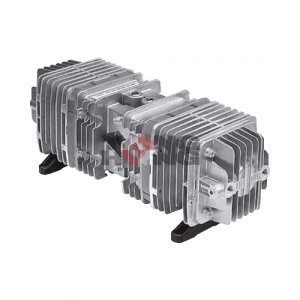

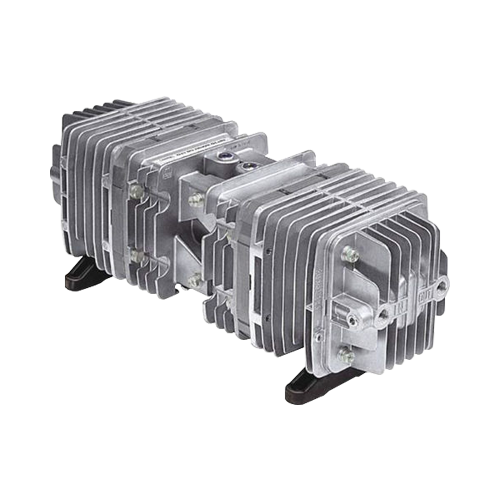

Air Compressor MEDO VP 0660×2 Series



Specifications MEDO VP 0660×2 Series

  Air Compressor MEDO VP 0660×2 Series
Attainable Vacuum: -933 mbar (series)
-800 mbar (parallel)
Free Air Displacement: 25 l/min (series)
50 l/min (parallel)
Rated Voltage: 230 V
120 V
Power Consumption: 125 W
100 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 6.000 h
Inlet: ISO Rc 1/4 female threaded; 2 ports
Outlet: ISO Rc 1/4 female threaded; 2 ports
Duty Cycle: Continuous
Coil Insulation Class: B or its equivalent (JETL)
Mounting Dimensions (L x W): 280 x 130 mm
Gross Weight: 10.0 kg
Leadwire Length: 150 mm

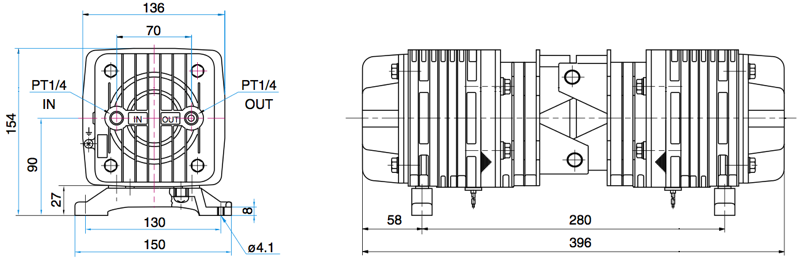

Dimensions MEDO VP 0660×2 Series
