tsurumi-RSR

Air Pump Tsurumi RSR Series

The RSR-KS-series rotary air blowers are equipped with a 3-lobe spur rotor.
This rotor, as the most important component of a blower, is designed for corrosion resistance, heat resistance and durability, in addition to low noise, low vibration, ease of maintenance and high efficiency, thus providing stable performance, and ensuring smooth operation of the blower over a long period of time.
The product lineup of the RSR-KS-series comprises air-cooled types (discharge bore diameter: 50 to 300 mm) and water-cooled types (discharge bore diameter: 80 to 350 mm) as standard models. Whether used under low pressure (0.6 kg/cm2 or less) or high pressure (0.6 to 0.8 kg/cm2), the appropriate model can be selected according to application

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Air Pump Tsurumi RSR Series

Tsurumi RSR Series RSR-50,RSR-65,RSR-80,RSR-100,RSR-125,RSR-150

Tsurumi’s RSR-KS series rotary air blowers are equipped with a 3-lobe spur rotor.
This rotor, as the most important component of a blower, is designed for corrosion resistance, heat resistance and durability, in addition to low noise, low vibration, ease of maintenance and high efficiency, thus providing stable performance, and ensuring smooth operation of the blower over a long period of time.

The product lineup of the RSR-KS series comprises air-cooled types (discharge bore diameter :50 to 300 mm) and water-cooled types (discharge bore diameter: 80 to 350 mm) as standard models. Whether used under low pressure (0.6 kg/cm2 or less) or high pressure (0.6 to 0.8 kg/cm2), the appropriate model can be selected according to application.
Use at 0.8 kg/cm2 or higher pressure is available as a special specification. In addition, blowers can be equipped with a helical rotor (discharge bore diameter: 80 to 250 mm).

The RSR-KS series is suited for various applications, such as for aeration at wastewater
treatment facilities, agitation of wastewater and sewage, decomposition and scum prevention, and oxygen supply at fish farms.

Tsurumi also offers other water treatment equipment besides blowers, including submersible
pumps, aerators, mixers, scum skimmers, bar screens and dehydrators. These products have
been tested and proven for many years in the field of water treatment, and can be supplied asa total package.

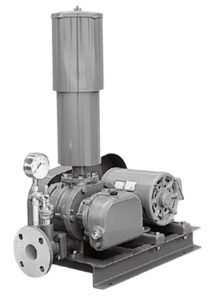

tsurumi-rsr-series-215x300



Tsurumi RSR Series Specifications

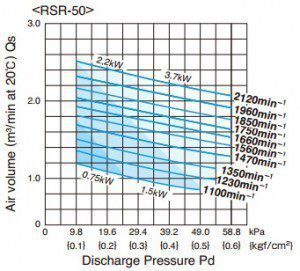

tsurumi-rsr-50-6

Specification Table A1

รุ่น ท่อทางออก(mm )

ความเร็ว(min-1)

ปริมาณลมดูดที่ 20℃(Qs, m3/min) และพลังงานที่ต้องการ (La, kW)

9.8kPa

14.7kPa

19.6kPa

24.5kPa

29.4kPa

{0.10kgf/cm2}

{0.15kgf/cm2}

{0.20kgf/cm2}

{0.25kgf/cm2}

{0.30kgf/cm2}

Qs

La

Qs

La

Qs

La

Qs

La

Qs

La
Tsurumi  RSR-50 (50) 1100 1.19 0.26 1.13 0.4 1.08 0.54 1.03 0.68 0.99 0.82
1230 1.36 0.36 1.3 0.51 1.25 0.66 1.2 0.81 1.16 0.96
1350 1.51 0.47 1.46 0.63 1.41 0.79 1.36 0.95 1.32 1.11
1470 1.68 0.63 1.63 0.79 1.59 0.95 1.54 1.11 1.5 1.28
1560 1.81 0.75 1.77 0.91 1.73 1.08 1.69 1.24 1.65 1.41
1660 1.93 0.8 1.89 0.98 1.85 1.16 1.81 1.33 1.77 1.51
1750 2.04 0.85 2 1.04 1.96 1.23 1.92 1.42 1.88 1.61
1850 2.17 0.99 2.13 1.18 2.09 1.37 2.05 1.57 2.01 1.76
1960 2.32 1.14 2.28 1.34 2.24 1.53 2.2 1.73 2.16 1.92
2120 2.52 1.41 2.47 1.62 2.42 1.82 2.38 2.03 2.33 2.23
Corresponding motor output 0.75kW 1.5kW



Specification Table A2

รุ่น ท่อทางออก(mm ) ความเร็ว(min-1) ปริมาณลมดูดที่ 20℃(Qs, m3/min) และพลังงานที่ต้องการ (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
Tsurumi  RSR-50 (50) 1100 0.95 0.96 0.92 1.1 0.89 1.24 0.86 1.38 − − − −
1230 1.12 1.11 1.08 1.26 1.05 1.41 1.02 1.56 0.99 1.71 − −
1350 1.28 1.27 1.24 1.43 1.2 1.59 1.17 1.75 1.13 1.91 − −
1470 1.46 1.44 1.43 1.6 1.39 1.76 1.35 1.93 1.32 2.09 1.29 2.26
1560 1.61 1.57 1.58 1.74 1.54 1.9 1.5 2.07 1.47 2.23 1.43 2.4
1660 1.73 1.69 1.69 1.87 1.65 2.05 1.61 2.23 1.58 2.4 1.54 2.58
1750 1.84 1.8 1.8 1.99 1.76 2.18 1.72 2.37 1.68 2.56 1.64 2.75
1850 1.97 1.95 1.93 2.14 1.89 2.34 1.85 2.53 1.81 2.71 1.77 2.91
1960 2.12 2.12 2.08 2.31 2.04 2.51 2 2.7 1.96 2.9 1.92 3.09
2120 2.29 2.44 2.24 2.64 2.2 2.85 2.16 3.05 2.12 3.26 2.08 3.46
Corresponding motor output 2.2kW 3.7kW



Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
Tsurumi RSR-50 230 130 120 890 185 179 560 410 100 – – 300 115 155 15 450 730 4 74

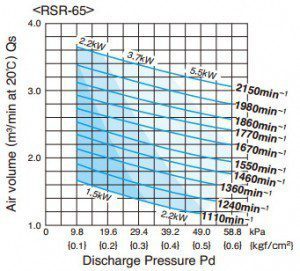

tsurumi-rsr-65-5

Specification Table A1

รุ่น ท่อทางออก(mm ) ความเร็ว(min-1) ปริมาณลมดูดที่ 20℃(Qs, m3/min) และพลังงานที่ต้องการ (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
Tsurumi  RSR-65 (65) 1110 1.67 0.63 1.58 0.8 1.5 0.97 1.43 1.14 1.37 1.31
1240 1.91 0.7 1.84 0.89 1.76 1.08 1.68 1.27 1.62 1.46
1360 2.14 0.8 2.07 1.01 2 1.22 1.93 1.43 1.87 1.64
1460 2.35 0.88 2.27 1.11 2.2 1.33 2.13 1.55 2.07 1.78
1550 2.54 0.96 2.46 1.2 2.39 1.43 2.32 1.67 2.25 1.9
1670 2.75 1.05 2.68 1.31 2.62 1.56 2.56 1.82 2.49 2.07
1770 2.94 1.13 2.88 1.4 2.82 1.67 2.76 1.94 2.7 2.21
1860 3.13 1.24 3.07 1.52 3 1.8 2.94 2.08 2.88 2.36
1980 3.39 1.38 3.32 1.68 3.25 1.98 3.18 2.28 3.12 2.57
2150 3.65 1.6 3.58 1.93 3.52 2.25 3.46 2.58 3.4 2.9
Corresponding motor output 1.5kW 2.2kW



Specification Table A2

รุ่น ท่อทางออก(mm ) ความเร็ว(min-1) ปริมาณลมดูดที่ 20℃(Qs, m3/min) และพลังงานที่ต้องการ (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
Tsurumi  RSR-65 (65) 1110 1.32 1.48 1.27 1.65 1.22 1.82 1.17 1.99 − − − −
1240 1.56 1.65 1.51 1.84 1.46 2.03 1.41 2.22 1.36 2.41 − −
1360 1.81 1.85 1.76 2.06 1.7 2.27 1.65 2.48 1.6 2.69 − −
1460 2.01 2 1.96 2.22 1.9 2.45 1.85 2.67 1.8 2.9 1.76 3.13
1550 2.19 2.14 2.14 2.37 2.08 2.61 2.03 2.84 1.98 3.08 1.94 3.31
1670 2.43 2.33 2.38 2.58 2.33 2.83 2.28 3.08 2.23 3.34 2.19 3.59
1770 2.64 2.48 2.59 2.75 2.54 3.02 2.49 3.29 2.45 3.56 2.41 3.83
1860 2.82 2.65 2.76 2.93 2.71 3.22 2.66 3.5 2.61 3.78 2.57 4.07
1980 3.06 2.87 3 3.18 2.94 3.48 2.89 3.78 2.84 4.08 2.8 4.38
2150 3.34 3.23 3.28 3.55 3.22 3.88 3.17 4.2 3.12 4.53 3.08 4.85
Corresponding motor output 3.7kW 5.5kW



Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions (1)

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
 RSR-65 230 130 130 965 205 202 600 450 100 – – 340 135 175 15 500 780 4 85

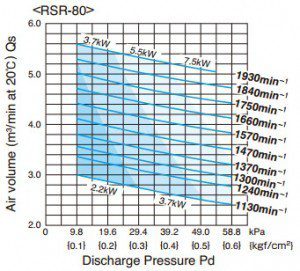

tsurumi-rsr-80-4

Specification Table A1

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
RSR-80 (80) 1130 2.99 0.77 2.93 1.1 2.86 1.43 2.8 1.76 2.73 2.09
1240 3.36 0.89 3.29 1.28 3.22 1.63 3.16 1.99 3.09 2.34
1300 3.56 1.03 3.49 1.4 3.42 1.77 3.36 2.14 3.29 2.5
1370 3.8 1.16 3.74 1.55 3.67 1.93 3.6 2.32 3.53 2.7
1470 4.12 1.3 4.04 1.72 3.97 2.13 3.9 2.55 3.83 2.96
1570 4.42 1.51 4.35 1.94 4.28 2.37 4.22 2.8 4.15 3.23
1660 4.72 1.69 4.65 2.14 4.58 2.59 4.52 3.04 4.45 3.49
1750 5.04 1.9 4.96 2.36 4.88 2.82 4.81 3.28 4.74 3.74
1840 5.31 2.07 5.24 2.56 5.17 3.05 5.11 3.54 5.07 4.03
1930 5.61 2.27 5.54 2.78 5.46 3.29 5.4 3.8 5.33 4.31
Corresponding motor output 2.2kW 3.7kW 5.5kW



Specification Table A2

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
RSR-80 (80) 1130 2.67 2.42 2.61 2.75 2.55 3.08 2.5 3.41 2.45 3.74 2.41 4.07
1240 3.03 2.7 2.97 3.05 2.92 3.41 2.86 3.76 2.81 4.12 2.76 4.47
1300 3.23 2.88 3.17 3.24 3.12 3.62 3.06 3.98 3.01 4.35 2.96 4.72
1370 3.47 3.09 3.41 3.47 3.36 3.86 3.3 4.24 3.25 4.63 3.2 5.01
1470 3.77 3.38 3.71 3.79 3.66 4.21 3.6 4.62 3.55 5.04 3.5 5.45
1570 4.1 3.66 4.04 4.09 3.99 4.52 3.93 4.95 3.89 5.38 3.84 5.81
1660 4.4 3.94 4.34 4.39 4.29 4.84 4.23 5.29 4.18 5.74 4.13 6.19
1750 4.69 4.2 4.63 4.66 4.58 5.12 4.52 5.58 4.48 6.04 4.44 6.5
1840 4.99 4.52 4.93 5.01 4.88 5.5 4.82 5.99 4.78 6.48 4.73 6.97
1930 5.28 4.82 5.22 5.33 5.17 5.84 5.11 6.35 5.06 6.86 − −
Corresponding motor output 5.5kW 7.5kW



Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions (3)

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
RSR-80 280 170 145 1125 220 225 650 500 100 – – 360 130 200 15 530 860 4 125

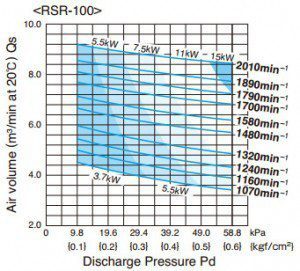

tsurumi-rsr-100-3

Specification Table A1

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
SR-100 (100) 1070 4.51 1.2 4.37 1.7 4.22 2.2 4.09 2.7 3.96 3.2
1160 5 1.42 4.85 1.95 4.69 2.49 4.56 3.03 4.43 3.56
1240 5.45 1.56 5.29 2.13 5.12 2.7 4.99 3.27 4.86 3.84
1320 5.97 1.64 5.82 2.27 5.66 2.89 5.54 3.52 5.41 4.14
1480 6.67 1.77 6.53 2.47 6.39 3.13 6.28 3.86 6.17 4.49
1580 7.14 1.92 7.01 2.66 6.88 3.37 6.77 4.13 6.66 4.83
1700 7.71 2.09 7.59 2.88 7.47 3.66 7.37 4.45 7.26 5.23
1790 8.12 2.24 8.01 3.12 7.9 3.89 7.8 4.71 7.7 5.53
1890 8.58 2.41 8.48 3.28 8.38 4.14 8.29 5.01 8.19 5.87
2010 9.19 2.56 9.09 3.49 9 4.41 8.91 5.34 8.82 6.26
Corresponding motor output 3.7kW 5.5kW 7.5kW



Specification Table A2

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
SR-100 (100) 1070 3.83 3.7 3.75 4.2 3.67 4.7 3.58 5.2 3.5 5.7 3.42 6.2
1160 4.33 4.1 4.23 4.64 4.15 5.17 4.06 5.71 3.98 6.25 3.9 6.78
1240 4.76 4.41 4.66 4.98 4.57 5.55 4.48 6.12 4.4 6.69 4.32 7.26
1320 5.31 4.77 5.21 5.39 5.12 6.02 5.02 6.64 4.94 7.27 4.86 7.89
1480 6.08 5.25 5.99 5.85 5.92 6.64 5.84 7.21 5.77 8.03 5.7 8.57
1580 6.58 5.6 6.49 6.28 6.42 7.07 6.34 7.74 6.27 8.54 6.2 9.19
1700 7.19 6.02 7.11 6.8 7.03 7.59 6.94 8.37 6.88 9.16 6.82 9.93
1790 7.63 6.36 7.55 7.13 7.48 8 7.4 8.82 7.33 9.65 7.26 10.46
1890 8.12 6.74 8.05 7.6 7.98 8.47 7.9 9.33 7.83 10.2 7.76 11.06
2010 8.76 7.19 8.7 8.11 8.64 9.04 8.58 9.96 8.53 10.89 8.47 11.81
Corresponding motor output 7.5kW 11kW 15kW

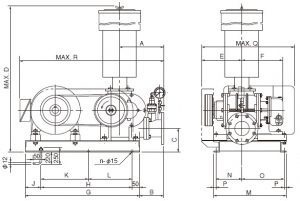

Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions (4)

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
RSR-100 280 155 155 1250 260 265 730 580 100 – – 470 170 270 15 600 930 4 155

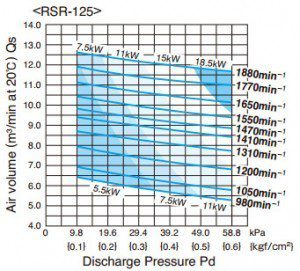

tsurumi-rsr-125-2

Specification Table A1

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
RSR-125 (125) 980 6.41 1.8 6.26 2.46 6.12 3.12 5.98 3.78 5.86 4.44
1050 6.93 2.1 6.77 2.79 6.63 3.48 6.5 4.17 6.37 4.86
1200 7.94 2.7 7.79 3.48 7.65 4.25 7.53 5.03 7.4 5.8
1310 8.7 3.1 8.58 3.95 8.47 4.8 8.37 5.65 8.27 6.5
1410 9.4 3.39 9.28 4.31 9.17 5.22 9.06 6.13 8.96 7.04
1470 9.83 3.69 9.71 4.64 9.6 5.59 9.5 6.53 9.4 7.48
1550 10.44 3.9 10.31 4.9 10.19 5.9 10.07 6.9 9.96 7.9
1650 11.13 4.4 11 5.48 10.87 6.56 10.76 7.64 10.65 8.72
1770 11.92 4.9 11.79 6.02 11.68 7.14 11.57 8.26 11.47 9.38
1880 12.63 5.4 12.5 6.58 12.39 7.76 12.28 8.94 12.18 10.12
Corresponding motor output 5.5kW 7.5kW 11kW



Specification Table A2

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
RSR-125 (125) 980 5.74 5.1 5.63 5.76 5.52 6.42 5.43 7.08 5.34 7.74 5.26 8.4
1050 6.25 5.55 6.14 6.24 6.04 6.93 5.94 7.62 5.86 8.31 5.78 9
1200 7.29 6.58 7.18 7.35 7.07 8.13 6.98 8.9 6.89 9.68 6.81 10.45
1310 8.17 7.35 8.07 8.2 7.98 9.05 7.89 9.9 7.81 10.75 7.73 11.6
1410 8.86 7.95 8.76 8.86 8.67 9.77 8.58 10.68 8.5 11.59 8.42 12.5
1470 9.3 8.42 9.21 9.36 9.12 10.31 9.03 11.25 8.95 12.19 8.88 13.14
1550 9.86 8.9 9.76 9.9 9.67 10.9 9.58 11.9 9.5 12.9 9.43 13.9
1650 10.55 9.8 10.45 10.88 10.36 11.96 10.28 13.04 10.2 14.12 10.14 15.2
1770 11.37 10.5 11.28 11.62 11.2 12.74 11.13 13.86 11.06 14.98 11 16.1
1880 12.08 11.3 11.99 12.48 11.91 13.66 11.83 14.84 11.76 16.02 11.7 17.2
Corresponding motor output 11kW 15kW 18.5kW



Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions (5)

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
RSR-125 355 205 190 1510 295 294 860 700 100 350 350 480 185 255 20 710 1230 6 260

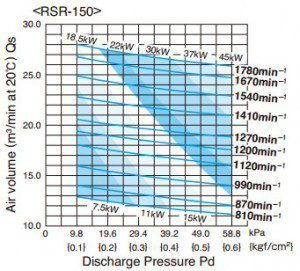

tsurumi-rsr-150-1

Specification Table A1

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
Tsurumi RSR-150 (150) 810 12.9 2.91 12.65 3.75 12.42 4.59 12.21 5.54 12.02 7.5
870 14.13 3.13 13.84 4.51 13.58 5.9 13.33 7.12 13.1 8.67
990 15.92 3.34 15.67 4.9 15.44 6.46 15.22 8.02 15.01 9.58
1120 18.03 5.38 17.77 7.1 17.53 8.81 17.3 10.53 17.08 12.24
1200 19.39 6.32 19.14 8.06 18.91 9.8 18.69 11.53 18.49 13.27
1270 20.58 7.14 20.35 8.9 20.13 10.66 19.92 12.42 19.73 14.18
1410 22.81 9.01 22.57 11.01 22.35 13.01 22.14 15.01 21.94 17.01
1540 24.89 10.99 24.63 13.11 24.4 15.23 24.17 17.35 23.95 19.47
1670 26.84 12.71 26.57 14.96 26.32 17.21 26.08 19.46 25.85 21.71
1780 28.06 14.19 27.79 16.61 27.53 19.02 27.28 21.44 27.05 23.85
Corresponding motor output 7.5kW 11kW 15kW 18.5kW



Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
9.8kPa 14.7kPa 19.6kPa 24.5kPa 29.4kPa
{0.10kgf/cm2} {0.15kgf/cm2} {0.20kgf/cm2} {0.25kgf/cm2} {0.30kgf/cm2}
Qs La Qs La Qs La Qs La Qs La
RSR-150 (150) 810 12.9 2.91 12.65 3.75 12.42 4.59 12.21 5.54 12.02 7.5
870 14.13 3.13 13.84 4.51 13.58 5.9 13.33 7.12 13.1 8.67
990 15.92 3.34 15.67 4.9 15.44 6.46 15.22 8.02 15.01 9.58
1120 18.03 5.38 17.77 7.1 17.53 8.81 17.3 10.53 17.08 12.24
1200 19.39 6.32 19.14 8.06 18.91 9.8 18.69 11.53 18.49 13.27
1270 20.58 7.14 20.35 8.9 20.13 10.66 19.92 12.42 19.73 14.18
1410 22.81 9.01 22.57 11.01 22.35 13.01 22.14 15.01 21.94 17.01
1540 24.89 10.99 24.63 13.11 24.4 15.23 24.17 17.35 23.95 19.47
1670 26.84 12.71 26.57 14.96 26.32 17.21 26.08 19.46 25.85 21.71
1780 28.06 14.19 27.79 16.61 27.53 19.02 27.28 21.44 27.05 23.85
Corresponding motor output 7.5kW 11kW 15kW 18.5kW



Specification Table A2

Model Dischargebore(mm ) Speed(min-1) Suction air volume at 20℃(Qs, m3/min) and required power (La, kW)
34.3kPa 39.2kPa 44.1kPa 49.0kPa 53.9kPa 58.8kPa
{0.35kgf/cm2} {0.40kgf/cm2} {0.45kgf/cm2} {0.50kgf/cm2} {0.55kgf/cm2} {0.60kgf/cm2}
Qs La Qs La Qs La Qs La Qs La Qs La
RSR-150 (150) 810 11.85 8.89 11.69 10.27 11.53 11.6 11.38 12.93 11.25 14.06 11.14 15.19
870 12.89 10.05 12.69 11.43 12.51 12.82 12.34 14.2 12.19 15.59 12.05 16.97
990 14.81 11.14 14.63 12.7 14.46 14.26 14.3 15.82 14.15 17.38 14.02 18.94
1120 16.87 13.96 16.68 15.67 16.5 17.39 16.33 19.1 16.17 20.82 16.03 22.53
1200 18.29 15.01 18.12 16.75 17.95 18.49 17.79 20.23 17.65 21.97 17.52 23.71
1270 19.55 15.94 19.38 17.7 19.22 19.46 19.08 21.22 18.95 22.98 18.83 24.74
1410 21.75 19.01 21.58 21.01 21.42 23.01 21.27 25.01 21.13 27.01 21.01 29.01
1540 23.75 21.59 23.56 23.71 23.39 25.83 23.22 27.95 23.08 30.07 22.94 32.19
1670 25.63 23.96 25.43 26.21 25.24 28.46 25.06 30.71 24.91 32.96 24.76 35.21
1780 26.83 26.27 26.62 28.68 26.42 31.1 26.24 33.51 26.07 35.93 25.91 38.34
Corresponding motor output 18.5kW 22kW 30kW 37kW 45kW



Tsurumi RSR Series Dimensions



tsurumi-rsr-series-dimensions (6)

Model A B C D E F G H J K L M N O P Q R n Weight (kg)
RSR-150 400 235 210 1730 380 377 960 750 160 400 350 590 255 295 20 820 1335 6 400



Related products

ขอใบเสนอราคา/Request a quote

  • Hidden
