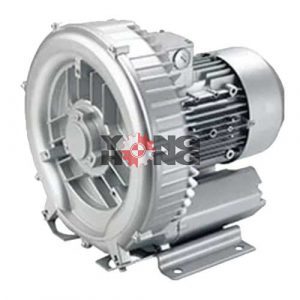

Ring Blower HITACHI G Series

Ring Blower HITACHI G Series a high-pressure fan can both suction and blow air simultaneously. It is suitable for various applications such as aerating fish ponds, shrimp ponds, wastewater treatment, pneumatic material conveying, and medical applications, among others.

Facebook
Twitter
Email
Print

Ring Blower HITACHI G Series

Model Phase Voltage Poles Max capacity
50/60 Hz
 VB-70WS-G 1 220 2 0.45 / 0.5
 VB-001WS-G 1 220 2 0.6 / 0.7
 VB-002WS-G 1 220 2 0.7 / 0.8
 VB-003WS-G 1 220 2 1.0 / 1.15
 VB-004WS-G 1 220 2 1.1 / 1.3
 VB-007WS-G 1 220 2 2.0 / 2.4
 VB-70W-G 3 380 2 0.45 / 0.5
 VB-001-G 3 220/380 2 0.6 / 0.7
 VB-002-G 3 220/380 2 0.7 / 0.8
 VB-003-G 3 220/380 2 1.0 / 1.15
 VB-004-G2 3 220/380 2 1.3 / 1.3
 VB-007-G2 3 220/380 2 2.6 / 2.4
 VB-015-G2 3 220/380 2 3.3 / 4.0
 VB-022-G2 3 220/380 2 4.1 / 4.8
