Ring Blower Sanco SC Series

Name: Ring Blower Sanco SC Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: SANCO

Sanco SC Series blower – air blower (Ring Blower) for use in industry. Casing and impeller made of aluminum (except the SC80) strong buy various models for both Single-phase and three-phase motors ranging from 0.22 to 8.60 kW The Blower at a frequency of 50 – 60 Hz voltage max. since +65 – +450 mbar and the Vacuum from -60 – -350 mbar.

Category AIR PUMP Tags air blower, ring blower, sanco, กลุ่มระบบบำบัดน้ำเสีย, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, กลุ่มอาคารนิติบุคคล, มอเตอร์โบลเวอร์, ระบบเติมอากาศ, ริงโบลเวอร์, อุปกรณ์เติมอากาศ, อุปกรณ์เติมอากาศ, เครื่องดูด-เป่าอากาศ

Ring Blower SANCO SC Series

Sanco SC Series Reganair Regenerative Blowers SC20-512,SC30-512,SC40-512,SC40-612,SC50-512,SC20-522,SC30-522,SC40-422,SC40-522,SC40-622,SC50-522,SC50-622,SC60-522,SC60-622,SC60-722,SC80-4B2,SC80-5B2,SC80-6B2

Using

Ring Blower Commonly used in industrial plants Aeration in various systems Various conveying work. The vacuum system is suitable for applications that focus on the need for high air volume. Can use both suction and blowing

System operation

Motor rotation
Impeller rotates according to the motor
Regenerative sweeping, resulting in continuous suction and airflow

Product highlights

With Thermal Protection: the device turns off when the device has accumulated heat above the standard
Standard Electrical Insulation Class: F (can withstand temperature 155 degrees)
IP55: waterproof and dustproof standard

Sanco SC Series Ring Blower Specifications

Specifications Blowers with 50 Hz – 60 Hz

Model	Phase	Voltage	Hz	Rated Output	Rated Current	Max. Pressure	Max. Airflow	Noise Level*
Model	Phase	Voltage	Hz	KW	Amps	mbar	m/h	dB (A)
SC20-512	Single	100-120/200-240	50 Hz	0.22	2.2-2.3/1.15-1.18	65	52	64
SC20-512			60 Hz	0.28	3.4-3/1.73-1.6	85	66	65
SC30-512			50 Hz	0.38	3.7-3.6/1.81-1.79	100	75	69
SC30-512			60 Hz	0.42	5.5-4.7/2.8-2.36	140	96	68
SC40-512			50 Hz	0.8	11.5-12.8/8.2-6.5	160	144	69
SC40-512			60 Hz	0.9	16.4-12.8/8.2-6.5	160	180	72
SC40-612			50 Hz	1.1	15-14.6/7.5-7.4	190	144	69
SC40-612			60 Hz	1.3	17.7-13.9/8.7-7	210	180	72
SC50-512			50 Hz	1.5	20-17.7/9.5-8.9	200	210	73
SC50-512			60 Hz	1.75	22.3-17.3/10.7-8.3	170	250	64
SC20-522	Three△-Y	200-240/380-440	50 Hz	0.22	0.75-0.84/0.44-0.51	65	52	65
SC20-522			60 Hz	0.28	1.0-0.93/0.55-0.53	85	66	69
SC30-522			50 Hz	0.38	1.72-2.41/1.1-1.56	100	75	68
SC30-522			60 Hz	0.42	1.93-1.93/1.08-1.18	140	96	69
SC40-422			50 Hz	0.76	3.6-4.85/2.2-3.23	140	144	72
SC40-422			60 Hz	0.93	4.1-3.64/2.1-2.44	135	180	69
SC40-522			50 Hz	0.9	4.3-4.8/2.53-3.25	180	144	72
SC40-522			60 Hz	1.15	5-4.45/2.63-2.53	180	180	69
SC40-622			50 Hz	1.1	4.8-5.53/2.8-3.7	200	144	72
SC40-622			60 Hz	1.5	6.2-5.3/3.3-3.1	230	180	69
SC50-522			50 Hz	1.5	7.44-8.76/4.36-6	220	210	72
SC50-522			60 Hz	1.75	8.2-7.3/4.38-4.27	200	250	73
SC50-622			50 Hz	2.2	8.67-9.45/4.95-6.24	270	210	72
SC50-622			60 Hz	2.55	10-8.8/5.3-4.84	270	250	73
SC60-522			50 Hz	2.2	10.8-10.9/5.8-6.7	220	306	76
SC60-522			60 Hz	2.55	11.7-10.3/6.4-6	200	370	78
SC60-622			50 Hz	3	13.1-13.6/7.3-8.5	280	306	76
SC60-622			60 Hz	3.45	15.7-13.4/8-7.4	270	370	78
SC60-722			50 Hz	4	14.7-4.8/8.2-9	340	306	76
SC60-722			60 Hz	4.6	18.7-15.4/9.5-8.6	330	370	78
SC80-4B2		200-240/345-416 (50Hz)208-275/380-480 (60Hz)	50 Hz	4	17.3-16.5/10-9.3	230	510	73
SC80-4B2			60 Hz	4.6	22.8-17.8/12.6-12.3	230	600	79
SC80-5B2			50 Hz	5.5	21.8-21.7/12.6-12.3	300	510	73
SC80-5B2			60 Hz	6.3	26.1-21.8/14.1-12.4	280	600	79
SC80-6B2			50 Hz	7.5	28.1-30.9/16-17.4	400	510	73
SC80-6B2			60 Hz	8.6	36.4-32.6/20.5-18.8	450	600	79

Specifications Vacuum with 50 Hz – 60 Hz

Model	Phase	Voltage	Hz	Rated Output	Rated Current	Max. Pressure	Max. Airflow	Noise Level*
Model	Phase	Voltage	Hz	KW	Amps	mbar	m/h	dB (A)
SC20-512	Single	100-120/200-240	50 Hz	0.22	2.19-2.27/1.13-1.17	-60	58	64
SC20-512			60 Hz	0.28	3.23-2.97/1.68-1.58	-78	66	65
SC30-512			50 Hz	0.38	3.54-3.48/1.79-1.74	-92	74	69
SC30-512			60 Hz	0.42	5.1-4.34/2.58-2.21	-125	90	68
SC40-512			50 Hz	0.8	11.97-12.68/5.98-6.42	-150	144	69
SC40-512			60 Hz	0.9	15.81-12.35/7.69-6.28	-160	170	72
SC40-612			50 Hz	1.1	13.52-13.97/6.7-7.07	-170	144	69
SC40-612			60 Hz	1.3	17.41-13.6/8.42-6.84	-190	170	72
SC50-512			50 Hz	1.5	17.7-16.7/10.3-8.3	-185	200	73
SC50-512			60 Hz	1.75	22.4-17.4/10.3-8.3	-180	230	64
SC20-522	Three△-Y	200-240/380-440	50 Hz	0.22	0.76-0.84/0.43-0.51	-60	58	65
SC20-522			60 Hz	0.28	1.0-0.9/0.53-0.52	-78	66	69
SC30-522			50 Hz	0.38	1.72-2.42/1.12-1.59	-92	74	68
SC30-522			60 Hz	0.42	1.83-1.95/1.06-1.17	-125	90	69
SC40-422			50 Hz	0.76	3.51-4.78/2.13-3.18	-140	144	72
SC40-422			60 Hz	0.93	3.97-3.53/2.08-2.11	-135	170	69
SC40-522			50 Hz	0.9	4-4.66/2.4-3.2	-170	144	72
SC40-522			60 Hz	1.15	4.75-4.3/2.61-2.55	-180	170	69
SC40-622			50 Hz	1.1	4.5-5.35/2.65-3.6	-180	144	72
SC40-622			60 Hz	1.5	5.66-5/3-2.91	-210	170	69
SC50-522			50 Hz	1.5	6.72-8.52/4.07-5.94	-210	210	72
SC50-522			60 Hz	1.75	7.4-6.77/4-3.99	-200	230	73
SC50-622			50 Hz	2.2	7.08-8.79/4.2-6.06	-220	210	72
SC50-622			60 Hz	2.55	8.55-7.7/4.6-4.45	-240	230	73
SC60-522			50 Hz	2.2	10.1-10.5/5.5-6.5	-230	306	76
SC60-522			60 Hz	2.55	11.6-99/6-5.6	-220	370	78
SC60-622			50 Hz	3	11.1-12.4/6.3-8	-250	306	76
SC60-622			60 Hz	3.45	13.7-12/7.1-6.7	-270	370	78
SC60-722			50 Hz	4	11.5-12.5/6.7-8.1	-270	306	76
SC60-722			60 Hz	4.6	15.9-13.3/8.2-7.6	-320	370	78
SC80-4B2		200-240/345-416 (50Hz)208-275/380-480 (60Hz)	50 Hz	4	17.1-16.3/10-9.2	-240	510	73
SC80-4B2			60 Hz	4.6	22.8-17.6/12.5-10.1	-250	600	79
SC80-5B2			50 Hz	5.5	18.8-19.8/10.8-11	-270	510	73
SC80-5B2			60 Hz	6.3	25.5-21.7/13.7-12.3	-310	600	79
SC80-6B2			50 Hz	7.5	18-26.5/11.8-14.9	-300	510	73
SC80-6B2			60 Hz	8.6	25.3-26/14.6-14.3	-350	600	79

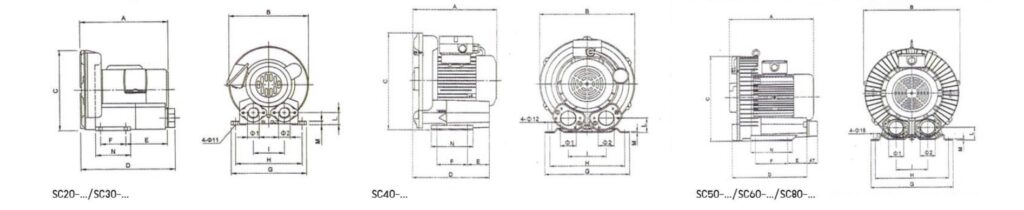

ริงโบลเวอร์ SANCO SC Series Dimensions

Model	A	B	C	D	E	F	G	H	I	L	M	N	ø1	ø2	Weight Kgs
SC20-5..	255	228	238	240	87	79	212	190	90	34	12	100	G 1″	G 1″	10
SC30-5..	256	250	257	279	117	83	230	205	100	38	12	110	G 1″ 1/4	G 1″ 1/4	13
SC40-4..	261	286	303	238	68	95	255	225	115	46	3	130	G 1″ 1/2	G 1″ 1/2	15.5
SC40-5..	261	286	303	238	68	95	255	255	115	46	3	130	G 1″ 1/2	G 1″ 1/2	16
SC40-6..	281	286	303	238	68	95	255	255	115	46	3	130	G 1″ 1/2	G 1″ 1/2	18.2
SC50-5..	317	333	345	389	143	115	296	260	120	48	4	155	G 2″	G 2″	23.5
SC50-6..	317	333	345	389	143	116	296	260	120	48	4	155	G 2″	G 2″	26
SC60-5..	364	382	383	426	129	140	325	290	125	53	4.5	180	G 2″	G 2″	36
SC60-6..	364	382	383	426	129	140	325	290	125	53	4.5	180	G 2″	G 2″	37.3
SC60-7..	394	382	383	426	129	140	325	290	125	53	4.5	180	G 2″	G 2″	41.5
SC80-5..	479	466	498	477	179	280	420	365	145	81	24	318	G 2 1/2″	G 2 1/2″	120
SC80-6..	479	466	498	477	179	280	420	365	145	81	24	318	G 2 1/2″	G 2 1/2″	123
SC80-4..	479	466	498	477	179	280	420	365	145	81	24	318	G 2 1/2″	G 2 1/2″	117
