The Tsurumi FSP Series is a sludge scrubber that floats above the surface. By combining with a jet sprayer Can guarantee that the suction rate is stable even if water, air and various materials The floats will be sucked from the water all the time. And can be connected to a 50 mm. Pipeline, able to effectively remove dirty sediment and liquid above the water surface.
TSURUMI FSP Series 4-FSP2,8-FSP3

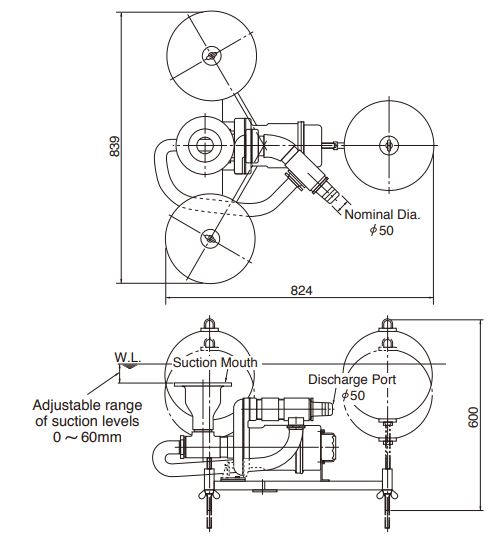

The FSP-series is a floating scum skimmer designed for the collection of floating scum in the wastewater treatment. It consists of a submersible pump, jet-injector mechanism, and three floats. The jet-injector mechanism ensures stable suction operation even if water, air and scum are drawn simultaneously. As it is a floating type, the suction mouth can keep its relative position with the water surface, which prevents operation failure due to changes in the water level. The suction mouth can be adjusted to a depth between 0 to 60mm, so that the skimmer can efficiently suck scum with minimal amount of water. Adjustment of the depth can be done by turning the floats to right or left.
TSURUMI FSP Series TSURUMI 4-FSP2,TSURUMI 8-FSP3
| Discharge Bore | Model | Motor Output | Phase | Starting Method | Solids Passage |
|---|---|---|---|---|---|
| (mm) | (kW) | (mm) | |||
| 50 | TSURUMI 4-FSP2 | 0.4 | 3-phase | D.O.L. | 16 |
| 50 | TSURUMI 8-FSP3 | 0.75 | 3-phase | D.O.L. | 22 |
