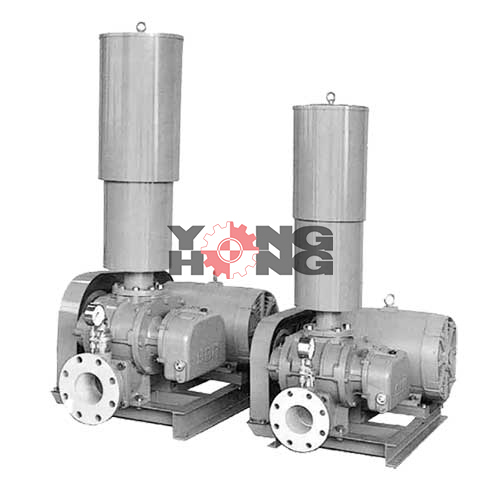

Three Lobe blower TAIKO TSS-SERIES
SPECIFICATIONS DATA SSR 50-80
Table 1
| MODEL | BORE | SPEED | DISCHARGE PRESSURE | |||||||||
| 9.8 | 14.7 | 19.6 | 24.5 | 29.4 | ||||||||
| min-1 | 0.10 kgf/cm | 0.15kgf/cm | 0.2 kgf/cm | 0.25 kgf/cm | 0.3 kgf/cm | |||||||
| Q | L | Q | L | Q | L | Q | L | Q | L | |||
| SSR 50 | 2B (50A) | 1100 | 1.19 | 0.26 | 1.13 | 0.4 | 1.08 | 0.54 | 1.03 | 0.68 | 0.99 | 0.82 |
| 1230 | 1.36 | 0.36 | 1.3 | 0.51 | 1.25 | 0.66 | 1.2 | 0.81 | 1.16 | 0.96 | ||
| 1350 | 1.51 | 0.47 | 1.46 | 0.63 | 1.41 | 0.79 | 1.36 | 0.95 | 1.32 | 1.11 | ||
| 1470 | 1.68 | 0.63 | 1.63 | 0.79 | 1.59 | 0.95 | 1.54 | 1.11 | 1.5 | 1.28 | ||
| 1560 | 1.81 | 0.75 | 1.77 | 0.91 | 1.73 | 1.08 | 1.69 | 1.24 | 1.65 | 1.41 | ||
| 1660 | 1.93 | 0.8 | 1.89 | 0.98 | 1.85 | 1.16 | 1.81 | 1.33 | 1.77 | 1.51 | ||
| 1750 | 2.04 | 0.85 | 2 | 1.04 | 1.96 | 1.23 | 1.92 | 1.42 | 1.88 | 1.61 | ||
| 1850 | 2.17 | 0.99 | 2.13 | 1.18 | 2.09 | 1.37 | 2.05 | 1.57 | 2.01 | 1.76 | ||
| 1960 | 2.32 | 1.14 | 2.28 | 1.34 | 2.24 | 1.53 | 2.2 | 1.73 | 2.16 | 1.92 | ||
| 2120 | 2.52 | 1.41 | 2.47 | 1.62 | 2.42 | 1.82 | 2.38 | 2.03 | 2.33 | 2.23 | ||
| SSR 65 | 2 1/2 B (65A) | 1110 | 1.67 | 0.63 | 1.58 | 0.8 | 1.5 | 0.97 | 1.43 | 1.14 | 1.37 | 1.31 |
| 1240 | 1.91 | 0.7 | 1.84 | 0.89 | 1.76 | 1.08 | 1.68 | 1.27 | 1.62 | 1.46 | ||
| 1360 | 2.14 | 0.8 | 2.07 | 1.01 | 2 | 1.22 | 1.93 | 1.43 | 1.87 | 1.64 | ||
| 1460 | 2.5 | 0.88 | 2.27 | 1.11 | 2.2 | 1.33 | 2.13 | 1.55 | 2.07 | 1.78 | ||
| 1550 | 2.54 | 0.96 | 2.46 | 1.2 | 2.39 | 1.43 | 2.32 | 1.67 | 2.26 | 1.9 | ||
| 1670 | 2.75 | 1.05 | 2.68 | 1.31 | 2.62 | 1.56 | 2.56 | 1.82 | 2.49 | 2.07 | ||
| 1770 | 2.94 | 1.13 | 2.88 | 1.4 | 2.82 | 1.67 | 2.76 | 1.94 | 2.7 | 2.21 | ||
| 1860 | 3.13 | 1.24 | 3.07 | 1.52 | 3 | 1.8 | 2.94 | 2.08 | 2.88 | 2.36 | ||
| 1980 | 3.39 | 1.38 | 3.32 | 1.68 | 3.25 | 1.98 | 3.18 | 2.28 | 3.12 | 2.57 | ||
| 2150 | 3.65 | 1.6 | 3.58 | 1.93 | 3.52 | 2.25 | 3.46 | 2.58 | 3.4 | 2.9 | ||
| SSR 80 | 3B (80A) | 1130 | 2.99 | 0.77 | 2.93 | 1.1 | 2.86 | 1.43 | 2.8 | 1.76 | 2.73 | 2.09 |
| 1240 | 3.36 | 0.89 | 3.29 | 1.28 | 3.22 | 1.63 | 3.16 | 1.99 | 3.09 | 2.34 | ||
| 1300 | 3.56 | 1.03 | 3.49 | 1.4 | 3.42 | 1.77 | 3.36 | 2.14 | 3.29 | 2.5 | ||
| 1370 | 3.8 | 1.16 | 3.74 | 1.55 | 3.67 | 1.93 | 3.6 | 2.32 | 3.53 | 2.7 | ||
| 1470 | 4.12 | 1.3 | 4.04 | 1.72 | 3.97 | 2.13 | 3.9 | 2.55 | 3.83 | 2.96 | ||
| 1570 | 4.42 | 1.51 | 4.35 | 1.94 | 4.28 | 2.37 | 4.22 | 2.8 | 4.15 | 3.23 | ||
| 1660 | 4.72 | 1.69 | 4.65 | 2.14 | 4.58 | 2.59 | 4.52 | 3.04 | 4.45 | 3.49 | ||
| 1750 | 5.04 | 1.9 | 4.96 | 2.36 | 4.88 | 2.82 | 4.81 | 3.28 | 4.74 | 3.74 | ||
| 1840 | 5.31 | 2.07 | 5.24 | 2.56 | 5.17 | 3.05 | 5.11 | 3.51 | 5.04 | 5.04 | ||
| 1930 | 5.61 | 2.27 | 5.54 | 2.78 | 5.46 | 3.29 | 5.4 | 3.8 | 5.33 | 5.33 | ||
SPECIFICATIONS DATA SSR 50-80
Table 2
| MODEL | BORE | DISCHARGE PRESSURE | |||||||||||
| 34.3 | 39.2 | 44.1 | 49 | 53.9 | 58.8 | ||||||||
| 0.35 kgf/cm | 0.4 kgf/cm | 0.45kgf/cm | 0.5 kgf/cm | 0.55 kgf/cm | 0.6 kgf/cm | ||||||||
| Q | L | Q | L | Q | L | Q | L | Q | L | Q | L | ||
| SSR 50 | 2B (50A) | 0.95 | 0.96 | 0.92 | 1.1 | 0.89 | 1.24 | 0.86 | 1.38 | ||||
| 1.12 | 1.11 | 1.08 | 1.26 | 1.05 | 1.41 | 1.02 | 1.56 | 0.99 | 1.71 | ||||
| 1.28 | 1.27 | 1.24 | 1.43 | 1.2 | 1.59 | 1.17 | 1.75 | 1.13 | 1.91 | ||||
| 1.46 | 1.44 | 1.43 | 1.6 | 1.39 | 1.76 | 1.35 | 7.93 | 1.32 | 2.09 | 1.29 | 2.26 | ||
| 1.61 | 1.57 | 1.58 | 1.74 | 1.54 | 1.9 | 1.5 | 2.07 | 1.47 | 2.23 | 1.43 | 2.4 | ||
| 1.73 | 1.69 | 1.69 | 1.87 | 1.65 | 2.05 | 1.61 | 2.23 | 1.58 | 2.4 | 1.54 | 2.58 | ||
| 1.84 | 1.8 | 1.8 | 1.99 | 1.76 | 2.18 | 1.72 | 2.37 | 1.68 | 2.56 | 1.64 | 2.75 | ||
| 1.97 | 195 | 1.93 | 0.14 | 1.89 | 2.34 | 1.85 | 2.53 | 1.81 | 2.71 | 1.77 | 2.91 | ||
| 2.12 | 2.12 | 2.08 | 2.31 | 2.04 | 2.51 | 2 | 2.7 | 1.96 | 2.9 | 1.92 | 3.09 | ||
| 2.29 | 2.44 | 2.24 | 2.64 | 2.2 | 2.85 | 2.16 | 3.05 | 2.12 | 3.26 | 2.08 | 3.46 | ||
| SSR 65 | 2 1/2 B (65A) | 1.32 | 1.48 | 1.27 | 1.65 | 1.22 | 1.82 | 1.17 | 1.99 | ||||
| 1.56 | 1.65 | 1.51 | 1.84 | 1.46 | 2.03 | 1.41 | 2.22 | 1.36 | 2.41 | ||||
| 1.81 | 1.85 | 1.76 | 2.06 | 1.7 | 2.27 | 165 | 2.48 | 1.6 | 2.69 | ||||
| 2.01 | 2 | 1.96 | 2.22 | 1.9 | 2.45 | 1.85 | 2.67 | 1.8 | 2.9 | 1.76 | 3.13 | ||
| 2.19 | 2.14 | 2.14 | 2.37 | 2.08 | 2.61 | 2.03 | 2.84 | 1.98 | 3.08 | 1.94 | 3.31 | ||
| 2.43 | 2.33 | 2.38 | 2.58 | 2.33 | 2.83 | 2.28 | 3.08 | 2.23 | 3.34 | 2.19 | 3.59 | ||
| 2.64 | 2.48 | 2.59 | 2.75 | 2.54 | 3.02 | 2.49 | 3.29 | 2.45 | 3.56 | 2.41 | 3.83 | ||
| 2.82 | 265 | 2.76 | 2.93 | 2.71 | 3.22 | 2.66 | 3.5 | 2.61 | 3.78 | 2.57 | 4.07 | ||
| 3.06 | 2.87 | 3 | 3.18 | 2.94 | 3.48 | 2.89 | 3.78 | 2.84 | 4.08 | 2.8 | 4.38 | ||
| 3.34 | 3.23 | 3.28 | 3.55 | 3.22 | 3.88 | 3.17 | 4.2 | 3.12 | 4.53 | 3.08 | 4.85 | ||
| SSR 80 | 3B (80A) | 3.67 | 2.42 | 2.61 | 2.75 | 2.55 | 3.08 | 2.5 | 3.41 | 2.45 | 3.74 | 2.41 | 4.07 |
| 3.03 | 2.7 | 2.97 | 3.05 | 2.92 | 3.41 | 2.86 | 3.76 | 2.81 | 4.12 | 2.76 | 4.47 | ||
| 3.23 | 2.88 | 3.17 | 3.24 | 3.12 | 3.62 | 306 | 3.98 | 3.01 | 4.35 | 2.96 | 4.72 | ||
| 3.47 | 3.09 | 3.41 | 3.47 | 3.36 | 3.86 | 3.3 | 4.24 | 3.25 | 5.04 | 3.2 | 5.01 | ||
| 3.77 | 3.38 | 3.71 | 3.79 | 3.66 | 4.21 | 3.6 | 4.62 | 3.55 | 5.38 | 3.5 | 5.45 | ||
| 4.1 | 3.66 | 4.04 | 4.09 | 3.99 | 4.52 | 3.93 | 4.95 | 3.89 | 5.74 | 3.84 | 5.81 | ||
| 4.4 | 3.94 | 4.34 | 4.39 | 4.29 | 4.84 | 4.23 | 5.29 | 4.18 | 6.04 | 4.13 | 6.19 | ||
| 4.69 | 4.2 | 4.63 | 4.66 | 4.58 | 5.12 | 4.52 | 5.58 | 4.48 | 6.04 | 4.44 | 6.5 | ||
| 4.99 | 4.52 | 4.93 | 5.01 | 4.88 | 5.5 | 4.82 | 5.89 | 4.78 | 6.48 | 4.73 | 6.97 | ||
| 5.28 | 4.82 | 5.22 | 5.33 | 5.17 | 5.84 | 5.11 | 6.35 | 5.06 | 6.86 | ||||
SPECIFICATIONS DATA SSR 100 – 150
Table 1
| MODEL | BORE | SPEED | DISCHARGE PRESSURE | |||||||||
| 9.8 | 14.7 | 19.6 | 24.5 | 29.4 | ||||||||
| min-1 | 0.10 kgf/cm | 0.15kgf/cm | 0.2 kgf/cm | 0.25 kgf/cm | 0.3 kgf/cm | |||||||
| Q | L | Q | L | Q | L | Q | L | Q | L | |||
| SSR 100 | 4B (100A) | 1070 | 4.51 | 1.2 | 4.37 | 1.7 | 4.22 | 2.2 | 4.09 | 2.7 | 3.96 | 3.2 |
| 1160 | 5 | 1.42 | 4.85 | 1.95 | 4.69 | 2.49 | 4.56 | 3.03 | 4.43 | 3.56 | ||
| 1240 | 5.45 | 1.56 | 5.29 | 2.13 | 5.12 | 2.7 | 4.99 | 3.27 | 4.86 | 3.84 | ||
| 1320 | 5.97 | 1.64 | 5.82 | 2.27 | 5.66 | 2.89 | 5.54 | 3.52 | 5.41 | 4.14 | ||
| 1480 | 6.67 | 1.77 | 6.53 | 2.47 | 6.39 | 3.13 | 6.28 | 3.86 | 6.17 | 4.49 | ||
| 1580 | 7.14 | 1.92 | 7.01 | 2.66 | 6.88 | 3.37 | 6.77 | 4.13 | 6.66 | 4.83 | ||
| 1700 | 7.71 | 2.09 | 7.59 | 2.88 | 7.47 | 3.66 | 7.37 | 4.45 | 7.26 | 5.23 | ||
| 1790 | 8.12 | 2.24 | 8.01 | 3.12 | 7.9 | 3.89 | 7.8 | 4.71 | 7.7 | 5.53 | ||
| 1890 | 8.583 | 2.41 | 8.48 | 3.28 | 8.38 | 4.14 | 8.29 | 5.01 | 8.19 | 5.87 | ||
| 2010 | 9.19 | 2.56 | 9.09 | 3.49 | 9 | 4.41 | 8.91 | 5.34 | 8.82 | 6.26 | ||
| SSR 125 | 5B (125A) | 980 | 6.41 | 1.8 | 6.26 | 2.46 | 6.12 | 3.12 | 5.98 | 3.78 | 5.86 | 4.44 |
| 1050 | 6.93 | 2.1 | 6.77 | 2.79 | 6.63 | 3.48 | 6.5 | 4.17 | 6.37 | 4.86 | ||
| 1200 | 7.84 | 2.7 | 7.79 | 3.48 | 7.65 | 4.25 | 7.53 | 5.03 | 7.4 | 5.8 | ||
| 1310 | 8.7 | 3.1 | 8.58 | 3.95 | 7.47 | 4.8 | 8.37 | 5.65 | 8.27 | 6.5 | ||
| 1410 | 9.4 | 3.39 | 9.28 | 431 | 9.17 | 5 | 9.06 | 6.13 | 8.96 | 7.04 | ||
| 1470 | 9.83 | 3.69 | 9.71 | 4.64 | 9.6 | 5.59 | 9.5 | 6.53 | 9.4 | 7.48 | ||
| 1550 | 10.44 | 3.9 | 10.31 | 4.9 | 10.19 | 5.9 | 10.07 | 6.9 | 9.96 | 7.9 | ||
| 1650 | 11.13 | 4.4 | 11 | 5.48 | 10.87 | 6.56 | 10.76 | 7.64 | 10.65 | 8.72 | ||
| 1770 | 11.92 | 4.9 | 11.79 | 6.02 | 11.68 | 7.14 | 11.57 | 8.26 | 11.47 | 9.38 | ||
| 1880 | 12.63 | 5.4 | 12.5 | 6.58 | 12.39 | 7.76 | 12.28 | 8.94 | 12.18 | 10.12 | ||
| SSR 150 | 6B (150A) | 810 | 12.9 | 2.91 | 12.65 | 3.75 | 12.42 | 4.59 | 12.21 | 5.54 | 10.02 | 7.5 |
| 870 | 14.13 | 3.13 | 13.84 | 4.51 | 13.58 | 5.9 | 13.33 | 7312 | 13.1 | 8.67 | ||
| 990 | 15.92 | 3.34 | 15.67 | 4.9 | 15.44 | 6.46 | 15.22 | 8.02 | 15.01 | 9.58 | ||
| 1120 | 18.03 | 6.38 | 17.77 | 7.1 | 17.53 | 8.81 | 17.3 | 10.53 | 17.08 | 12.24 | ||
| 1200 | 19.39 | 6.3 | 19.14 | 8.06 | 18.91 | 9.8 | 18.69 | 11.3 | 18.49 | 13.27 | ||
| 1270 | 20.58 | 7.14 | 20.35 | 8 | 20.13 | 10.66 | 19.92 | 12.42 | 19.73 | 14.18 | ||
| 1410 | 22.81 | 9.01 | 22.57 | 11.01 | 22.35 | 13.01 | 22.14 | 15.01 | 21.94 | 17.01 | ||
| 1540 | 24.89 | 10.99 | 24.63 | 13.11 | 24.4 | 15.23 | 24.17 | 17.35 | 23.95 | 19.47 | ||
| 1670 | 26.84 | 12.71 | 26.57 | 14.96 | 26.32 | 17.21 | 26.08 | 19.46 | 25.85 | 21.71 | ||
| 1780 | 28.06 | 14.19 | 27.79 | 16.61 | 27.53 | 19.02 | 27.28 | 21.44 | 27.05 | 23.85 | ||
SPECIFICATIONS DATA SSR 100 – 150
Table 2
| MODEL | BORE | DISCHARGE PRESSURE | |||||||||||
| 34.3 | 39.2 | 44.1 | 49 | 53.9 | 58.8 | ||||||||
| 0.35 kgf/cm | 0.4 kgf/cm | 0.45kgf/cm | 0.5 kgf/cm | 0.55 kgf/cm | 0.6 kgf/cm | ||||||||
| Q | L | Q | L | Q | L | Q | L | Q | L | Q | L | ||
| SSR 100 | 4B (100A) | 3.83 | 3.7 | 3.75 | 4.2 | 3.67 | 4.7 | 3.58 | 5.2 | 3.5 | 5.7 | 3.42 | 6.2 |
| 4.33 | 4.1 | 4.23 | 4.64 | 4.15 | 5.17 | 4.06 | 5.71 | 3.98 | 6.25 | 3.9 | 6.78 | ||
| 4.76 | 4.41 | 4.66 | 4.98 | 4.57 | 5.55 | 4.48 | 6.12 | 4.4 | 6.69 | 4.32 | 7.26 | ||
| 5.31 | 4.77 | 5.21 | 5.39 | 5.1 | 6.02 | 5.02 | 6.64 | 4.94 | 7.27 | 4.86 | 7.89 | ||
| 6.8 | 5.25 | 4.99 | 5.85 | 5.92 | 6.64 | 5.84 | 7.21 | 5.77 | 8.03 | 5.7 | 8.57 | ||
| 6.58 | 5.6 | 6.49 | 6.28 | 6.42 | 7.07 | 6.34 | 7.74 | 6.27 | 8.54 | 6.2 | 9.19 | ||
| 7.19 | 6.02 | 7.11 | 6.8 | 7.03 | 7.59 | 6.94 | 0.37 | 6.88 | 9.16 | 6.82 | 9.93 | ||
| 7.63 | 6.36 | 7.55 | 7.13 | 7.48 | 8 | 7.4 | 8.82 | 7.33 | 9.65 | 7.26 | 10.46 | ||
| 8.12 | 6.74 | 8.05 | 7.6 | 7.98 | 8.47 | 7.9 | 9.33 | 7.83 | 10.2 | 7.76 | 11.06 | ||
| 8.76 | 7.19 | 8.7 | 8.11 | 8.64 | 9.04 | 8.58 | 9.96 | 8.53 | 10.89 | 8.47 | 11.81 | ||
| SSR 125 | 5B (125A) | 5.74 | 5.1 | 5.63 | 5.76 | 5.52 | 6.42 | 5.43 | 7.08 | 5.34 | 7.74 | 5.26 | 8.4 |
| 6.25 | 5.55 | 6.14 | 6.24 | 6.04 | 6.93 | 5.94 | 7.62 | 5.86 | 8.31 | 5.78 | 9 | ||
| 729 | 6.58 | 7.78 | 7.35 | 7.07 | 8.13 | 6.98 | 8.9 | 6.89 | 9.68 | 6.81 | 10.45 | ||
| 8.17 | 7.35 | 8.07 | 8.2 | 7.98 | 9.05 | 7.89 | 9.9 | 7.81 | 10.75 | 7.73 | 11.6 | ||
| 8.86 | 7.95 | 8.76 | 8.86 | 8.67 | 9.77 | 8.58 | 10.68 | 8.5 | 11.59 | 8.42 | 12.5 | ||
| 9.3 | 8.42 | 9.21 | 9.36 | 9.12 | 10.31 | 3.03 | 11.25 | 8.95 | 12.19 | 8.88 | 13.14 | ||
| 9.86 | 8.9 | 9.76 | 9.9 | 9.67 | 10.9 | 9.58 | 11.9 | 9.5 | 12.9 | 9.43 | 13.9 | ||
| 1055 | 9.8 | 10.45 | 10.88 | 10.36 | 11.96 | 10.28 | 13.04 | 10.2 | 14.12 | 10.14 | 15.2 | ||
| 11.37 | 10.5 | 11.28 | 11.6 | 10.2 | 12.74 | 11.13 | 13.86 | 11.06 | 14.98 | 11 | 16.1 | ||
| 12.08 | 11.3 | 11.99 | 12.48 | 11.91 | 13.66 | 11.83 | 14.84 | 11.76 | 16.02 | 11.7 | 17.2 | ||
| SSR 150 | 6B (150A) | 11.85 | 8.89 | 11.69 | 10.27 | 11.53 | 11.6 | 11.38 | 12.96 | 11.25 | 14.06 | 11.14 | 15.19 |
| 12.89 | 10.05 | 12.69 | 11.43 | 12.51 | 12.82 | 12.34 | 14.2 | 12.19 | 15.59 | 12.05 | 16.97 | ||
| 14.81 | 11.14 | 14.63 | 12.7 | 14.46 | 14.25 | 14.3 | 15.82 | 14.15 | 17.38 | 14.02 | 18.94 | ||
| 16.87 | 13.96 | 16.68 | 16.67 | 16.5 | 17.39 | 16.33 | 19.1 | 16.17 | 20.62 | 16.03 | 22.53 | ||
| 18.29 | 15.01 | 12.12 | 16.75 | 17.95 | 18.49 | 17.79 | 20.23 | 18.65 | 21.97 | 17.52 | 2371 | ||
| 19.55 | 15.94 | 19.38 | 17.7 | 19.22 | 19.46 | 19.08 | 21.22 | 18.95 | 22.98 | 18.83 | 24.74 | ||
| 21.75 | 19.01 | 21.58 | 21.01 | 21.42 | 23.01 | 21.27 | 25.01 | 21.1 | 27.01 | 21.01 | 29.01 | ||
| 23.56 | 21.59 | 23.56 | 23.71 | 23.39 | 25.83 | 23.22 | 27.95 | 23.08 | 30.07 | 22.94 | 32.19 | ||
| 25.43 | 23.96 | 25.43 | 26.21 | 25.24 | 28.46 | 25.06 | 30.71 | 24.91 | 32.96 | 24.76 | 35.21 | ||
| 26.62 | 26.27 | 26.62 | 28.68 | 26.42 | 31.1 | 26.24 | 33.51 | 26.07 | 35.93 | 25.91 | 38.34 | ||
