Three Lobes Root Blower SANCO SCB Series

Name: Root Blower SANCO SCB Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: SANCO

Sanco SCB blower, horizontal type, used for filling air in waste water in sanitary industry systems. Good quality products. Durable to use Product from Japan.

Category AIR PUMP Tags air blower, root blower, sanco, กลุ่มโรงงานอาหาร, รูทโบลเวอร์, อุปกรณ์เติมอากาศ, เครื่องเติมอากาศ

Three Lobes Roots Blower SANCO SCB Series

SANCO SCB Series SCB-40,SCB-50,SCB-65,SCB-80,SCB-100,SCB-125,SCB-150,SCB-200,SCB-250,SCB-300,SCB-350,SCB-400

SANCO three lobes Roots Blower are new series Roots type blowers.
Getting a perfect gap to promote air performance, lower vibrations and noises results a significant improvement compared to traditional Roots Blower of two lobes.
It is very convenient to maintain.

Sanco Blower SCB is suitable for sanitary wastewater systems, large aquaculture farms. Systems that require air to blow objects to move. And can also be used in vacuum systems

Root Blower SANCO SCB Series Type 3-Lobes, driven by motor through pulley and whole belt. Air blower with motor. And equipment installed on the same platform with Silencer pipes in both suction and air supply lines To reduce the sound, make the machine sound quieter. Rotor Rotary 3-Lobes system makes the wind steady and continuously reduces vibration. The air that comes out is clean. Without oil mist Simple structure, strong, easy to take care of the bearing Live longer Because there is lubricant Uses less energy. There is no valve to damage the machine

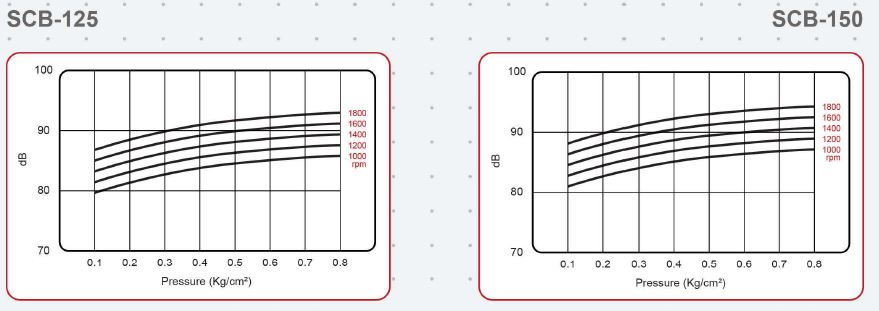

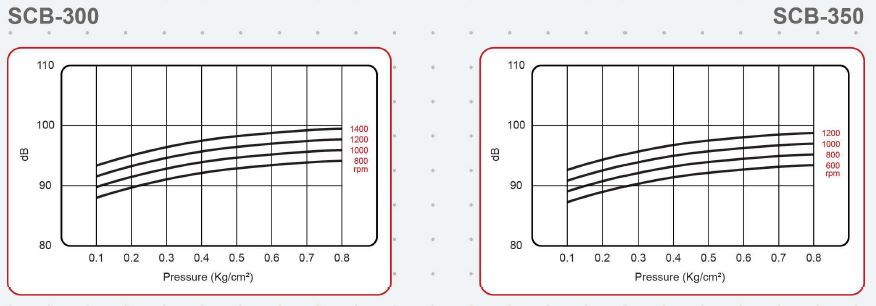

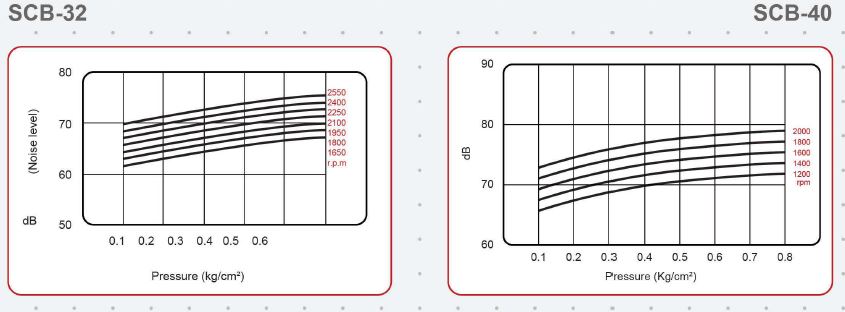

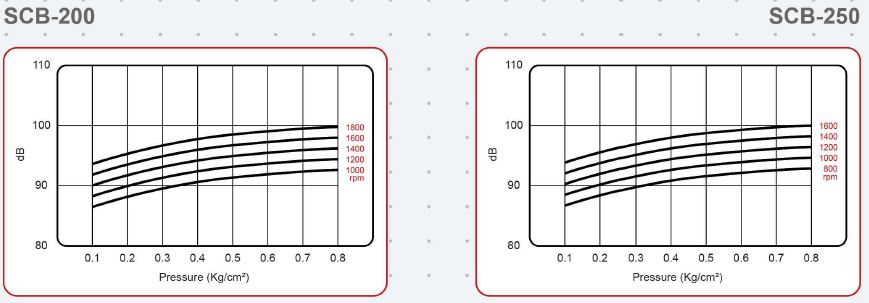

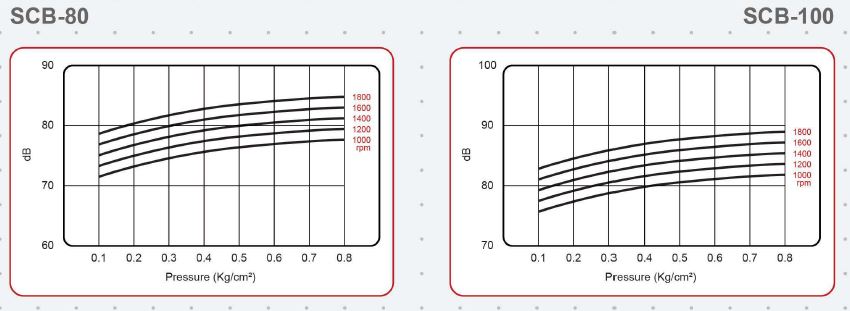

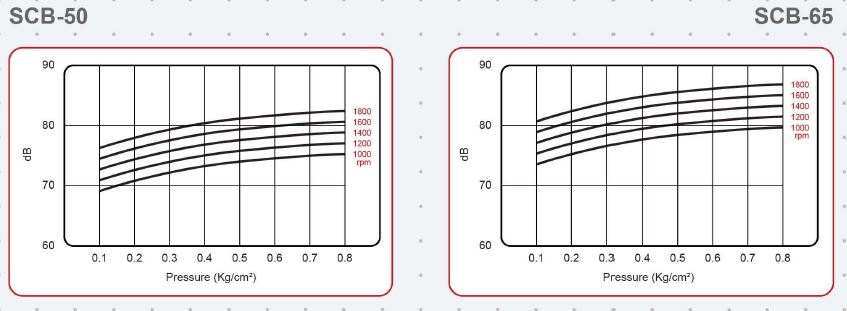

SANCO SCB Series Three Lobes Blower Performance Curve

SANCO SCB Series Three Lobes Blower Specifications

SANCO SCB Series SCB-32,SCB-40,SCB-50,SCB-65,SCB-80,SCB-100,SCB-125,SCB-150,SCB-200,SCB-250,SCB-300,SCB-350,SCB-400

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-32	1650	0.34	0.19	0.27	0.27	0.21	0.36	0.16	0.45	0.11	0.54	0.07	0.62
	1800	0.39	0.2	0.32	0.3	0.25	0.40	0.20	0.49	0.16	0.59	0.12	0.68
	1950	0.44	0.22	0.36	0.32	0.30	0.43	0.25	0.53	0.21	0.63	0.17	0.74
	2100	0.49	0.24	0.41	0.35	0.35	0.46	0.30	0.57	0.26	0.68	0.22	0.79
	2250	0.54	0.26	0.46	0.37	0.40	0.49	0.35	0.61	0.31	0.73	0.26	0.85
	2400	0.59	0.27	0.51	0.40	0.45	0.53	0.40	0.65	0.35	0.78	0.31	0.91
	2550	0.64	0.29	0.56	0.42	0.50	0.56	0.45	0.69	0.40	0.83	0.36	0.92

Model	RPM
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-40	1650	0.6	0.19	0.57	0.37	0.54	0.53	0.51	0.67	0.49	0.81	0.48	0.94
	1800	0.68	0.21	0.64	0.4	0.61	0.57	0.59	0.74	0.57	0.88	0.55	1.02
	1950	0.75	0.23	0.71	0.43	0.69	0.62	0.66	0.8	0.64	0.96	0.62	1.11
	2100	0.83	0.24	0.79	0.47	0.76	0.67	0.74	0.86	0.71	1.03	0.7	1.19
	2250	0.9	0.26	0.86	0.5	0.84	0.72	0.81	0.92	0.79	1.11	0.77	1.28
	2400	0.97	0.28	0.94	0.53	0.91	0.77	0.88	0.98	0.86	1.18	0.85	1.36
	2550	1.05	0.3	1.01	0.57	0.98	0.81	0.96	1.04	0.94	1.25	0.92	1.45

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-50	850	0.99	0.41	0.79	0.8	0.64	1.16	0.5	1.51	0.38	1.84	0.29	2.15	0.21	2.45	0.15	2.74
	1000	1.31	0.48	1.11	0.94	0.96	1.37	0.82	1.77	0.7	2.16	0.61	2.53	0.53	2.88	0.47	3.22
	1150	1.63	0.56	1.44	1.08	1.28	1.57	1.15	2.04	1.02	2.49	0.93	2.91	0.86	3.32	0.79	3.71
	1300	0.195	0.63	1.76	1.22	1.61	1.78	1.47	2.31	1.34	2.81	1.25	3.29	1.18	2.75	1.12	4.19
	1450	2.27	0.7	2.08	1.36	1.93	1.98	1.79	2.57	1.67	3.31	1.58	3.67	1.5	4.18	1.44	4.67
	1600	2.6	0.77	2.4	1.5	2.25	2.19	2.11	2.84	1.99	3.46	1.9	4.05	1.82	4.61	1.76	5.16
	1750	2.92	0.85	2.72	164	2.57	2.39	2.43	3.11	2.31	3.78	2.22	4.43	2.14	5.05	2.08	5.64

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-65	850	2.07	0.62	1.89	1.21	1.71	1.76	1.55	2.29	1.41	2.78	1.29	3.26	1.19	3.71	1.09	4.15
	1000	2.58	0.73	2.41	1.42	2.22	2.07	2.07	2.69	1.93	3.28	1.81	3.83	1.71	4.37	1.6	4.88
	1150	3.1	0.84	2.93	1.64	2.74	2.39	2.58	3.09	2.45	3.77	2.33	4.41	2.22	5.03	2.12	5.62
	1300	3.62	0.95	3.45	1.85	3.26	2.69	3.1	3.5	2.96	4.26	2.84	4.99	2.74	5.68	2.64	6.35
	1450	4.13	1.06	3.96	2.06	3.77	3.01	3.62	3.9	3.48	4.75	3.36	5.56	3.26	6.34	3.15	7.08
	1600	4.65	1.17	4.48	2.28	4.29	3.32	4.13	4.3	4	5.24	3.88	6.18	3.77	6.99	3.67	7.81
	1750	5.17	1.28	5	2.49	4.81	3.63	4.65	4.71	4.51	5.73	4.39	6.71	4.29	7.65	4.19	8.55

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-80	850	3.24	1.12	2.87	2.14	2.54	3.08	2.23	3.94	1.95	4.73	1.7	5.47	1.48	6.15	1.28	6.79
	1000	4.14	1.32	3.77	2.52	3.44	3.62	3.13	4.63	2.85	5.57	2.6	6.44	2.38	7.24	2.18	7.99
	1150	5.04	1.51	4.67	2.9	4.34	4.16	4.03	5.33	3.75	6.4	3.5	7.4	3.28	8.33	3.08	9.19
	1300	5.94	1.71	5.57	3.27	5.24	4.71	4.93	6.02	4.65	7.24	4.4	8.37	4.18	9.41	3.98	10.39
	1450	6.84	1.91	6.47	3.65	6.14	5.25	5.83	6.72	5.55	8.08	5.3	9.33	5.08	10.5	4.88	11.58
	1600	7.74	2.11	7.37	4.03	7.04	5.79	6.73	7.41	6.45	8.91	6.2	10.33	5.98	11.58	5.78	12.78
	1750	8.64	2.3	8.27	4.41	7.94	6.33	7.63	8.11	7.35	9.75	7.1	11.26	6.88	12.67	6.68	13.98

Model	RPM
				2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-100	850	5.8	1.57	5.19	3	4.65	4.31	4.16	5.5	3.74	6.63	3.36	7.66	3.03	8.62	2.74	9.51
	1000	7.06	1.84	6.45	3.53	5.91	5.07	5.42	6.49	5	7.8	4.62	9.01	4.29	10.14	4	11.19
	1150	8.32	2.12	7.71	4.05	7.17	5.83	6.68	7.46	6.26	8.97	5.88	10.36	5.55	11.66	5.26	12.86
	1300	9.58	2.4	8.97	4.58	8.43	6.59	7.94	8.43	7.52	10.14	7.14	11.71	6.81	13.18	6.52	14.54
	1450	10.84	2.67	10.23	5.11	9.69	7.35	9.2	9.41	8.78	11.31	8.4	13.06	8.7	14.7	7.78	16.22
	1600	12.1	2.95	11.49	5.64	10.95	8.11	10.46	10.38	10.04	12.47	9.66	14.42	9.33	16.22	9.04	17.9
	1750	13.36	3.23	12.75	6.17	12.21	8.87	11.72	11.35	11.3	13.64	10.92	15.77	10.59	17.74	10.3	19.57

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-125	750	10.29	2.59	9.42	4.96	8.62	7.13	7.88	9.12	7.25	10.97	6.66	12.67	6.11	14.26	5.65	15.74
	900	12.69	3.11	11.81	5.95	11.01	8.55	10.28	10.95	9.64	13.16	9.05	15.21	8.51	17.11	8.04	18.89
	1050	15.08	3.63	14.2	6.94	13.41	9.98	12.67	12.77	12.03	15.35	11.44	17.74	10.9	19.97	10.44	22.04
	1200	17.48	4.15	16.6	7.93	15.8	11.4	15.07	14.59	14.43	17.55	13.84	20.28	13.29	22.82	12.83	25.18
	1350	19.87	4.66	18.99	8.92	18.19	12.83	17.46	16.42	16.82	19.74	16.23	22.81	15.69	25.67	15.23	28.33
	1500	22.26	5.18	21.39	9.91	20.59	14.25	19.85	18.24	19.22	21.93	18.63	25.35	18.08	28.52	17.62	31.48
	1650	24.66	5.7	23.78	10.9	22.98	15.68	22.25	20.07	21.61	24.13	21.02	27.88	20.48	31.38	20.01	34.63

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-150	750	13.32	3.34	12.62	6.39	11.98	9.19	11.4	11.76	10.87	14.14	10.93	16.34	10	18.39	9.61	20.3
	900	16.4	4.01	15.7	7.67	15.06	11.03	14.59	14.11	13.95	16.97	13.48	19.61	13.09	22.07	12.7	24.36
	1050	19.49	4.68	18.79	8.95	18.15	12.86	17.58	16.47	17.04	19.8	16.57	22.88	16.18	25.75	15.78	28.41
	1200	22.58	5.35	21.88	10.23	21.24	14.7	20.66	18.82	20.13	22.62	19.65	26.15	19.26	29.42	18.87	32.47
	1350	25.66	6.02	24.96	11.5	24.33	16.54	23.75	21.17	23.21	25.45	22.74	29.42	22.35	33.1	21.96	36.53
	1500	28.75	6.68	28.05	12.78	27.41	18.38	26.84	23.52	26.3	28.28	25.83	32.69	25.44	36.78	25.05	40.59
	1650	31.84	7.35	31.14	14.06	30.5	20.21	29.92	25.88	29.39	31.11	28.91	35.96	28.52	40.46	28.13	44.65

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-200	600	17.01	4.84	15.95	9.27	15.04	13.32	14.21	17.06	13.53	20.51	12.93	23.71	12.4	26.68	11.98	29.45
	750	22.68	6.05	21.62	11.58	20.71	16.65	19.88	21.32	19.22	25.64	18.6	29.64	18.07	33.36	17.65	36.82
	900	28.35	7.17	27.29	13.9	26.38	19.98	25.55	25.59	24.87	30.77	24.27	35.57	23.74	40.03	23.32	44.18
	1050	34.02	8.48	32.96	16.22	32.05	23.32	31.22	29.85	30.54	35.896	29.94	41.49	29.41	46.7	28.99	51.55
	1200	39.69	9.69	38.63	18.53	37.72	26.65	36.89	34.12	36.21	41.02	35.61	47.42	35.08	53.37	34.66	58.91
	1350	45.36	10.9	44.3	20.85	43.39	29.98	42.56	38.38	41.88	46.15	41.28	53.35	40.75	60.04	40.33	66.27
	1500	51.03	12.11	49.97	23.17	49.06	33.31	48.23	42.56	47.55	51.28	46.95	59.28	46.42	66.71	46	73.64

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-250	600	27.72	7.4	26.22	14.16	24.89	20.35	23.68	26.06	22.58	31.34	21.6	36.23	20.73	40.77	19.98	45
	750	36.38	9.25	34.88	17.7	33.55	25.44	32.34	32.58	31.24	3.17	30.26	45.28	29.39	50.96	28.64	56.25
	900	45.05	11.1	43.54	21.24	42.22	30.53	41	39.09	39.91	47.01	38.92	54.38	38.06	61.15	37.31	67.5
	1050	53.71	12.95	52.21	24.77	50.88	35.62	49.67	45.61	48.57	54.84	47.59	63.39	46.72	71.34	45.97	78.75
	1200	62.37	14.8	60.87	28.31	59.54	40.71	58.33	52.12	57.23	62.67	56.25	72.45	55.38	81.54	54.63	90
	1350	71.03	16.65	69.53	31.85	68.2	45.8	66.99	58.64	65.89	70.51	64.91	81.51	64.04	91.73	63.29	101.3
	1500	79.7	18.5	78.19	35.39	76.87	50.89	75.65	65.16	74.56	78.34	73.57	90.56	72.71	101.9	71.96	112.5

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-300	600	58.94	14.44	55.49	25.88	58.83	37.23	52.04	47.7	50.48	58.83	49.26	68.88	47.59	79.49	46.7	88.83
	750	75.62	18.06	72.17	32.35	70.39	46.54	68.72	59.63	67.16	73.53	65.94	86.1	64.27	99.36	63.38	111
	900	92.3	21.67	88.85	38.82	87.07	55.85	85.4	71.55	83.84	88.24	82.62	103.3	80.95	119.2	80.06	133.3
	1050	109	25.28	105.5	45.29	103.8	65.16	102.1	83.48	100.5	103	99.3	120.5	97.63	139.1	96.74	155.5
	1200	125.7	28.89	122.2	51.76	120.4	74.46	118.8	95.41	117.2	117.7	116	137.8	114.3	159	113.4	177.7
	1350	142.3	32.5	138.9	58.23	137.1	83.77	135.4	107.3	133.9	132.4	132.7	155	131	178.9	130.1	199.9
	1500	159	36.11	155.6	64.7	153.8	93.08	152.1	119.3	150.6	147.1	149.3	172.2	146.8	198.7	146.8	222.1

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-350	600	122.3	28.57	117.7	51.29	114.1	73.82	110.7	96.95	107.8	118.1	105.3	141.8	102.8	161.6	100.3	187.7
	700	144.9	33.34	140.3	59.84	136.7	86.13	133.3	113.1	130.4	137.8	127.9	165.4	125.4	188.5	122.9	219
	800	167.5	38.1	162.9	68.39	159.3	98.43	155.9	129.3	153	157.4	150.5	189	148	215.4	145.5	250.2
	900	190.1	42.86	185.5	76.94	181.9	110.7	178.5	145.4	175.6	177.1	173.1	212.6	170.6	242.3	168.1	281.5
	1000	212.7	47.62	108.1	85.49	204.5	123	201.1	161.6	198.2	196.8	195.7	236.3	193.2	269.3	190.7	312.8
	1100	235.2	52.38	230.7	94.04	227.1	135.3	223.7	177.7	220.8	216.5	218.3	259.9	215.8	296.2	213.3	344.1
	1200	257.8	57.15	253.3	102.6	249.7	147.6	246.3	193.9	243.4	236.2	240.9	283.5	238.4	323.1	235.9	375.4

Model	RPM	Performance table Qs (m3/min) Pressure (mmH2O) La (Kw)
		1000		2000		3000		4000		5000		6000		7000		8000
		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O		mmH2O
		Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SANCO SCB-400	600	236.3	53.28	230.3	95.65	225.5	137.67	221.3	180.8	217.6	221.1	214.1	264.4	211.3	301.4	208.8	350.1
	650	257.4	57.73	251.4	103.62	246.5	149.14	242.3	195.9	238.6	239.5	235.2	286.5	232.3	326.5	229.8	379.3
	700	278.4	62.17	272.4	111.59	267.5	160.62	263.3	210.9	259.6	257.9	256.2	308.5	253.4	351.6	250.8	408.5
	750	299.4	66.61	293.4	119.56	288.6	172.1	284.4	226	280.7	276.4	277.2	330.5	274.4	376.7	271.9	437.7
	800	320.4	71.05	314.4	127.53	309.6	183.6	305.4	241.1	301.7	294.8	298.2	352.6	295.4	401.8	292.9	466.8
	850	341.5	75.49	335.5	135.51	330.6	195	326.4	256.1	322.7	313.2	319.3	374.6	316.4	42.9	313.9	496
	900	362.5	79.93	356.5	143.5	351.6	206.5	347.4	271.2	343.7	331.6	340.3	396.7	337.5	452	335	525.2

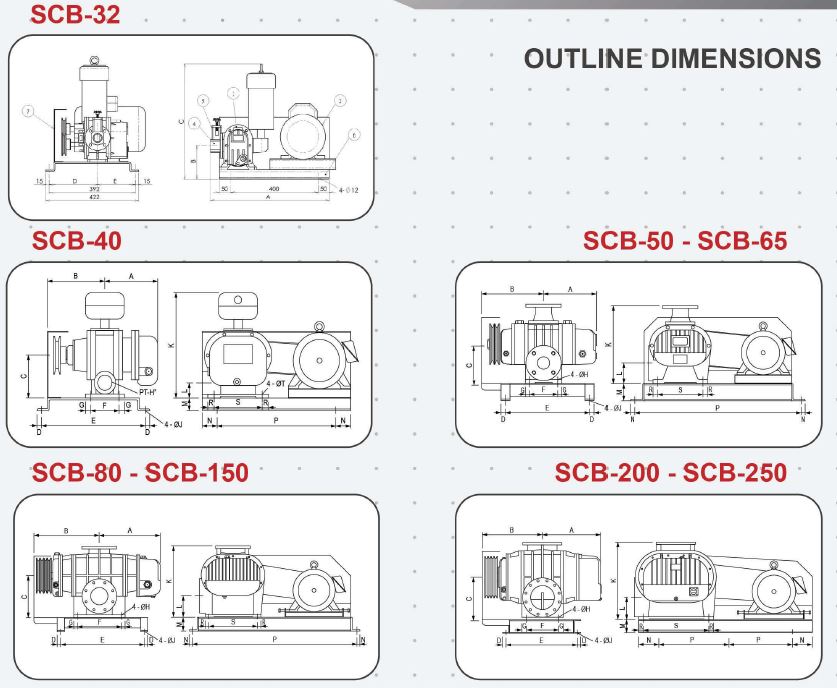

Dimensions
