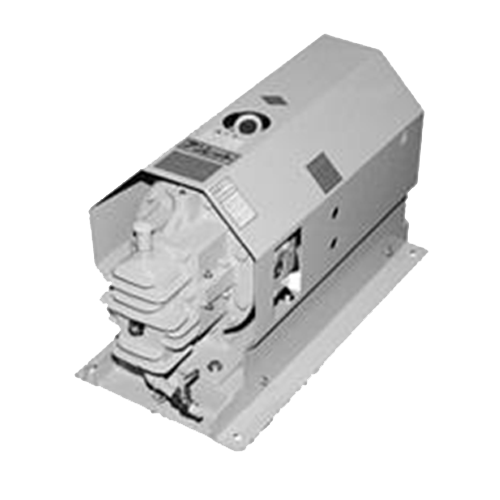

Anlet Three-Lobes Blower FT3-SERIES Initally nearly all blower were of the two lobed type, and althoung th design of the three-lobed type
was understood o other the adventages lower noise and vibration as greater efficiecy, construction was difficult Anlet alone has been able to produce high-performance yet low-cost blower using a patented three-lobe rotor maching tool.
MODEL | FT3-25 | FT3-40 | FT3-50 | ||||
Suction Bore | A | 20 | 20 | 20 | |||
Discharge bore | A | 10 | 15 | 15 | |||
Designed exhaust speed | m3/min | 0.36 | 0.43 | 0.52 | 0.62 | 0.77 | 0.93 |
Motor Out | kW | 0.75 | 1.5 | 1.5 | |||
Rotation speed | min-1 | 3000/50 | 3600/60 | 3000/50 | 3600/60 | 3000/50 | 3600/60 |
Noise dB(A) 8kPa(60Torr) at1m | 74 | 76 | 75 | 78 | 76 | 79 |
