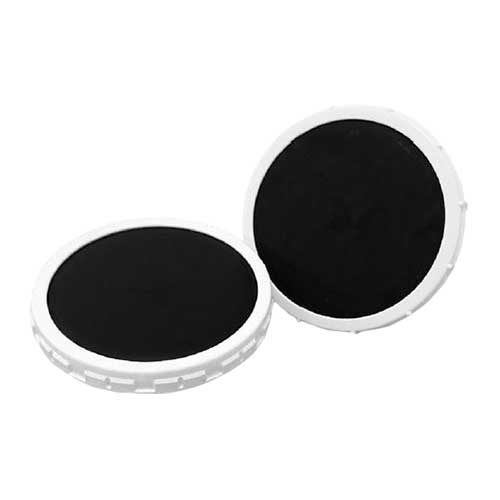

Fine Bubble Disc Diffuser FLOWSHEN RSD/RCD Series
fine bubble disc diffuser FLOWSHEN RSD/RCD Series with EPDM membrane with high tensile strength producing tiny air bubbles of an average 1-3 mm RCD Series models with check valves to prevent water returning into the pipes and RSD Series models without check valves .
Facebook
Twitter
Email
Print
Fine Bubble Disc Diffuser FLOWSHEN RSD/RCD Series
Disc Diffuser FLOWSHEN RSD/RCD Series Feature
- High Oxygen Transmission Efficiency (OTE) with a large number of identical diameter slits (pores) on EPDM membrane producing tiny air bubbles of an average 1-3 mm, thus provide power saving efficiency and low operation cost.
- Excellent back flow prevention with check valve to avoid clogging and sewage water to entering into aerator pipe line when air transmission is shut (also available with non-check valve).
- Equipped with EPDM membrane with high tensile strength, anti-tearing, and non- deformability. The membranes surface are overspread with over 6500 to 12500 of micro pores. While operating, the bubbles are rise in a form of spiral whirlpool, thus provide the self-cleaning ability for the membranes as well as extended long service life.
- Unique seal ring provide a maximum tight sealing between diffuser base and membrane washer.
- PVC Soft connector for installation with pipe line also available as optional accessories.
FLOWSHEN RSD/RCD Series Applications
- Aeration
- SBR reaction basin
- Sludge activated process
- Wastewater treatment process
- Denitrification aerobic process
- Aquafarm and other aeration
- application

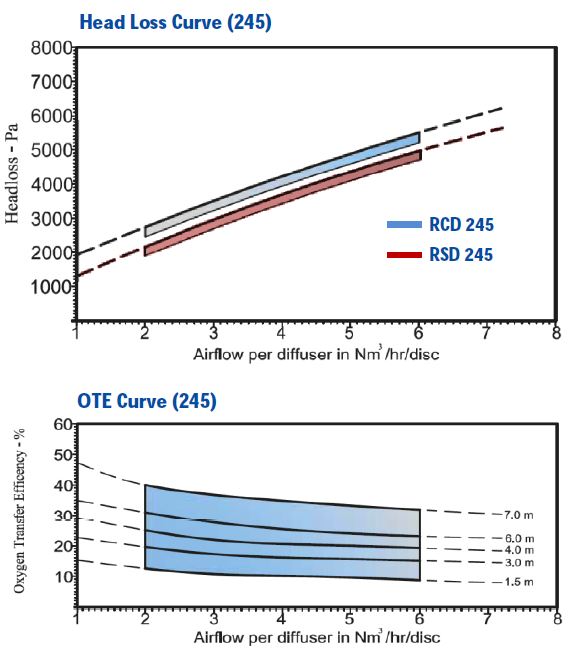

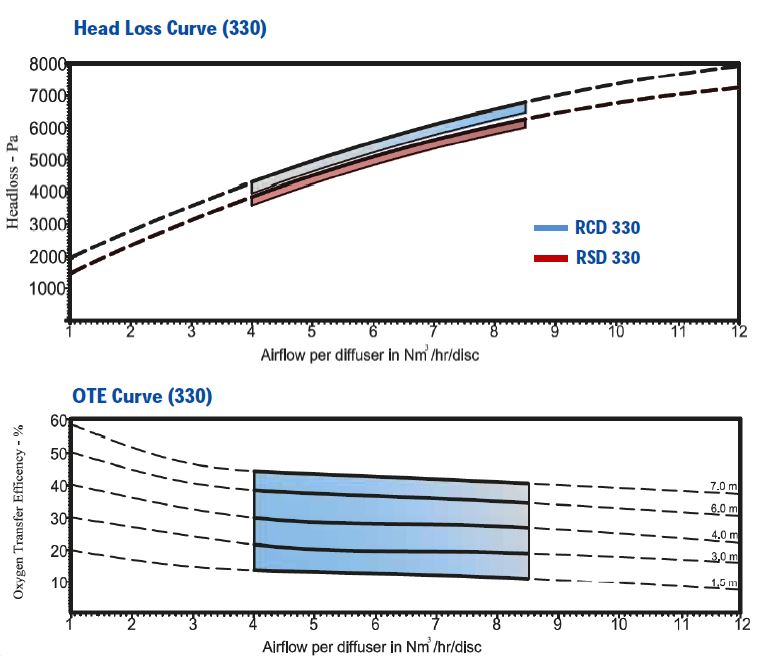

FLOWSHEN RSD/RCD Series Performance

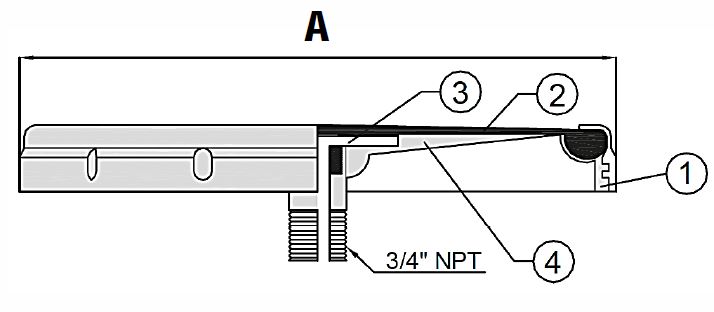

FLOWSHEN RSD/RCD Series Dimensions
| RSD245 | RSD330 | RCD245 | RCD330 |
| 266 | 348 | 265 | 350 |
| No. | Description | Model | |||
| RSD245 | RSD330 | RCD245 | RCD330 | ||
| 1 | Retaining ring | *PP | *PP | *PP | *PP |
| 2 | Membrane | **EPDM | **EPDM | **EPDM | **EPDM |
| 3 | Check valve | ***N/A | ***N/A | **EPDM +*PP | **EPDM+ *PP |
| 4 | Disc | *PP | *PP | *PP | *PP |
FLOWCHEN RSD/RCD Series Specifications
| MODEL | Flow rate | Design flow | Pressure | Check valve | Range depth | Service area | Pores quantity | Bubble size | Max. Temp | Connector threaded | Weight |
| m3/hr | m3/hr | loss (Pa) | (m) | (m2) | (mm) | (kg) | |||||
| FLOWSHEN RSD245 | 1-7.2 | 2.0-6.0 | 2000-4800 | ***N/A | 1.5-7.0 | 0.5 | 6500 | 1-3 | 100 °C | 3/4 “NPT | 0.6 |
| FLOWSHEN RSD330 | 1-12 | 4.0-8.5 | 3800-6300 | 0.8 | 12500 | 0.85 | |||||
| FLOWSHEN RCD245 | 1-7.2 | 2.0-6.0 | 2800-5500 | Included | 0.5 | 6500 | 0.75 | ||||
| FLOWSHEN RCD330 | 1-12 | 4.0-8.5 | 4300-6800 | 0.8 | 12500 | 0.95 |
