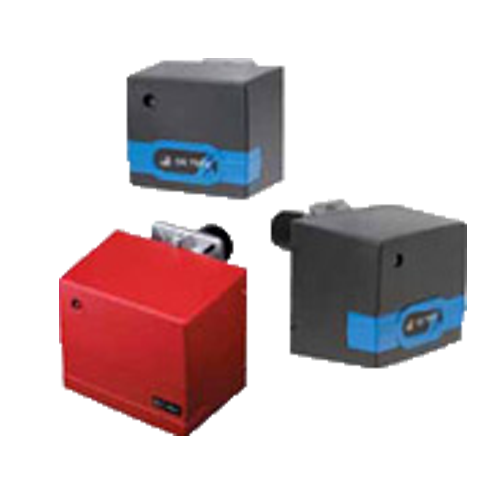

F.B.R. G Series Burner high quality. Imported from Italy Burner is a diesel fuel. Strength Suitable for use in industrial boilers, ovens of various sizes. Burner G Series models are available to choose from several versions of both models and 1 Stage 2 Stages.
Burner F.B.R. G Series Model G 0…2001,G 0…2003,G 1…2001,G 1…2003,G 2…MAXI,G X3…,G X4…
F.B.R. G Series Burner high quality. Imported from Italy Burner is a diesel fuel. Strength Suitable for use in industrial boilers, ovens of various sizes.
1 Stage | 1 Stage from 14 up to 236 kW | ||||
kg/h | kW | Phase | |||
min | max | min | max | ||
G 0S 2001/2003* – G 0H 2001/2003 | 2 | 3,3 | 23,7 | 39,1 | 1F |
G 0S 2001/2003* | 1.2 | 3,1 | 14,2 | 36,7 | |
G 1S 2001/2003* – G 1H 2001/2003 G 1R 2001/2003* | 2 | 5 | 23,7 | 59,2 | |
G 2S MAXI* – G 2H MAXI | 4 | 9,8 | 47,3 | 116 | |
G X3S – G X3H | 7 | 15 | 83 | 178 | |
G X4S – G X4H | 10 | 20 | 118 | 236 | |
* Available also in Low NOx Version |
2 Stage | 2 Stage from 23 up to 236 kW | |||
kg/h | kW | |||
min | max | min | max | |
G 1.22 2001 | 2 | 5 | 23,7 | 59,2 |
G 2.22 MAXI | 4 | 9,8 | 47,3 | 116 |
G X 3.22 | 7 | 15 | 83 | 178 |
G X 4.22 | 10 | 20 | 118 | 236 |
Model | A | B | C | ØD | E | F | ØG | H | I | TXC | TC | TL |
G 0…2001 | 137 | 137 | 240 | 80 | 223 | 169 | 90 | 130 | 160 | – | 112 | 152 |
G 0…2003 | 137 | 137 | 240 | 83 | 225 | 169 | 90 | 130 | 160 | 77 | 112 | 152 |
G 1…2001 | 157 | 170 | 275 | 80 | 265 | 210 | 90 | 130 | 160 | – | 112 | 152 |
G 1…2003 | 157 | 170 | 275 | 83 | 265 | 210 | 90 | 130 | 160 | – | 112 | 152 |
G 2…MAXI | 157 | 170 | 275 | 90 | 265 | 210 | 100 | 130 | 160 | – | 112 | 152 |
G X3… | 179 | 189 | 318 | 110 | 306 | 248 | 120 | 160 | 226 | – | 130 | 250 |
G X4… | 179 | 189 | 318 | 124 | 306 | 248 | 140 | 160 | 226 | – | 130 | 250 |
Model | A | B | C | ØD | E | F | ØG | H | I | TC | TL |
G 1.22 2001 | 157 | 170 | 275 | 80 | 265 | 210 | 90 | 130 | 160 | 112 | 152 |
G 2.22 MAXI | 157 | 170 | 275 | 90 | 265 | 210 | 100 | 130 | 160 | 112 | 152 |
G X 3.22 | 179 | 189 | 318 | 110 | 298 | 248 | 120 | 160 | 226 | 130 | 250 |
G X 4.22 | 179 | 189 | 318 | 124 | 298 | 248 | 140 | 160 | 226 | 130 | 250 |
