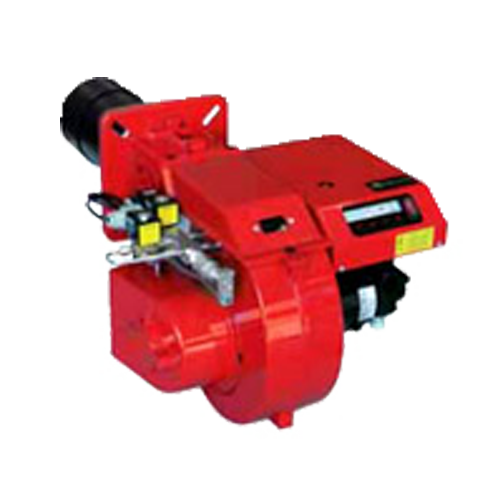

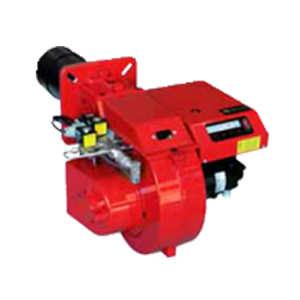

F.B.R. GL Series Burner model. Diesel fuel Imported from Italy Strength Suitable for use in industrial boilers, ovens sizes Burner GL Series has all three types 1 Stage, With Jump of Pressure and 2 Stages.
Burner F.B.R. GL Series Model GL 30 F,GL 30.22,GL 20/2,GL 30/2
F.B.R. GL Series Burner model. Diesel fuel Imported from Italy Strength Suitable for use in industrial boilers.
| 1 Stage | With Jump of Pressure | 2 Stage | 1 Stage – With jump of pressure – 2 Stages from 118 up tp 355 kW | ||||
| kg/h | kW | Phase | |||||
| min | max | min | max | ||||
| GL 20/2 | 10 | 20 | 118 | 237 | 1F | ||
| GL 30 F | GL 30.22 | GL 30/2 | 13 | 30 | 153 | 355 | |
| Model | A | B | C | ØD | E | F | ØG | H | I | M | TC | TL | TXL |
| GL 30 F | 410 | 240 | 157 | 130 | 251 | 102 | 140 | 180 | 226 | 10 | 130 | 250 | – |
| GL 30.22 | 410 | 257 | 157 | 130 | 251 | 102 | 140 | 180 | 226 | 10 | 130 | 250 | – |
| GL 20/2 | 410 | 240 | 200 | 125 | 251 | 102 | 140 | 180 | 226 | 10 | 130 | 250 | – |
| GL 30/2 | 410 | 240 | 200 | 130 | 251 | 102 | 140 | 180 | 226 | 10 | 130 | 250 | 335 |
