P-PM-Series

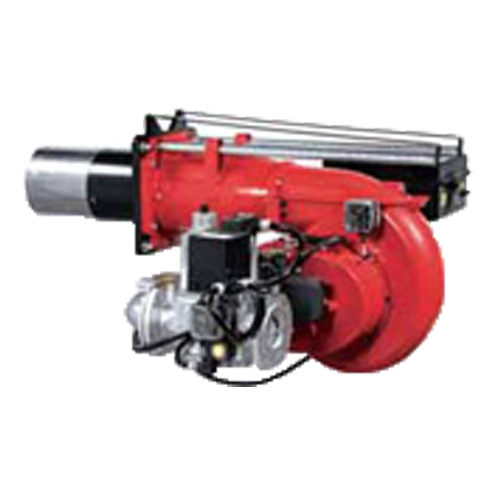

Burner F.B.R. P & PM Series

F.B.R. P & PM Series Burner using gas as fuel. Quality products imported from Italy. Strength Suitable for use in industrial boilers, ovens of various sizes. Available for use with various models of the 2 Stages and Progressive & Modulating

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Burner F.B.R. P & PM Series

GAS P 350/M **,GAS P 450/M **,GAS P 550/M **,GAS P 650/M **



fbr-p-pm-2stage-406-1744kw-1 fbr-p-pm-2stage-1044-2900kw-2 fbr-p-pm-1392-7558kw-3



F.B.R. P & PM Series Specifications

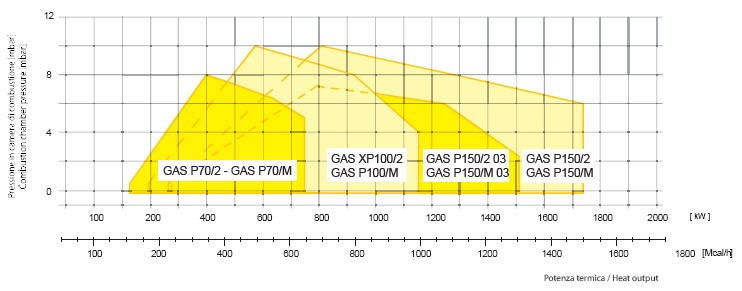

fbr-p-pm-2stage-406-1744kw-performance-curve-1

2 Stages Progressive & Modulating 2 Stages – Progressive & Modulating from 406 up to 1744 kW
kcal/h kW Phase
min max min max
GAS P 70/2 GAS P 70/M 350 650 406 754 3F
GAS P 100/2 GAS P 100/M 500 1.000.000 580 1160
GAS P 150/2 GAS P 150/M 700 1.500.000 814 1744

fbr-p-pm-2stage-1044-2900kw-performance-curve-2

2 Stages Progressive & Modulating 2 Stages – Progressive & Modulating from 1044up to 2900 kW
kcal/h kW Phase
min max min max
GAS P 190/2 GAS P 190/M ** 900 1.900.000 1044 2209 3F
GAS P 250/2 GAS P 250/M ** 1.000.000 2.500.000 1160 2900
** Available also special versions with INVERTER and ELECTORNIC BURNER CONTROL

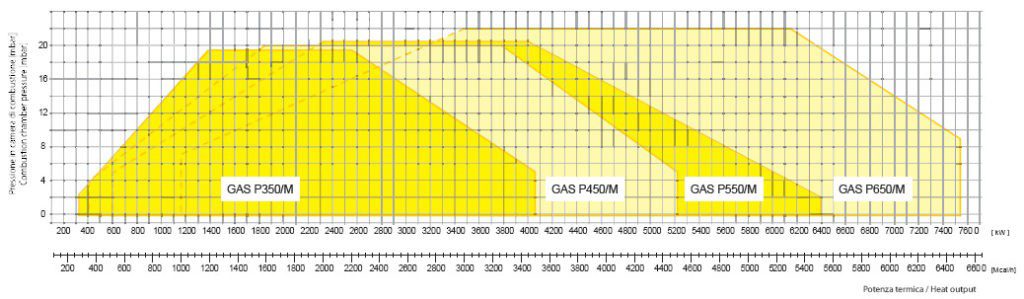

fbr-p-pm-1392-7558-performance-curve-3

Progressive & Modulating 2 Stages – Progressive & Modulating from 406 up to 1744 kW
kcal/h kW Phase
min max min max
GAS P 350/M ** 1.200.000 3.500.000 1392 4060 3F
GAS P 450/M ** 1.600.000 4.500.000 1865 5220
GAS P 550/M ** 2.000.000 5.500.000 2320 6380
GAS P 650/M ** 3.000.000 6.500.000 3488 7558



F.B.R. P & PM Series Dimensions

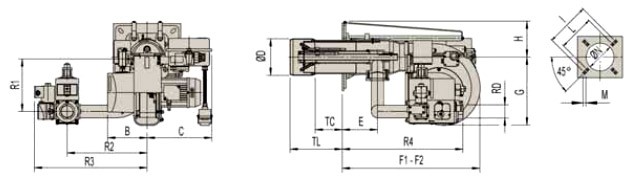

fbr-p-pm-2stage-406-1744kw-dimensions-1

Model B C ØD E F1 F2 G H I L M ØN TC TL R1 R2 R3 R4 RD
GAS P 70/2 CE – D1″ 1/2 – FS50 188 308 175 168 660 1100 327 171 368 340 12 185 250 385 260 380 532 576 1″ 1/2
GAS P 70/2 CE – D2″ – FS50 188 308 175 168 660 1100 327 171 368 340 12 185 250 385 260 380 536 576 2″
GAS P 100/2 CE – D1″ 1/2 – FS50 238 374 185 184 660 1160 438 173 368 340 12 195 250 385 260 380 532 591 1″ 1/2
GAS P 100/2 CE – D2″ – FS50 238 375 185 184 660 1160 438 173 368 340 12 195 250 385 260 380 536 591 2″
GAS P 100/2 CE – DN65 – FS65 238 373 185 184 660 1160 438 173 368 340 12 195 250 385 260 380 540 630 DN65
GAS P 150/2 CE – D2″ – FS50 238 376 210 193 800 1380 438 213 368 340 14 220 280 400 284 380 552 600 2″
GAS P 150/2 CE – DN65 – FS65 238 376 210 193 800 1380 438 213 368 340 14 220 280 400 228 340 495 585 DN65
GAS P 150/2 CE – DN80 – FS80 238 376 210 193 800 1380 438 213 368 340 14 220 280 400 228 420 590 605 DN80
GAS P 70/M CE – D1″ 1/2 – FS50 331 362 175 168 660 1100 327 171 368 340 12 185 250 385 260 415 553 538 1″ 1/2
GAS P 70/M CE – D2″ – FS50 331 362 175 168 660 1100 327 171 368 340 12 185 250 385 260 415 535 538 2″
GAS P 100/M CE – D1″ 1/2 – FS50 376 373 185 184 660 1160 438 173 368 340 12 195 250 385 260 460 600 554 1″ 1/2
GAS P 100/M CE – D2″ – FS50 376 373 185 184 660 1160 438 173 368 340 12 195 250 385 260 460 600 554 2″
GAS P 100/M CE – DN65 – FS65 376 373 185 184 660 1160 438 173 368 340 12 195 250 385 260 500 592 580 DN65
GAS P 150/M CE – D2″ – FS50 376 373 210 193 800 1380 438 213 368 340 14 220 280 400 228 510 673 552 2″
GAS P 150/M CE – DN65 – FS65 376 373 210 193 800 1380 438 213 368 340 14 220 280 400 228 510 665 590 DN65
GAS P 150/M CE – DN80 – FS80 376 373 210 193 800 1380 438 213 368 340 14 220 280 400 228 550 720 630 DN80

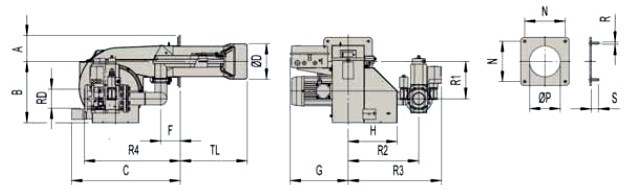

fbr-p-pm-2stage-1044-2900kw-dimensions-2

Model A B C ØD F G H N ØP R S TL R1 R2 R3 R4 RD
GAS P 190/2 CE – D2″ – FS50 180 453 806 265 145 430 363 300 280 M14 50 495 275 570 734 656 2″
GAS P 190/2 CE – DN65 – FS65 180 453 806 265 145 430 363 300 280 M14 50 495 275 570 724 688 DN65
GAS P 190/2 CE – DN80 – FS80 180 453 806 265 145 430 363 300 280 M14 50 495 275 570 736 708 DN80
GAS P 190/2 CE – DN100 – FS100 180 453 806 265 145 430 363 300 280 M14 50 495 275 570 745 748 DN100
GAS P 250/2 CE – D2″ – FS50 180 453 806 270 145 430 363 300 280 M14 50 495 275 570 734 656 2″
GAS P 250/2 CE – DN65 – FS65 180 453 806 270 145 430 363 300 280 M14 50 495 275 570 724 688 DN65
GAS P 250/2 CE – DN80 – FS80 180 453 806 270 145 430 363 300 280 M14 50 495 275 570 736 708 DN80
GAS P 250/2 CE – DN100 – FS100 180 453 806 270 145 430 363 300 280 M14 50 495 275 570 745 748 DN100
GAS P 190/M CE – D2″ – FS50 180 453 806 265 145 430 363 300 280 M14 50 495 254 509 672 504 2″
GAS P 190/M CE – DN65 – FS65 180 453 806 265 145 430 363 300 280 M14 50 495 254 480 634 688 DN65
GAS P 190/M CE – DN80 – FS80 180 453 806 265 145 430 363 300 280 M14 50 495 254 480 647 708 DN80
GAS P 190/M CE – DN100 – FS100 180 453 806 265 145 430 363 300 280 M14 50 495 254 480 654 748 DN100
GAS P 250/M CE – D2″ – FS50 180 453 806 270 145 430 363 300 280 M14 50 495 254 509 672 504 2″
GAS P 250/M CE – DN65 – FS65 180 453 806 270 145 430 363 300 280 M14 50 495 254 480 634 688 DN65
GAS P 250/M CE – DN80 – FS80 180 453 806 270 145 430 363 300 280 M14 50 495 254 480 647 708 DN80
GAS P 250/M CE – DN100 – FS100 180 453 806 270 145 430 363 300 280 M14 50 495 254 480 654 748 DN100

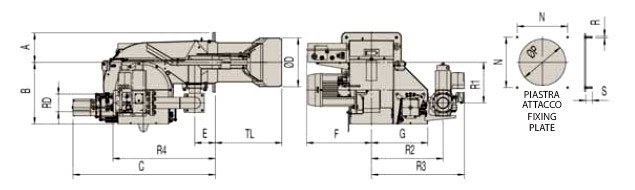

fbr-p-pm-1392-7558-dimensions-3

Model A B C ØD E F G TL N ØP R S R1 R2 R3 R4 RD
GAS P 350/M CE – DN65 – FS65 231 481 1118 342 160 507 440 515 390 360 M14 50 317 560 714 780 DN65
GAS P 350/M CE – DN80 – FS80 231 481 1118 342 160 507 440 515 390 360 M14 50 317 560 727 800 DN80
GAS P 350/M CE – DN100 – FS100 231 481 1118 342 160 507 440 515 390 360 M14 50 317 590 765 840 DN100
GAS P 450/M CE – DN65 – FS65 231 481 1118 342 160 507 440 520 390 400 M14 50 317 560 714 780 DN65
GAS P 450/M CE – DN80 – FS80 231 481 1118 342 160 507 440 520 390 400 M14 50 317 560 727 800 DN80
GAS P 450/M CE – DN100 – FS100 231 481 1118 342 160 507 440 520 390 400 M14 50 317 590 765 840 DN100
GAS P 550/M CE – DN65 – FS65 231 481 1118 342 160 616 440 520 390 420 M14 50 317 560 714 780 DN65
GAS P 550/M CE – DN80 – FS80 231 481 1118 342 160 616 440 520 390 420 M14 50 317 560 727 800 DN80
GAS P 550/M CE – DN100 – FS100 231 481 1118 342 160 616 440 520 390 420 M14 50 317 590 765 840 DN100
GAS P 650/M CE – DN65 – FS65 231 481 1118 342 160 641 440 490 390 440 M14 50 317 560 714 780 DN65
GAS P 650/M CE – DN80 – FS80 231 481 1118 342 160 641 440 490 390 440 M14 50 317 560 727 800 DN80
GAS P 650/M CE – DN100 – FS100 231 481 1118 342 160 641 440 490 390 440 M14 50 317 590 765 840 DN100
