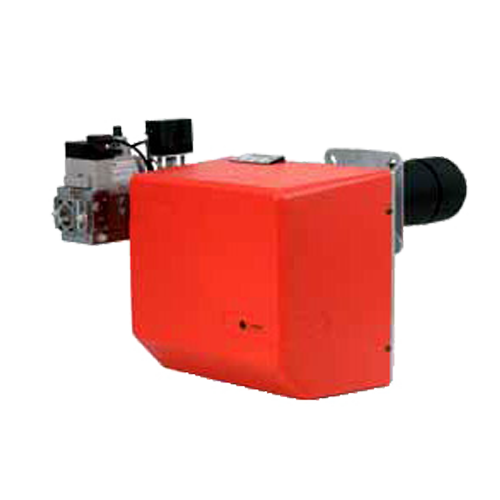

Burner F.B.R. X Series

F.B.R. X Series Multi-Burner gas as fuel. Quality products imported from Italy are strong and durable. Suitable for use in industrial boilers, ovens of various sizes. Available for use with various models of the 1 Stage, 2 Stages and Progressive & Modulating.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Burner F.B.R. X Series

GAS X 0,GAS X 1,GAS X 2,GAS X 3*,GAS X 4*,GAS X 5*,GAS X 1/2,GAS X 2/2,GAS X 3/2*,GAS X 4/2*,GAS X 5/2*

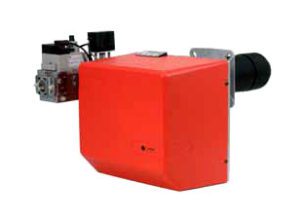

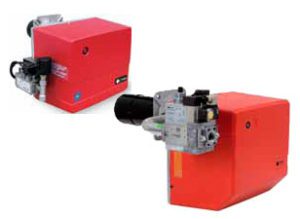

fbr-x-series-1stage-11-349kw-1-300x219           fbr-x-series-2stage-23-349kw-2-300x219



F.B.R. X Series Specifications

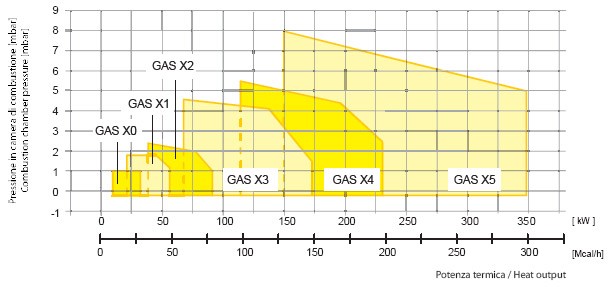

fbr-x-series-1stage-11-349kw-performance-curve-1

 Stage 1 Stage from 11 up to 349 kW
kcal/h kW Phase
min max min max
GAS X 0 10 29.5 11,6 34,2 1F
GAS X 1 20 50 23,2 58
GAS X 2 35 80 40,6 93
GAS X 3* 60 150 70 174
GAS X 4* 100 200 116 232
GAS X 5* 130 300 151 349
* Available also in Low NOx Version

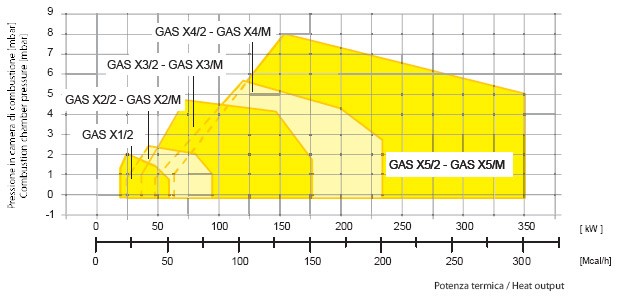

fbr-x-series-2stage-23-349kw-performance-curve-2

2 Stages Progressive & Modulating 2 Stages – Progressive & Modulating 23 up – 349 kW
kcal/h kW Phase
min max min max
GAS X 1/2 20 50 23,2 58 1F
GAS X 2/2 GASX 2/M 35 80 40,6 93
GAS X 3/2* GAS X 3/M 60 150 70 174
GAS X 4/2* GAS X 4/M 100 200 116 232
GAS X 5/2* GAS X 5/M 130 300 151 349
* Available also in Low NOx Version



F.B.R. X Series Dimensions

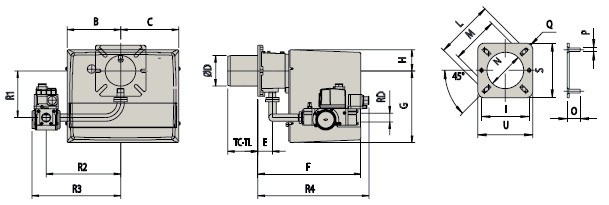

fbr-x-series-1stage-11-349kw-dimensions-1

Model B C ØD E F G H I L M N O P Q S U TC TL R1 R2 R3 R4 RD
GAS X0 CE – D1/2″-S 137 137 90 45 265 169 72 130 160 130 100 30 M8 R15 150 150 85 145 128 200 254 244 1/2
GAS X1 CE – D1/2″-S 157 170 90 45 305 210 65 130 160 130 100 30 M8 R15 150 150 85 145 128 200 254 244 1/2
GAS X2 CE – D3/4″-S 157 190 90 45 305 210 65 130 160 130 100 30 M8 R15 150 150 85 145 138 220 262 328 3/4
GAS X3 CE – D1″-S 185 195 108 52 340 248 70 160 170 150 120 30 M8 R30 220 220 160 280 173 280 337 385 1
GAS X4 CE – D1″-S 185 195 125 78 368 248 70 – 226 170 135 40 M10 R30 220 220 250 334 160 305 362 403 1
GAS X5 CE – D1″-S 207 213 139 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 160 305 362 403 1″
GAS X5 CE – CT-D1″-S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 160 305 362 403 1″
GAS X5 CE – D1″1/4-S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 160 305 362 450 1″ 1/4
GAS X5 CE – CT-CT-D1″1/4-S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 160 305 480 450 1″ 1/4

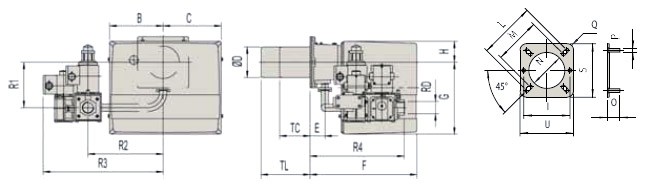

fbr-x-series-2stage-23-349kw-dimensions-2

Model B C ØD E F G H I L M ØN O P Q S U TC TL R1 R2 R3 R4 RD
GAS X 1/2 CE – D1/2″ S 157 170 90 45 313 210 65 130 160 130 100 30 M8 R15 150 150 85 145 133 200 275 258 1/2
GAS X 2/2 CE – D3/4″ FS25 157 170 90 45 313 210 65 130 160 130 100 30 M8 R15 150 150 85 145 138 220 351 278 1
GAS X 3/2 CE – D1″ S 185 195 108 52 340 248 70 160 170 150 120 30 M8 R15 190 190 130 250 168 280 337 361 1
GAS X 4/2 CE – D1″ S 185 195 125 78 368 248 – 226 170 135 120 40 M10 R30 220 220 160 280 173 280 337 385 1
GAS X 5/2 CE – D1″-S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 255 305 362 403 1″
GAS X 5/2 CE – CT D1″ S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 255 305 480 403 1″
GAS X 5/2 CE – D1″1/4 S 207 213 138 198 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 255 305 362 450 1″ 1/4
GAS X 5/2 CE – CT D1″1/4-S 207 213 138 98 462 310 90 – 226 205 148 – M10 R30 220 220 250 335 255 305 480 450 1″ 1/4
GAS X 2/M CE – D3/4″FS25 157 200 90 45 305 211 65 130 160 130 100 30 M8 R15 150 150 85 145 178 220 318 275 1″
GAS X 2/M CE – D1″ FS25 157 200 90 45 305 211 65 130 160 130 100 30 M8 R15 150 150 85 145 178 220 318 275 1″
GAS X 3/M CE – D1″ FS25 185 224 108 54 340 248 70 160 170 150 120 30 M8 R15 190 190 130 250 228 280 378 310 1″
GAS X 4/M CE – D1″ FS25 185 224 125 78 368 248 70 – 226 170 135 40 M10 R30 220 220 160 280 233 280 378 334 1″
GAS X 4/M CE – D1″ FS32 185 224 125 78 368 248 70 – 226 170 135 40 M10 R30 220 220 160 280 233 280 378 334 1″
GAS X 5/M CE – D1″ S 207 213 138 98 462 310 165 – 226 205 148 – M10 R30 220 220 250 335 160 305 395 508 1″
GAS X 5/M CE – D1″ 1/4S 207 213 138 98 462 310 165 – 226 205 148 – M10 R30 220 220 250 335 160 305 395 508 1″ 1/4
