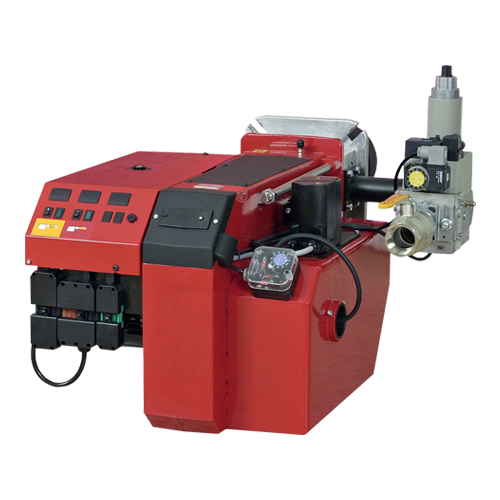

Gas Burner Two stage BENTONE BG550-2
Gas Burner Two stage BENTONE BG550-2 is a gas burner designed for use in gas combustion systems. It features a two-stage combustion capability, allowing efficient control of energy consumption. The burner is versatile and suitable for various gas types, providing flexibility for different applications. The BENTONE BG550-2 is engineered for high performance, making it an ideal choice for industrial and construction settings where precise and efficient combustion control is essential.
Gas Burner Two stage BENTONE BG550-2
INFORMATION
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 676
– 2-stage or modulating
– Plug-in contact facilitates the installation
– Two valves, slow opening
– Gas connection left or right
– Available for natural gas, LPG town gas, biogas
– When biogas is used, Bentone shall always be contacted

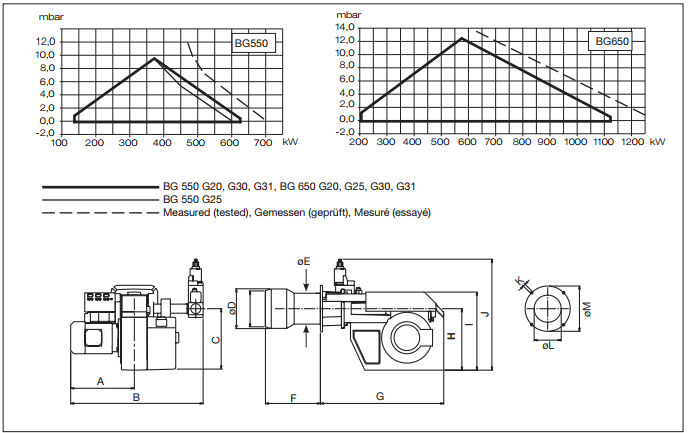

| Type | BG550 | BG650 | |
| Capacity | KWG20,G30,G31 | 140-628 | 200-1125 |
| 140-600 | 200-1125 | ||
| Motor | V/Hz/W | 230-400/50/750 | 230-400/50/1500 |
| Cntrol unit | Siemens | ||
| Max. inlet pressure | mbar | 360 | |
| Fittings | Dungs GasMuiltiBloc | ||
| Flame monitoring | Ionisation | ||
| Air damper motor | . | ||
| Ball valve | . | ||
| Pressure gauge | . | ||
| Leakage control | . | ||
| Regulator RM 16 | . | ||
| Gross weight | kg c. | 100 | |
| Volume | m³ c. | 0.7 | |
