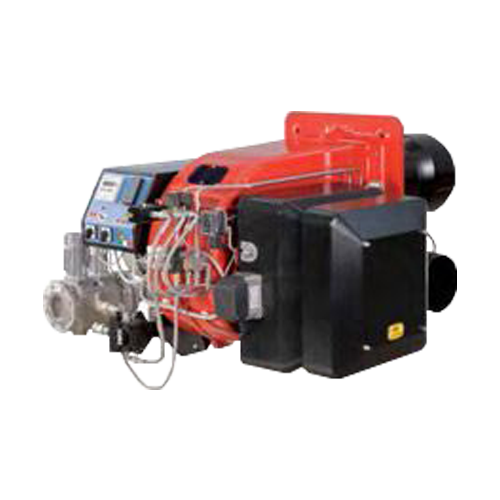

Dual Fuel Burners Natural Gas / Heavy Oil C.I.B Unigas MILLE (pneumatic) KRBY1025-KRBY1040

Dual Fuel Burners Natural Gas / Heavy Oil C.I.B Unigas MILLE (pneumatic) KRBY1025-KRBY1040

PNEUMATIC ATOMIZATION WITH ELECTRONIC OPERATION

Just like the corresponding series NOVANTA-CINQUECENTO, these oil burners – up to 4000 cSt at 50°C (530°E at 50°C) – including emulsified oils, were developed in order to use compressed air or, when required, steam as a means of atomization in order to achieve better combustion results compared to the traditional atomization systems.

These burners are provided with a low pressure nozzle which allows consumption levels to be kept low, but, above all limits the general wear of the whole atomization system.
All burners are progressive, and are complete with electrical control cabinet, pump set to be installed separately by the final user, and the nozzle performs an automatic cleaning process at the end of each cycle.
The standard burner is set up to atomize with compressed air only, when steam is requested for atomization, the burner will be modified through a specific kit. Air, or steam, must be present at the burner at a pressure from 6 to 10 bar. Burners are ignited through a pilot that can operate both with natural gas or LPG.
