Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas MINIFLAM
Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas MINIFLAM is a burner designed for use with natural gas and light oil, featuring low levels of nitrogen oxides (NOx) in Class 2. This design ensures high efficiency and minimizes the environmental impact by reducing the production of nitrogen oxides. The CINQUECENTO model emphasizes efficiency and precise flame control, making it suitable for environments where NOx emissions need to be minimized.
Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas MINIFLAM
This small output series can work both with gas and light oil according to the fuel availability on the plant.Of course all mechanisms have been carefully studied to give the max efficiency and are perfectly compatible to work with gas and liquid fuels; in fact fuel change over is simply achieved by a single electrical switch which prompts the burner to carry out a controlled shutdown.

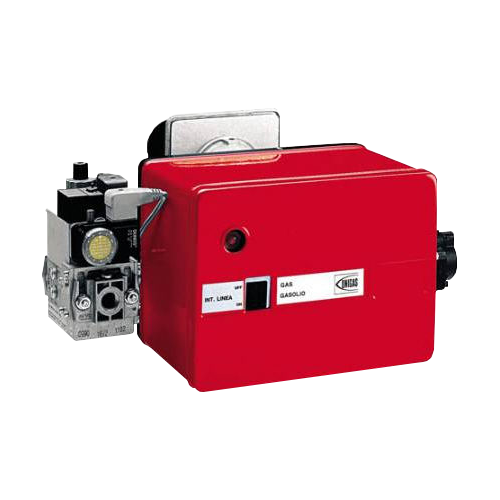

The high perfomance fuel pump is driven by a separate motor running only when oil firing is selected.Moreover, thanks to its small dimensions, this series is particularly suitable to a quick maintenance. The burner’s feature: an housing made in aluminium die-cast, the cover can be easily taken off, a grill on the air inlet prevents any foreign object being drawn into the fan. The combustion head can be adjusted by means of a graduated screw.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Power supply [aux, kW] | Protection class IP |
| HS5 | MG.TN.S.xx.A.0.15 | 35 | 70 | 3.7 | 7.4 | 360 | 3 | 5.9 | 230 | 1Nac 50 | 0.35 | 0.1 | 0.1 | 0.15 | IP40 |
| HS5 | MG.TN.L.xx.A.0.15 | 35 | 70 | 3.7 | 7.4 | 360 | 3 | 5.9 | 230 | 1Nac 50 | 0.35 | 0.1 | 0.1 | 0.15 | IP40 |
| HS10 | MG.TN.S.xx.A.1.20 | 65 | 140 | 6.9 | 14.8 | 360 | 5.5 | 11.8 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS10 | MG.TN.L.xx.A.1.20 | 65 | 140 | 6.9 | 14.8 | 360 | 5.5 | 11.8 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS10 | MG.TN.S.xx.A.0.20 | 65 | 140 | 6.9 | 14.8 | 360 | 5.5 | 11.8 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS10 | MG.TN.L.xx.A.0.20 | 65 | 140 | 6.9 | 14.8 | 360 | 5.5 | 11.8 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS18 | MG.TN.S.xx.A.0.25 | 80 | 200 | 8.5 | 21 | 360 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS18 | MG.TN.L.xx.A.0.25 | 80 | 200 | 8.5 | 21 | 360 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS18 | MG.TN.S.xx.A.1.25 | 80 | 200 | 8.5 | 21 | 360 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
| HS18 | MG.TN.L.xx.A.1.25 | 80 | 200 | 8.5 | 21 | 360 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.5 | 0.15 | 0.1 | 0.25 | IP40 |
