Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas NOVANTA

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas NOVANTA

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas NOVANTA

is a burner designed for use with natural gas and light oil, featuring low levels of nitrogen oxides (NOx) in Class 2. This design ensures high efficiency and minimizes the environmental impact by reducing the production of nitrogen oxides. The CINQUECENTO model emphasizes efficiency and precise flame control, making it suitable for environments where NOx emissions need to be minimized.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

เครื่องพ่นไฟ Dual Fuel Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas NOVANTA

Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Oil flow [min, kg/h] Oil flow [max, kg/h] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Pump motor [kW] Power supply [aux, kW] Protection class IP
HR91A MG.PR.S.xx.A.1.50 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.65 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.80 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.100 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.50.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.65.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.80.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.PR.S.xx.A.1.100.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.50 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.65 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.80 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.100 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.50.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.65.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.80.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.100.EC 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.50.ES 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.65.ES 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.80.ES 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR91A MG.MD.S.xx.A.1.100.ES 480 2670 51 283 500 40 225 400 3Nac 50 5.6 4 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.50 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.65 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.80 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.100 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.50.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.65.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.80.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.PR.S.xx.A.1.100.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.50 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.65 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.80 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.100 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.50.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.65.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.80.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.100.EC 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.50.ES 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.65.ES 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.80.ES 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR92A MG.MD.S.xx.A.1.100.ES 480 3050 51 323 500 40 257 400 3Nac 50 7.1 5.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.50 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.65 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.80 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.100 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.50.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.65.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.80.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.PR.S.xx.A.1.100.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.50 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.65 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.80 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.100 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.50.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.65.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.80.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.100.EC 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.50.ES 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.65.ES 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.80.ES 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40
HR93A MG.MD.S.xx.A.1.100.ES 550 4100 58 434 500 46 346 400 3Nac 50 9.1 7.5 1.1 0.5 IP40

NOVANTA Curve

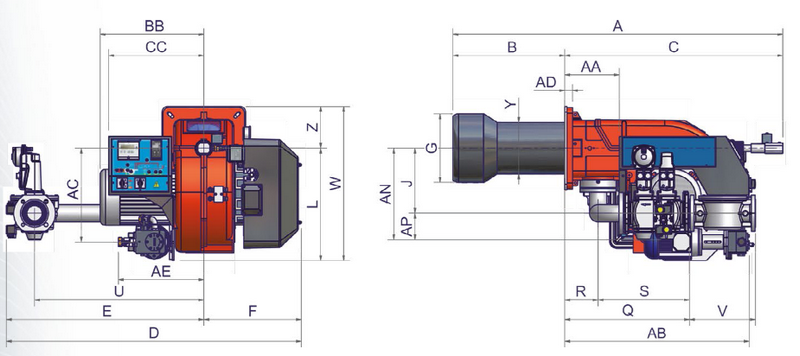

NOVANTA dimension
