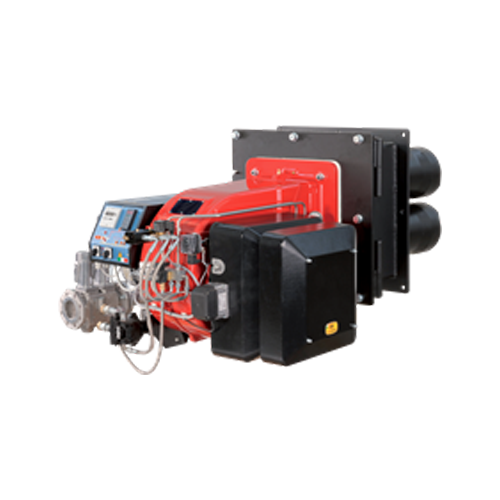

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas NOVANTA VS is a burner designed for use with natural gas and light oil, featuring low levels of nitrogen oxides (NOx) in Class 2. This design ensures high efficiency and minimizes the environmental impact by reducing the production of nitrogen oxides. The CINQUECENTO model emphasizes efficiency and precise flame control, making it suitable for environments where NOx emissions need to be minimized.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Power supply [aux, kW] | Protection class IP |
| HR91 | MG.PR.S.xx.VS.1.50.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.50.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.50.ES | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.PR.S.xx.VS.1.65.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.65.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.65.ES | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.PR.S.xx.VS.1.80.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.80.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.80.ES | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.PR.S.xx.VS.1.100.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.100.EC | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR91 | MG.MD.S.xx.VS.1.100.ES | 480 | 2670 | 51 | 283 | 500 | 40 | 225 | 400 | 3Nac 50 | 5.6 | 4 | 1.1 | 0.5 | IP40 |
| HR92 | MG.PR.S.xx.VS.1.50.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.50.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.50.ES | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.PR.S.xx.VS.1.65.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.65.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.65.ES | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.PR.S.xx.VS.1.80.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.80.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.80.ES | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.PR.S.xx.VS.1.100.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.100.EC | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR92 | MG.MD.S.xx.VS.1.100.ES | 480 | 3050 | 51 | 323 | 500 | 40 | 257 | 400 | 3Nac 50 | 7.1 | 5.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.PR.S.xx.VS.1.50.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.50.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.50.ES | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.PR.S.xx.VS.1.65.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.65.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.65.ES | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.PR.S.xx.VS.1.80.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.80.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.80.ES | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.PR.S.xx.VS.1.100.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.100.EC | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| HR93 | MG.MD.S.xx.VS.1.100.ES | 550 | 4100 | 58 | 434 | 500 | 46 | 346 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
