Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS

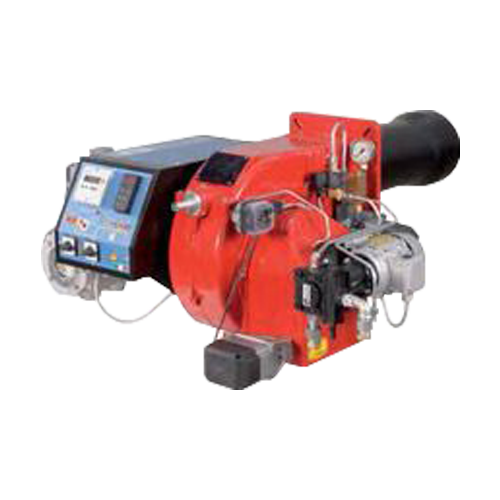

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS is a burner designed for use with natural gas and light oil, featuring low levels of nitrogen oxides (NOx) in Class 2. This design ensures high efficiency and minimizes the environmental impact by reducing the production of nitrogen oxides. The CINQUECENTO model emphasizes efficiency and precise flame control, making it suitable for environments where NOx emissions need to be minimized.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS

Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Oil flow [min, kg/h] Oil flow [max, kg/h] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Pump motor [kW] Power supply [aux, kW] Protection class IP
HP20 MG.AB.S.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.AB.L.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.PR.S.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.PR.L.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.MD.S.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.MD.L.xx.A.0.25 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.PR.S.xx.A.1.25.EC 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.PR.L.xx.A.1.25.EC 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.MD.S.xx.A.1.25.EC 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP20 MG.MD.L.xx.A.1.25.EC 85 230 9 24 360 7.2 19.4 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.AB.S.xx.A.0.32 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.AB.S.xx.A.0.40 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.PR.S.xx.A.0.32 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.PR.S.xx.A.0.40 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.MD.S.xx.A.0.32 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.MD.S.xx.A.0.40 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.PR.S.xx.A.1.32.EC 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.PR.S.xx.A.1.40.EC 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.MD.S.xx.A.1.32.EC 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP30 MG.MD.S.xx.A.1.40.EC 65 350 6.9 37 360 5.5 30 230 1Nac 50 0.83 0.37 0.18 0.28 IP40
HP60 MG.AB.S.xx.A.0.32 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.AB.S.xx.A.0.40 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.AB.S.xx.A.0.50 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.AB.S.xx.A.0.65 170 880 18 93 500 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.0.32 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.0.40 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.0.50 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.0.65 170 880 18 93 500 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.0.32 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.0.40 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.0.50 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.0.65 170 880 18 93 500 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.1.32.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.1.40.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.1.50.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.PR.S.xx.A.1.65.EC 170 880 18 93 500 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.1.32.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.1.40.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.1.50.EC 170 880 18 93 360 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP60 MG.MD.S.xx.A.1.65.EC 170 880 18 93 500 14.3 74 400 3Nac 50 2.15 1.1 0.55 0.5 IP40
HP65 MG.AB.S.xx.A.0.40 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.AB.S.xx.A.0.50 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.AB.S.xx.A.0.65 270 970 29 103 500 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.0.40 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.0.50 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.0.65 270 970 29 103 500 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.0.40 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.0.50 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.0.65 270 970 29 103 500 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.1.40.EC 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.1.50.EC 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.PR.S.xx.A.1.65.EC 270 970 29 103 500 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.1.40.EC 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.1.50.EC 270 970 29 103 360 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP65 MG.MD.S.xx.A.1.65.EC 270 970 29 103 500 23 82 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.0.40 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.0.50 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.0.65 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.0.80 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.1.40 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.1.50 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.1.65 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.AB.S.xx.A.1.80 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.0.40 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.0.50 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.0.65 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.0.80 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.40 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.50 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.65 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.80 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.0.40 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.0.50 330 1200 35 127 360 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.0.65 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.0.80 330 1200 35 127 500 28 101 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.40 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.50 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.65 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.80 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.40.EC 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.50.EC 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.65.EC 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.A.1.80.EC 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.40.EC 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.50.EC 330 1550 35 164 360 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.65.EC 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.A.1.80.EC 330 1550 35 164 500 28 131 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HR75A MG.AB.S.xx.A.1.50 320 2050 34 217 360 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.AB.S.xx.A.1.65 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.AB.S.xx.A.1.80 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.50 320 2050 34 217 360 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.65 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.80 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.50.EC 320 2050 34 217 360 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.65.EC 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.PR.S.xx.A.1.80.EC 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.50 320 2050 34 217 360 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.65 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.80 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.50.EC 320 2050 34 217 360 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.65.EC 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
HR75A MG.MD.S.xx.A.1.80.EC 320 2050 34 217 500 27 173 400 3Nac 50 4.05 3 0.55 0.5 IP40
