Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS VS

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS VS

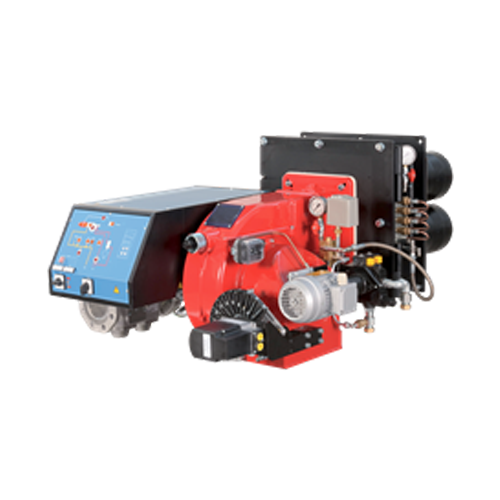

Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS VS is a burner designed for use with natural gas and light oil, featuring low levels of nitrogen oxides (NOx) in Class 2. This design ensures high efficiency and minimizes the environmental impact by reducing the production of nitrogen oxides. The CINQUECENTO model emphasizes efficiency and precise flame control, making it suitable for environments where NOx emissions need to be minimized.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Dual Fuel Burners Natural gas Light Oil Low NOx Class 2 C I B Unigas TECNOPRESS VS

Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Oil flow [min, kg/h] Oil flow [max, kg/h] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Pump motor [kW] Power supply [aux, kW] Protection class IP
HP60 MG.PR.S.xx.VS.0.50 332 1100 35 116 360 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.PR.S.xx.VS.0.65 332 1100 35 116 500 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.PR.S.xx.VS.1.50 332 1100 35 116 360 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.PR.S.xx.VS.1.65 332 1100 35 116 500 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.PR.S.xx.VS.1.50.EC 332 1100 35 116 360 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.MD.S.xx.VS.1.50.EC 332 1100 35 116 360 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.MD.S.xx.VS.1.50.ES 332 1100 35 116 360 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.PR.S.xx.VS.1.65.EC 332 1100 35 116 500 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.MD.S.xx.VS.1.65.EC 332 1100 35 116 500 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP60 MG.MD.S.xx.VS.1.65.ES 332 1100 35 116 500 28 93 400 3Nac 50 2.55 1.5 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.0.50 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.0.50 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.0.65 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.0.65 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.0.80 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.0.80 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.50 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.50 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.65 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.65 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.80 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.80 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.50.EC 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.50.EC 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.50.ES 300 1650 32 175 360 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.65.EC 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.65.EC 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.65.ES 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.PR.S.xx.VS.1.80.EC 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.80.EC 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP72 MG.MD.S.xx.VS.1.80.ES 300 1650 32 175 500 25 139 400 3Nac 50 3.25 2.2 0.55 0.5 IP40
HP73 MG.PR.S.xx.VS.1.50.EC 300 2150 32 228 360 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.50.EC 300 2150 32 228 360 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.50.ES 300 2150 32 228 360 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.PR.S.xx.VS.1.65.EC 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.65.EC 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.65.ES 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.PR.S.xx.VS.1.80.EC 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.80.EC 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40
HP73 MG.MD.S.xx.VS.1.80.ES 300 2150 32 228 500 25 181 400 3Nac 50 4.05 3 0.55 0.5 IP40

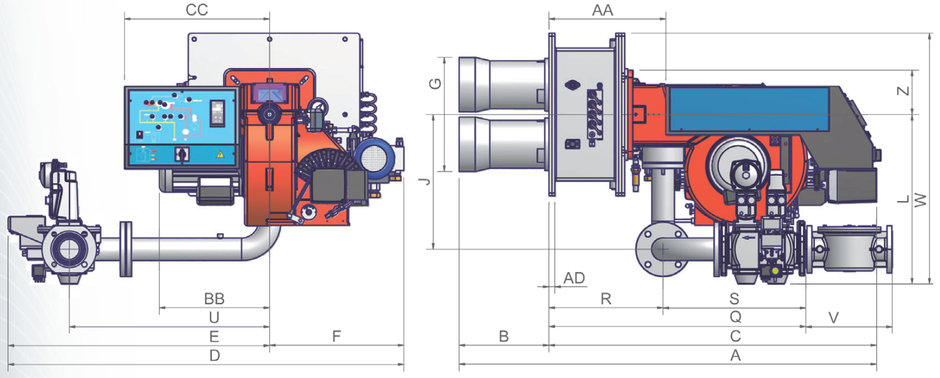

TECNOPRESS VS
