Gas Burner Modulating BENTONE BG300M
Gas Burner Modulating BENTONE BG300M is an efficient and safe gas burner designed for industrial heating. The BG300M model automatically adjusts heat levels to meet system requirements, providing reliability and performance. Manufactured by BENTONE, it ensures quality and durability.
Facebook
Twitter
Email
Print

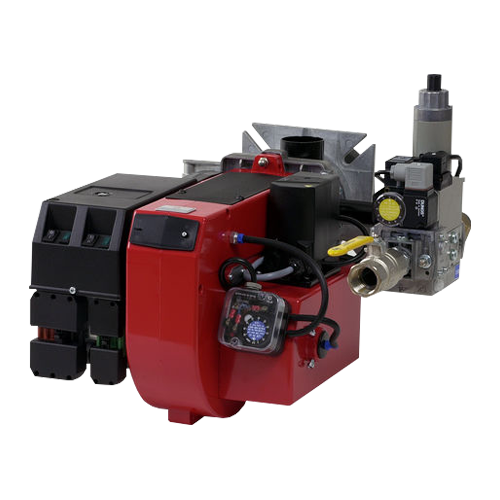

Gas Burner Modulating BENTONE BG300M
Available in versions up to 190 kW, 1-stage (2-stage and modulating versions also available).
BG300 is equipped with hinged flange. Slow opening solenoid valve.
Gas connection left or right. Recommended for over- and under-pressure boilers. Design for easy maintenance. Energy saving. When biogas is used, Bentone shall always be contacted.
INFORMATION
- Energy saving and compatible with environmental requirements
- Quiet in operation and designed for easy maintenance
- Reliable and trouble free
- Designed and approved in accordance with the European standard EN 676
- 1-stage, 2-stage or modulating
- Plug-in contact facilitates the installation
- Two valves, slow opening
- Hinged flange
- Gas connection left or right
- Available for natural gas, LPG, town gas, biogas
- When biogas gas is used, Bentone shall always be contacted

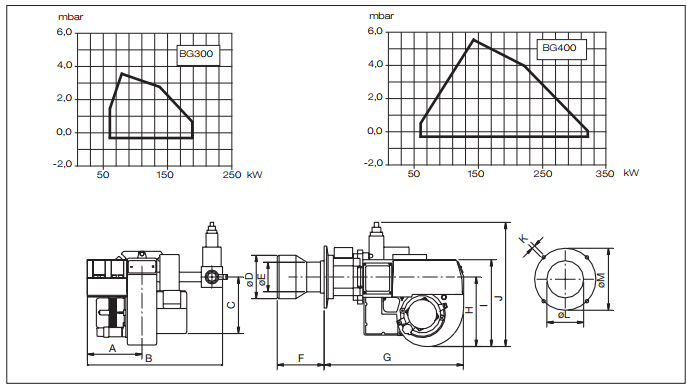

| Type | BG300 | BG300-2,M | BG400 | BG400-2,M | |
| Capacity | kW | 60-190 | 60-190 | 60-318 | 60-318 |
| Motor | V/Hz/W | 230/50-60/180 | 230/50-60/250 | ||
| Control unit | Siemens | ||||
| Max. inlet pressure | Dungs Gas Multi Bloc | ||||
| Fittings | Ionisation | ||||
| Flame monitoring | . | ||||
| Air damper motor | . | ||||
| Ball valve | . | ||||
| Pressure gauge | . | ||||
| Leakage control | . | ||||
| Regulator R 316 | . | ||||
| Gross weight | kg c. | 25 | 27 | 29 | 32 |
| Volume | m³c. | 0.13 | 0.13 | 0.15 | 0.16 |
