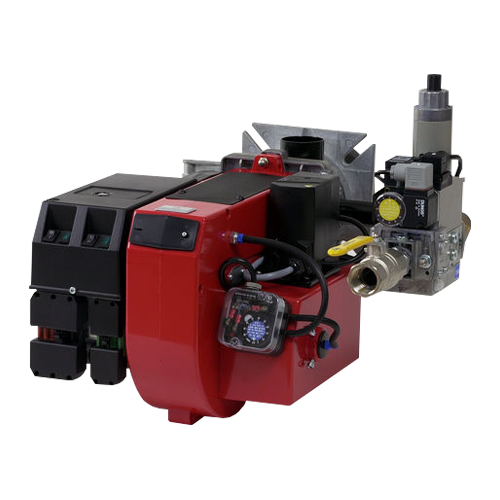

Gas Burner Modulating BENTONE BG400M
Gas Burner Modulating BENTONE BG400M is an efficient and safe gas burner designed for industrial heating. The BG400M model automatically adjusts heat levels to meet system requirements, providing reliability and performance. Manufactured by BENTONE, it ensures quality and durability.
Facebook
Twitter
Email
Print
Gas Burner Modulating BENTONE BG400M

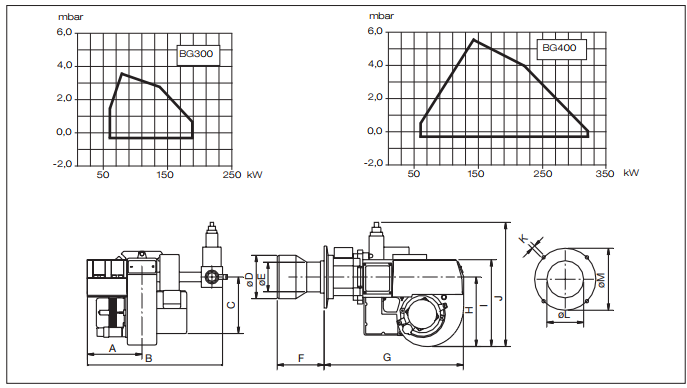

| Type | BG300 | BG300-2,M | BG400 | BG400-2,M | |
| Capacity | kW | 60-190 | 60-190 | 60-318 | 60-318 |
| Motor | V/Hz/W | 230/50-60/180 | 230/50-60/250 | ||
| Control unit | Siemens | ||||
| Max. inlet pressure | Dungs Gas Multi Bloc | ||||
| Fittings | Ionisation | ||||
| Flame monitoring | . | ||||
| Air damper motor | . | ||||
| Ball valve | . | ||||
| Pressure gauge | . | ||||
| Leakage control | . | ||||
| Regulator R 316 | . | ||||
| Gross weight | kg c. | 25 | 27 | 29 | 32 |
| Volume | m³c. | 0.13 | 0.13 | 0.15 | 0.16 |
