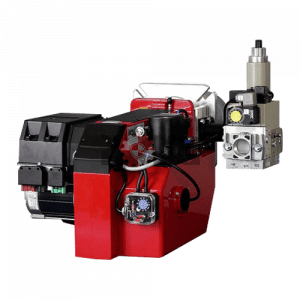

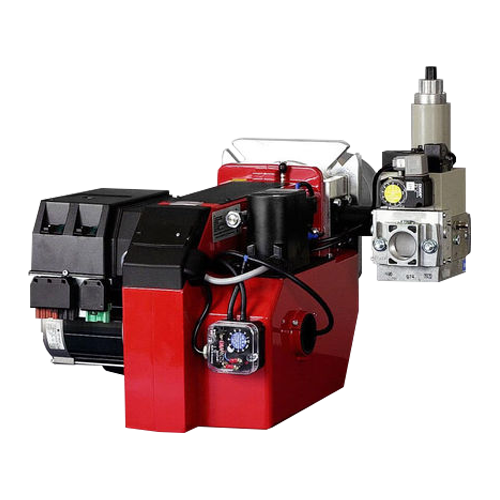

Gas Burner Modulating BENTONE BG450M
Gas Burner Modulating BENTONE BG450M is an efficient and safe gas burner designed for industrial heating. The BG450M model automatically adjusts heat levels to meet system requirements, providing reliability and performance. Manufactured by BENTONE, it ensures quality and durability.
Facebook
Twitter
Email
Print
Gas Burner Modulating BENTONE BG450M
INFORMATION
- Energy saving and compatible with environmental requirements
- Quiet in operation and designed for easy maintenance
- Reliable and trouble free
- Designed and approved in accordance with the European standard EN 676
- 2-stage or modulating
- Plug-in contact facilitates the installation
- Two valves, slow opening
- Gas connection left or right
- Available for natural gas, LPG,town gas, biogas
- When biogas is used, Bentone shall always be contacted

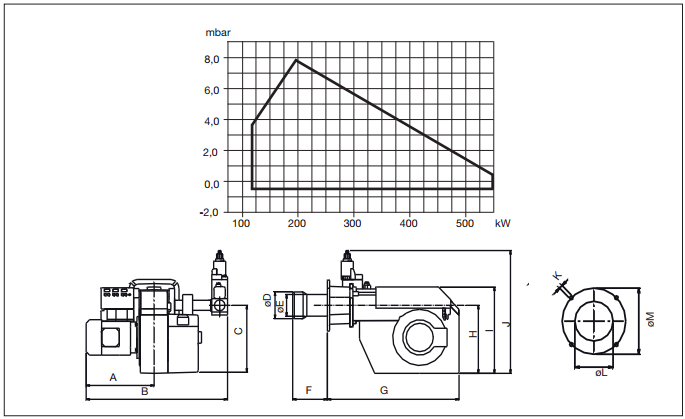

| Type | BG450-2/BG450M | |
| Capacity | kW | 120-550 |
| Motor | V/Hz/W | 230/50-60/450 |
| Control unit | Siemens | |
| Air damper motor | . | |
| Max. inlet pressure | mbar | 360 |
| Fittings | Dungs Gas Multi Bloc | |
| Flame monitoring | Ionisation | |
| Ball valve | . | |
| Pressure gauge | . | |
| Leakage control | . | |
| Regulator R 316 | . | |
| Gross weight | kg c. | 75 |
| Volume | m³ c. | 0.7 |
