Gas Burner Modulating BENTONE BG800M
Gas Burner Modulating BENTONE BG800M is an efficient and safe gas burner designed for industrial heating. The BG800M model automatically adjusts heat levels to meet system requirements, providing reliability and performance. Manufactured by BENTONE, it ensures quality and durability.
Facebook
Twitter
Email
Print

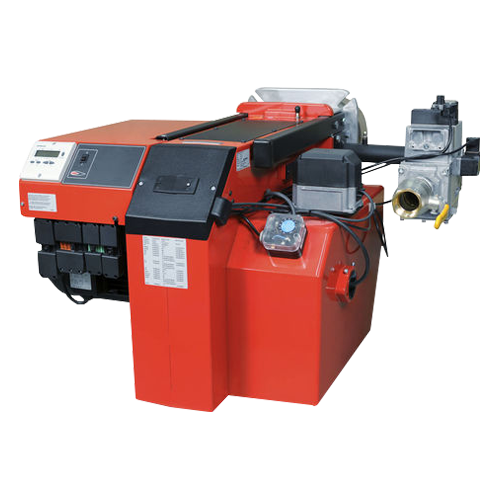

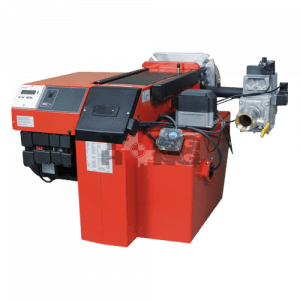

Gas Burner Modulating BENTONE BG800M
Modulation burner available in versions up to 2400 kW. Can be equipped with traditional control system or highly sophisticated burner management system from Siemens. The Siemens LMV control system gives you:
- User friendly display control
- Electronic ratio-control between air and fuel
- Build-in leakage control (VPS)
- Communication to main control unit (superior system) via modbus
- BG 800M are suitable for traditional boilers, steam boilers, furnaces and all other areas of heating applications. Can be used in both over- and under –
- pressure boilers. Designed for easy maintenance.
Our industrial gas burner can be used for LPG, Natural gas and Biogas.

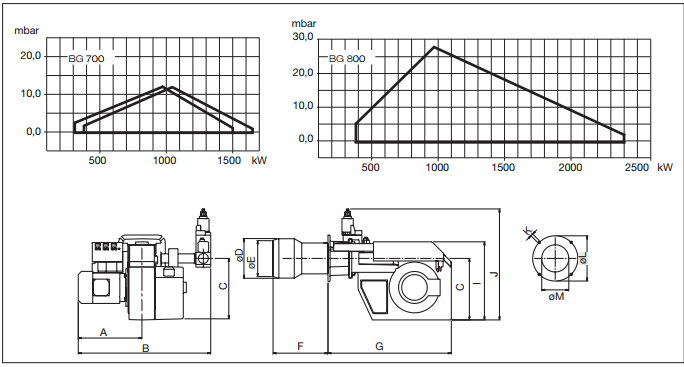

| Type | BG700 | BG800 | |
| Model | LMV | LMV | |
| Capacity G20 | kW | 300-1500 | 380-2400 |
| Capacity G25 | kW | 360-1650 | 380-2400 |
| Capacity G30 | kW | 380-2400 | |
| Capacity G31 | kW | 380-1650 | 380-2400 |
| Motor | V/Hz/W | 420/50-60/3000 | 420/50-60/5500 |
| Control unit | Siemens LMV 2/3 | ||
| Max. inlet pressure | mbar | 360 | |
| Fittings | Dungs/Siemens | ||
| Flame monitoring | Ionisation/UV | ||
| Damper motor | Air/Gas | . | |
| Ball valve | . | ||
| Modbus | . | ||
| Leakage control | . | ||
| Power control | . | ||
| Gross weight | kg c. | 147 | 166 |
| Volume | m³ c. | 1.23 | |
