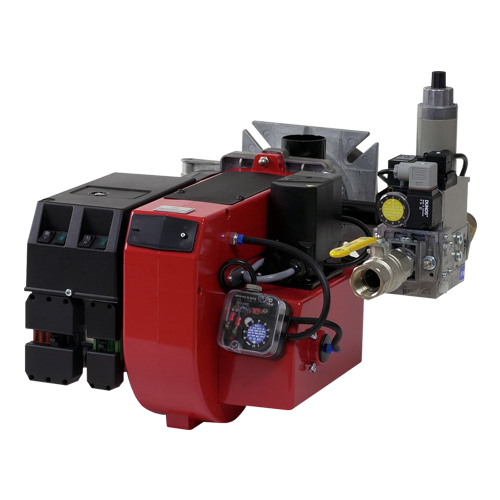

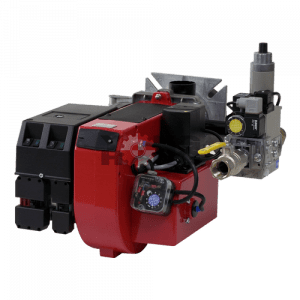

Gas Burner One stage BENTONE BG400
Gas Burner One stage BENTONE BG400 is a gas burner designed for use in gas combustion systems. It features a single-stage combustion capability, making it easy to operate and adjust flame height according to requirements. The BENTONE BG400 is known for its durability and suitability for various applications and environments.
Gas Burner One stage BENTONE BG400
Available in versions up to 318 kW, 1-stage (2-stage and modulating also available).
Hinged flange. Slow opening solenoid valve.
Gas connection left or right. Recommended for over- and under-pressure boilers. Design for easy maintenance. Energy saving. When Biogas is used, Bentone shall always be contacted.
Gas Burner
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 676
– 1-stage, 2-stage or modulating
– Plug-in contact facilitates the installation
– Two valves, slow opening
– Hinged flange
– Gas connection left or rigth
– Available for natural gas, LPG, town gas, biogas-
When biogas is used, Bentone shall always be contacted
| Type | BG300 | BG300-2,M | BG400 | BG400-2,M | |
| Capacity | kW | 60-190 | 60-190 | 60-318 | 60-318 |
| Motor | V/Hz/W | 230/50-60/180 | 23/50-60/250 | ||
| Cntrol unit | Siemens | ||||
| Max. inlet pressure | 360 | ||||
| Fittings | Dungs GasMuiltiBloc | ||||
| Flame monitoring | Ionisation | ||||
| Air damper motor | . | ||||
| Ball valve | . | ||||
| Pressure gauge | . | ||||
| Leakage control | . | ||||
| Regulator RM 16 | . | ||||
| Gross weight | kg c. | 25 | 27 | 29 | 32 |
| Volume | m³ c. | 0.16 | 0.15 | 0.13 | 0.16 |
