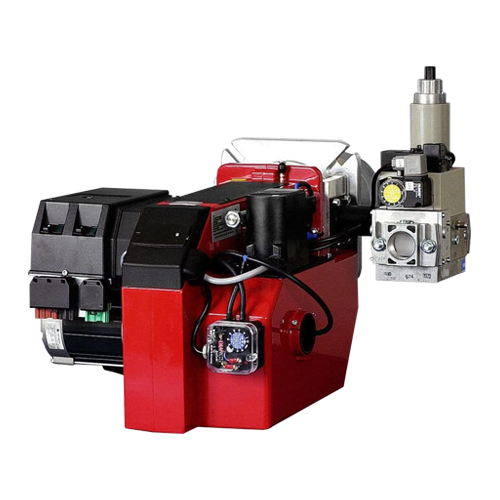

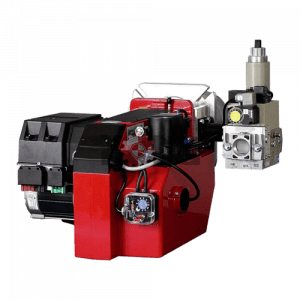

Gas Burner Two stage BENTONE BG450-2
Gas Burner Two stage BENTONE BG450-2 is a gas burner designed for use in gas combustion systems. It features a two-stage combustion capability, allowing efficient control of energy consumption. The burner is versatile and suitable for various gas types, providing flexibility for different applications. The BENTONE BG450-2 is engineered for high performance, making it an ideal choice for industrial and construction settings where precise and efficient combustion control is essential.
Gas Burner Two stage BENTONE BG450-2
INFORMATION
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 676
– 2-stage or modulating
– Plug-in contact facilitates the installation
– Two valves, slow opening
– Gas connection left or right
– Available for natural gas, LPG,town gas, biogas
– When biogas is used, Bentone shall always be contacted

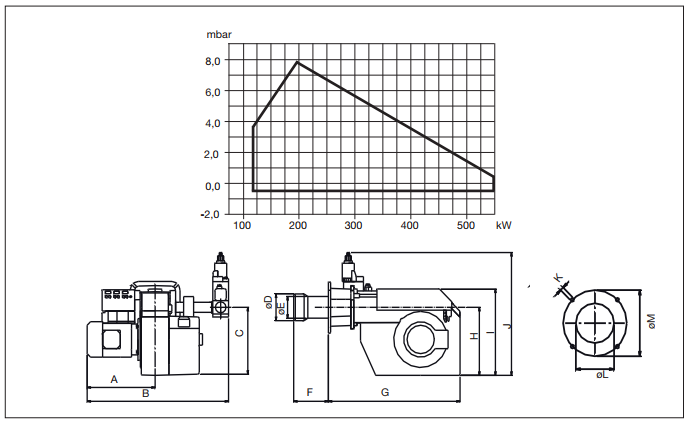

| Type | BG450-2/BG450M | |
| Capacity | kW | 120-550 |
| Motor | V/Hz/W | 230/50-60/450 |
| Cntrol unit | Siemens | |
| Air damper motor | . | |
| Max. inlet pressure | mbar | 360 |
| Fittings | Dungs GasMuiltiBloc | |
| Flame monitoring | Ionisation | |
| Ball valve | . | |
| Pressure gauge | . | |
| Leakage control | . | |
| Regulator R 316 | . | |
| Gross weight | kg c. | 75 |
| Volume | m³ c. | 0.7 |
