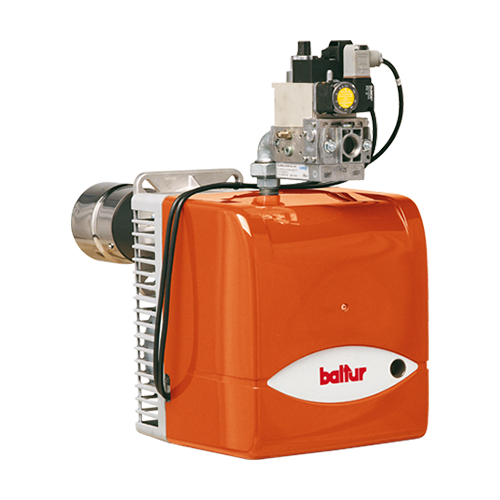

Gas burners BALTUR (BTG)
Single-stage gas burners.
Single-stage (on/off).
TECHNICAL DATA
| MODEL | Flow rate (Sm3/H) | thermal power(kW) to ErP | Power Supply | Fan motor power | Weight (kg) | DIMENSIONS (mm) | ||||||
| Min | Max | Min | Max | Voltage | Frequency | (kW) | With Out | With | W | D | H | |
| BTG 3 50-60Hz | 1.8 | 4.5 | 16.6 | 42.7 | 230 | 50/60 | 0.1 | 8.2 | 9 | 400 | 300 | 280 |
| BTG 6 50-60Hz | 3.2 | 6 | 30.6 | 56.3 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 11 50-60Hz | 5.2 | 10.5 | 48.8 | 99 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 12 50-60Hz | 3.7 | 12.2 | 35 | 115 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 15 50-60Hz | 5.3 | 16.9 | 50 | 160 | 230 | 50/60 | 0.2 | 17 | 18 | 780 | 370 | 410 |
| BTG 20 50-60Hz | 6.3 | 21.7 | 60 | 205 | 230 | 50/60 | 0.2 | 17 | 18 | 780 | 370 | 410 |
