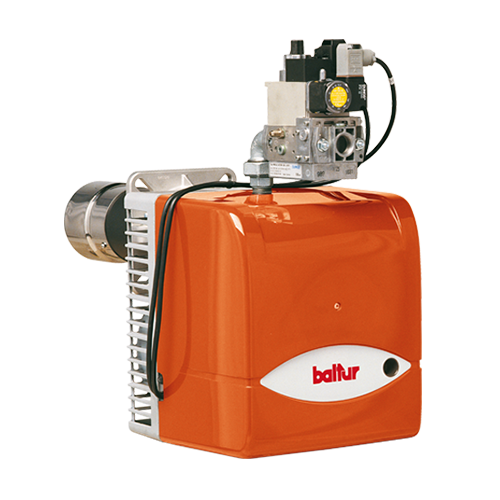

Gas burners BALTUR (BTG P)
Two-stage gas burners.
Two-stage.
Series BTG P
| MODEL | Flow rate (Sm3/H) | thermal power(kW) to ErP | Power Supply | Fan motor power | Weight (kg) | DIMENSIONS (mm) | ||||||
| Min | Max | Min | Max | Voltage | Frequency | (kW) | With Out | With | W | D | H | |
| BTG 3-6 P 50-60Hz | 1.7 | 4.4 | 16.3 | 41.3 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 6 P 50-60 Hz | 3.2 | 6 | 30.6 | 56.3 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 11 P 50-60 Hz | 5.2 | 10.5 | 48.8 | 99 | 230 | 50/60 | 0.1 | 10.8 | 12 | 540 | 300 | 320 |
| BTG 15 P 50-60 Hz | 50 | 160 | 5.3 | 16.9 | 230 | 50/60 | 0.2 | 17 | 18 | 780 | 370 | 410 |
| BTG 20 P 50-60Hz | 6.3 | 21.7 | 60 | 205 | 230 | 50/60 | 0.2 | 17 | 18 | 780 | 370 | 410 |
