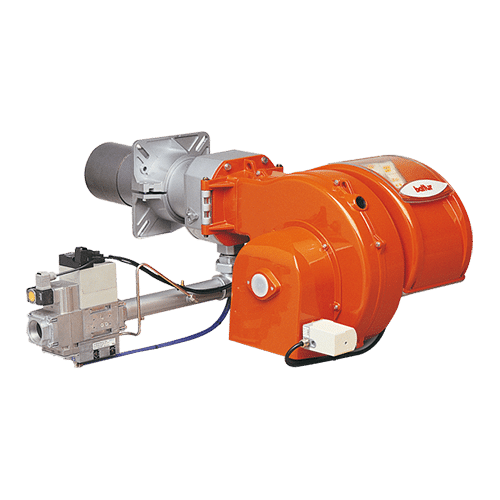

Gas burners BALTUR (TBG LX PN)
Gas burners BALTUR (TBG LX PN) is a high-performance gas burner designed to provide efficient energy in gas form. It is durable and safe for use, with the ability to adjust flame height according to specific requirements. This burner is suitable for various applications, including industrial processes and food service businesses, delivering reliable and flexible performance. Manufactured by BALTUR, a reputable producer, you can expect trustworthy quality and efficiency.
Facebook
Twitter
Email
Print
Gas burners BALTUR (TBG LX PN)
Progressive/modulating two-stage gas burners with low polluting emissions with pneumatic regulation.
Two-stage progressive.
Pneumatic valve.
Low NOx emissions.
TECHNICAL DATA
| MODEL | thermal power(kW) to ErP | Flow rate (Sm3/H) | Power Supply | Fan motor power | Weight (kg) | DIMENSIONS (mm) | ||||||
| Min | Max | Min | Max | Voltage | Frequency | (kW) | With Out | With | W | D | H | |
| TBG 80 LX PN | 130 | 800 | 14 | 85 | 400 | 50/60 | 1.1 | 57 | 78 | 1070 | 800 | 700 |
| TBG 110 LX PN | 180 | 1200 | 19 | 127 | 400 | 50/60 | 1.5 | 67 | 88 | 1070 | 800 | 700 |
| TBG 100 LX PN V | 180 | 1200 | 19 | 127 | 400 | 50 | 1.5 | 80 | 101 | 1070 | 800 | 700 |
| TBG 140 LX PN | 200 | 1450 | 21 | 153 | 400 | 50/60 | 2.2 | 71 | 92 | 1070 | 800 | 700 |
| TBG 140 LX PN V | 200 | 1450 | 21 | 153 | 400 | 50 | 2.2 | 86 | 107 | 1070 | 800 | 700 |
| TBG 200 LX PN | 475 | 1900 | 50 | 201 | 400 | 50/60 | 3 | 74 | 95 | 1070 | 800 | 700 |
| TBG 200 LX PN V | 475 | 1900 | 50 | 201 | 400 | 50 | 3 | 89 | 110 | 1070 | 800 | 700 |
| TBG 140 LX MC | 200 | 1450 | 21 | 1153 | 400 | 50 | 2.2 | 70 | 91 | 1070 | 800 | 700 |
| TBG 200 LX MC | 475 | 1900 | 50 | 201 | 400 | 50 | 3 | 73 | 94 | 1070 | 800 | 700 |
