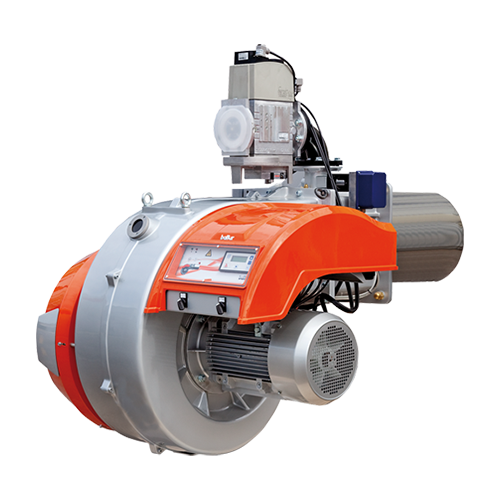

Gas burners BALTUR (TBG MC)
Progressive/modulating two-stage gas burners with mechanical cam.
Two-stage progressive.
Mechanical cam.
TECHNICAL DATA
| MODEL | thermal power(kW) to ErP | Flow rate (Sm3/H) | Power Supply | Fan motor power | Weight (kg) | DIMENSIONS (mm) | ||||||
| Min | Max | Min | Max | Voltage | Frequency | (kW) | With Out | With | W | D | H | |
| TBG 35 MC | 80 | 410 | 8 | 43 | 230 | 50/60 | 0.4 | 29 | 31 | 980 | 540 | 480 |
| TBG 45 MC | 100 | 450 | 11 | 48 | 230 | 50/60 | 0.5 | 33 | 49 | 1070 | 800 | 700 |
| TBG 60 MC | 120 | 600 | 13 | 63 | 400 | 50/60 | 0.8 | 35 | 51 | 1070 | 800 | 700 |
| TBG 85 MC | 170 | 850 | 18 | 90 | 400 | 50/60 | 1.1 | 67 | 88 | 1070 | 800 | 700 |
| TBG 120 MC | 240 | 1200 | 25 | 127 | 400 | 50/60 | 1.5 | 67 | 88 | 1070 | 800 | 700 |
| TBG 150 MC | 300 | 1500 | 32 | 159 | 400 | 50/60 | 2.2 | 71 | 92 | 1070 | 800 | 700 |
| TBG 210 MC | 400 | 2100 | 42 | 222 | 400 | 50/60 | 3 | 74 | 95 | 1070 | 800 | 700 |
| TBG 260 MC | 450 | 2600 | 48 | 275 | 400 | 50/60 | 5.5 | 89 | 110.1 | 1070 | 870 | 720 |
| TBG 260 MC | 500 | 3600 | 53 | 381 | 400 | 50/60 | 7.5 | – | 117.3 | 1070 | 870 | 720 |
| TBG 480 MC | 480 | 4800 | 51 | 508 | 400 | 50/60 | 11 | 270 | 330 | 1530 | 1150 | 960 |
| TBG 800 MC | 800 | 8000 | 85 | 847 | 400 | 50/60 | 15 | 286.9 | 460 | 1950 | 1510 | 1320 |
| TBG 900 MC | 1000 | 9500 | 106 | 1005 | 400 | 50 | 1.5 | 286.9 | 460 | 1950 | 1510 | 1320 |
| TBG 1100 MC | 1000 | 11000 | 106 | 1164 | 400 | 50/60 | 22 | 305.8 | 480 | 1950 | 1510 | 1320 |
| TBG 1200 | 1200 | 12000 | 127 | 1270 | 400 | 50/60 | 22 | – | 650 | 1950 | 1680 | 1280 |
| TBG 1600 MC | 1600 | 16000 | 169 | 1693 | 400 | 50/60 | 30 | 490.1 | 704.1 | 1950 | 1680 | 1280 |
| TBG 2000 MC | 2700 | 22000 | 286 | 2328 | 400 | 50/60 | 45 | – | 1150 | 2100 | 2040 | 1380 |
