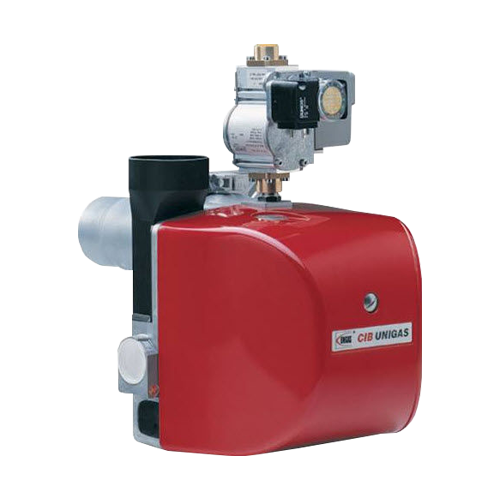

Burners C I B unigas Low NOx Class 2 IDEA NG35-NG90
Burners C I B unigas Low NOx Class 2 IDEA NG35-NG90 is suitable for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation. This burner also features Low NOx technology to reduce air pollution.
Gas Burners C I B unigas Low NOx Class 2 IDEA NG35-NG90
These burners are, in dimensions and output, the smallest burners of the new line IDEA-gas. NG35 burner can be arranged to use external combustion air on request.
In this case the burner will be supplied with a watertight and airtight air intake, linked outside by means of a duct ten metres long.
Combustion air can be easily set by the adjusting screw without removing the cover. The cover, easily removable, is heat resistant (ABS material).
The burner is designed to be aesthetic and functional but at the same time gives prominence to innovative technologies; in fact all components can be fitted into a backing plate which can be moved and attached to special fixings within the burner to make maintenance easier
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| NG35 | M-.TN.S.xx.A.0.10 | 20 | 41 | 2.1 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.L.xx.A.0.10 | 20 | 41 | 2.1 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.S.xx.A.0.15 | 20 | 41 | 2.1 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.L.xx.A.0.15 | 20 | 41 | 2.1 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.L.xx.Z.0.10 | 20 | 41 | 2.1 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | – |
| NG35 | M-.TN.S.xx.Z.0.10 | 20 | 41 | 2.1 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.L.xx.Z.0.10 | 20 | 41 | 2.1 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.S.xx.Z.0.15 | 20 | 41 | 2.1 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG35 | M-.TN.L.xx.Z.0.15 | 20 | 41 | 2.1 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NG70 | M-.TN.S.xx.A.0.10 | 30 | 70 | 3.2 | 7.4 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.TN.L.xx.A.0.10 | 30 | 70 | 3.2 | 7.4 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.TN.S.xx.A.0.15 | 30 | 70 | 3.2 | 7.4 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.TN.L.xx.A.0.15 | 30 | 70 | 3.2 | 7.4 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.AB.S.xx.A.0.10 | 19 | 68 | 2 | 7.2 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.AB.L.xx.A.0.10 | 19 | 68 | 2 | 7.2 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.AB.S.xx.A.0.15 | 19 | 68 | 2 | 7.2 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG70 | M-.AB.L.xx.A.0.15 | 19 | 68 | 2 | 7.2 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.S.xx.A.0.10 | 40 | 85 | 4.2 | 9 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.L.xx.A.0.10 | 40 | 85 | 4.2 | 9 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.S.xx.A.0.15 | 40 | 85 | 4.2 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.L.xx.A.0.15 | 40 | 85 | 4.2 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.S.xx.A.0.20 | 40 | 85 | 4.2 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.TN.L.xx.A.0.20 | 40 | 85 | 4.2 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.S.xx.A.0.10 | 22 | 85 | 2.3 | 9 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.L.xx.A.0.10 | 22 | 85 | 2.3 | 9 | 200 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.S.xx.A.0.15 | 22 | 85 | 2.3 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.L.xx.A.0.15 | 22 | 85 | 2.3 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.S.xx.A.0.20 | 22 | 85 | 2.3 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NG90 | M-.AB.L.xx.A.0.20 | 22 | 85 | 2.3 | 9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
