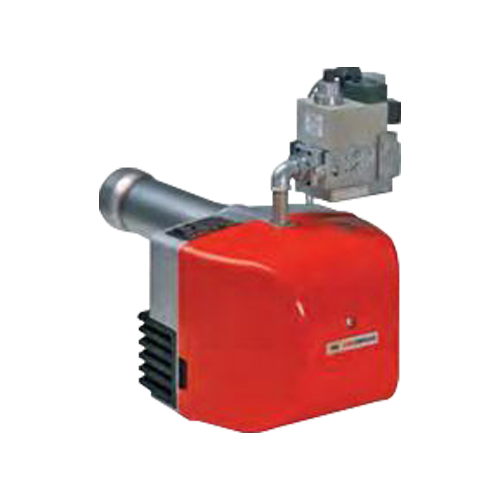

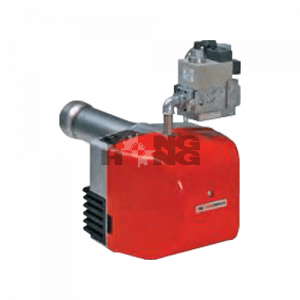

Burners C I B Unigas Low NOx Class 3 IDEA Low NOx NGX35 NGX70
Burners C I B Unigas Low NOx Class 3 IDEA Low NOx NGX35 NGX70 is a Class 2 gas burner designed for use with natural gas (NG). It is suitable for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation. This burner also features Low NOx technology to reduce air pollution.
เครื่องพ่นไฟ Gas Burners C I B Unigas Low NOx Class 3 IDEA Low NOx NGX35 NGX70
In its market actions priorities, CIB UNIGAS pays continuous attention to the development of products that can perform the lowest flue gas emissions. Particular attention is reserved to civil application burners for domestic heating systems and sanitary water production with outputs up to 65 kW. The 35 and 70 IDEA series performs these applications properly, strictly observing the regulations about emissions reduction, thanks to the new combustion head designed to match both the pressurised and flame reversal boilers.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| NGX35 | M-.TN.S.xx.A.0.10 | 27 | 41 | 2.9 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.L.xx.A.0.10 | 27 | 41 | 2.9 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.S.xx.A.0.15 | 27 | 41 | 2.9 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.L.xx.A.0.15 | 27 | 41 | 2.9 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.S.xx.Z.0.10 | 27 | 41 | 2.9 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.L.xx.Z.0.10 | 27 | 41 | 2.9 | 4.3 | 200 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.S.xx.Z.0.15 | 27 | 41 | 2.9 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX35 | M-.TN.L.xx.Z.0.15 | 27 | 41 | 2.9 | 4.3 | 360 | 230 | 1Nac 50 | 0.38 | 0.075 | 0.305 | IP40 |
| NGX70 | M-.TN.S.xx.A.0.15 | 40 | 65 | 4.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.TN.L.xx.A.0.15 | 40 | 65 | 4.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.TN.S.xx.A.0.20 | 40 | 65 | 4.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.TN.L.xx.A.0.20 | 40 | 65 | 4.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.AB.S.xx.A.0.15 | 21 | 65 | 2.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.AB.L.xx.A.0.15 | 21 | 65 | 2.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.AB.S.xx.A.0.20 | 21 | 65 | 2.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
| NGX70 | M-.AB.L.xx.A.0.20 | 21 | 65 | 2.2 | 6.9 | 360 | 230 | 1Nac 50 | 0.4 | 0.1 | 0.3 | IP40 |
