Burners C I B Unigas Low NOx Class 3 NOVANTA Low NOx RX92R RX92

Gas Burners C I B Unigas Low NOx Class 3 NOVANTA Low NOx RX92R RX92

The NOVANTA-CINQUECENTO series is designed for industrial boilers up to 2450 kW, and represent the best evolution in the technology development for the nitric oxide low emissions (<80 mg/kWh).

This series is designed for either mechanical or electronic combustion control with or without inverter, with or without oxygen trim control. It assures reliability and efficiency. The electronic version preforms communication via BUS. Thanks to the balanced air/gas ratio distribution, the extreme flexibility of the new combustion head allows a homogeneous flame along the combustion chamber axis to form.

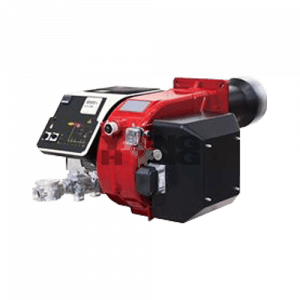

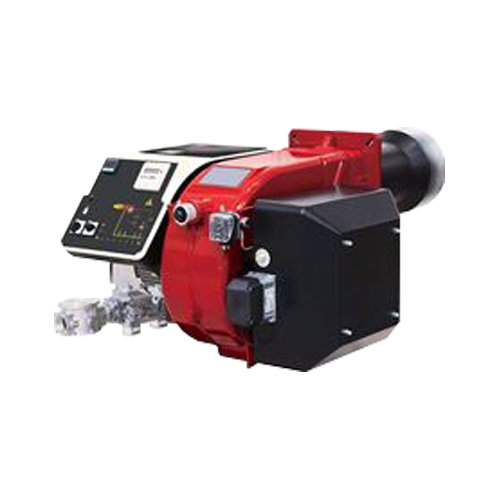

The burner is made of die-casting aluminium body on which all mechanical and electronic regulating components are mounted. The synoptic control panel shows the operating stages. The new air inlet system with built-in silencer ensures the lowest noise levels.
