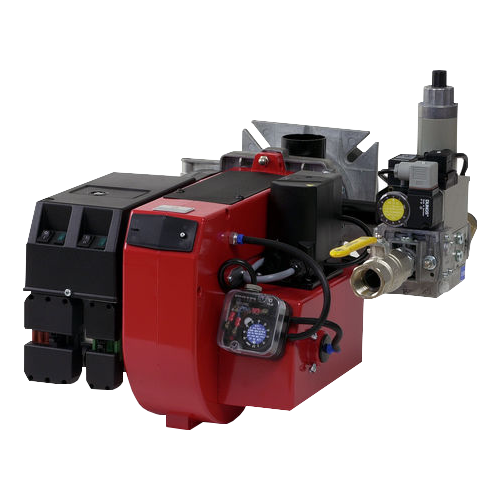

Gas burners Two stage BENTONE BG400-2
Gas burners Two stage BENTONE BG400-2 is a gas burner designed for use in gas combustion systems. It features a two-stage combustion capability, allowing efficient control of energy consumption. The burner is versatile and suitable for various gas types, providing flexibility for different applications. The BENTONE BG400-2 is engineered for high performance, making it an ideal choice for industrial and construction settings where precise and efficient combustion control is essential.
Gas burners Two stage BENTONE BG400-2
Gas Burner
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintnence
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 676
– 1 stage, 2-stage or modulating
– Plug-in contact facilitates the installation
– Two valves. slow opening
– Hinged flange
– Gas connection left or right
– Available for natural gas, LPG, town gas, biogas
– When biogas gas is used, Bentone shall always be contacted

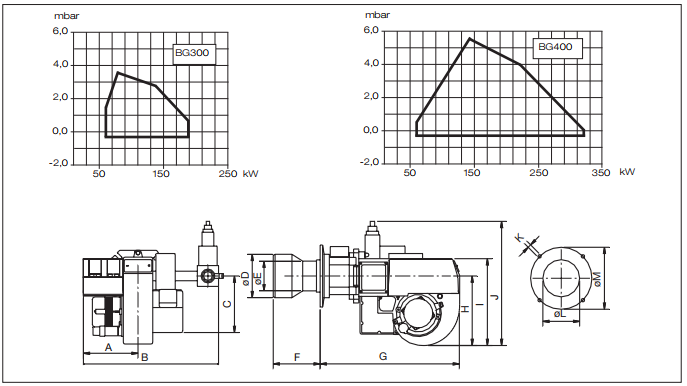

| Type | BG300 | BG300-2,M | BG400 | BG400-2,M | |
| Capacity | kW | 60-190 | 60-190 | 60-318 | 60-318 |
| Motor | V/Hz/W | 230/50-60/180 | 230/50-60/250 | ||
| Control unit | Siemens | ||||
| Max. inlet pressure | 360 | ||||
| Fittings | Dungs GasMuiltiBloc | ||||
| Flame monitoring | Ionisation | ||||
| Air damper motor | . | ||||
| Ball valve | . | ||||
| Pressure gauge | . | ||||
| Leakage control | . | ||||
| Regulator R 316 | . | ||||
| Gross weight | kg c. | 25 | 27 | 29 | 32 |
| Volume | m³c. | 0.13 | 0.13 | 0.15 | 0.16 |
