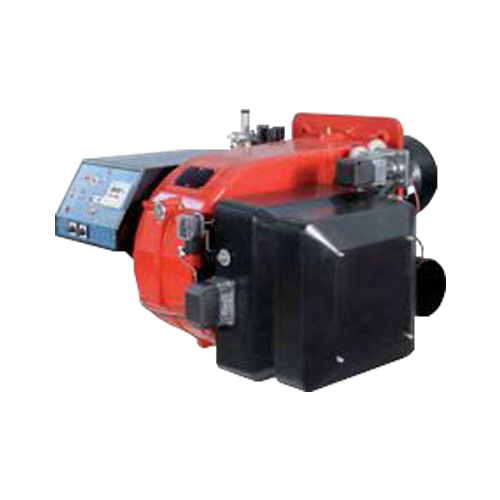

Burners C I B Unigas MILLE (pneumatic) RBY1025-RBY1040

Burners C I B Unigas MILLE (pneumatic) RBY1025-RBY1040 is a compact and convenient burner designed for efficient combustion, specifically for use with light oil or gasoline. It features precise flame control and is designed to be user-friendly. The RBY1025-RBY1040 model is suitable for applications where space is limited or when a small-sized burner is needed.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Heavy Oil Burners C I B Unigas MILLE (pneumatic) RBY1025-RBY1040

Burner type Model Power [min, kW] Power [max, kW] Gas pressure [max, mbar] Oil flow [min, kg/h] Oil flow [max, kg/h] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Pump motor [kW] Oil heating resistors [kW] Power supply [aux, kW] Protection class IP
RBY1025 H-.PR.S.xx.A.EA 2550 8700 500 222 759 400 3Nac 50 43.75 18.5 0.75 24 0.5 IP40
RBY1025 H-.PR.L.xx.A.EA 2550 8700 500 222 759 400 3Nac 50 43.75 18.5 0.75 24 0.5 IP40
RBY1025 H-.MD.S.xx.A.ES 2550 8700 500 222 759 400 3Nac 50 43.75 18.5 0.75 24 0.5 IP40
RBY1025 H-.MD.L.xx.A.ES 2550 8700 500 222 759 400 3Nac 50 43.75 18.5 0.75 24 0.5 IP40
RBY1030 H-.PR.S.xx.A.EA 2550 10000 500 222 872 400 3Nac 50 59.6 22 1.1 18 + 18 0.5 IP40
RBY1030 H-.PR.L.xx.A.EA 2550 10000 500 222 872 400 3Nac 50 59.6 22 1.1 18 + 18 0.5 IP40
RBY1030 H-.MD.S.xx.A.ES 2550 10000 500 222 872 400 3Nac 50 59.6 22 1.1 18 + 18 0.5 IP40
RBY1030 H-.MD.L.xx.A.ES 2550 10000 500 222 872 400 3Nac 50 59.6 22 1.1 18 + 18 0.5 IP40
RBY1040 H-.PR.S.xx.A.EA 2550 13000 500 222 1133 400 3Nac 50 79.6 30 1.1 24 + 24 0.5 IP40
RBY1040 H-.PR.L.xx.A.EA 2550 13000 500 222 1133 400 3Nac 50 79.6 30 1.1 24 + 24 0.5 IP40
RBY1040 H-.MD.S.xx.A.ES 2550 13000 500 222 1133 400 3Nac 50 79.6 30 1.1 24 + 24 0.5 IP40
RBY1040 H-.MD.L.xx.A.ES 2550 13000 500 222 1133 400 3Nac 50 79.6 30 1.1 24 + 24 0.5 IP40
