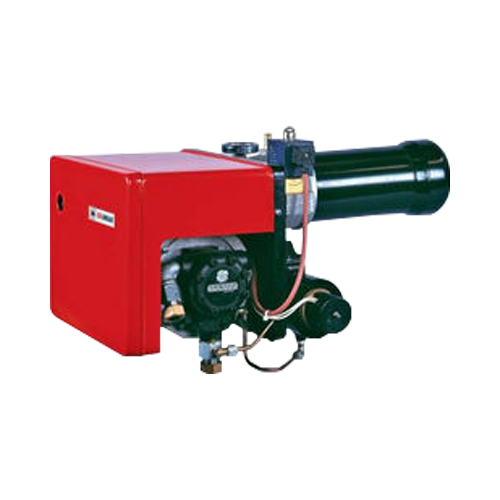

Burners C I B Unigas MINIFLAM N18
Burners C I B Unigas MINIFLAM N18 is a compact and convenient burner designed for efficient combustion, specifically for use with light oil or gasoline. It features precise flame control and is designed to be user-friendly. The MINIFLAM N18 model is suitable for applications where space is limited or when a small-sized burner is needed.
Facebook
Twitter
Email
Print
Burners C I B Unigas MINIFLAM N18
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Oil heating resistors [kW] | Power supply [aux, kW] | Protection class IP |
| N18 | P-.TN.S.xx.A | 105 | 209 | 9.4 | 18.7 | 400 | 3Nac 50 | 2.55 | 0.55 | 1.5 | 0.5 | IP40 |
| N18 | N-.TN.S.xx.A | 105 | 209 | 9.2 | 18.2 | 400 | 3Nac 50 | 2.55 | 0.55 | 1.5 | 0.5 | IP40 |
| N18 | E-.TN.S.xx.A | 105 | 209 | 9.2 | 18.2 | 400 | 3Nac 50 | 2.55 | 0.55 | 1.5 | 0.5 | IP40 |
| N18 | D-.TN.S.xx.A | 105 | 209 | 9.2 | 18.2 | 400 | 3Nac 50 | 2.55 | 0.55 | 1.5 | 0.5 | IP40 |
