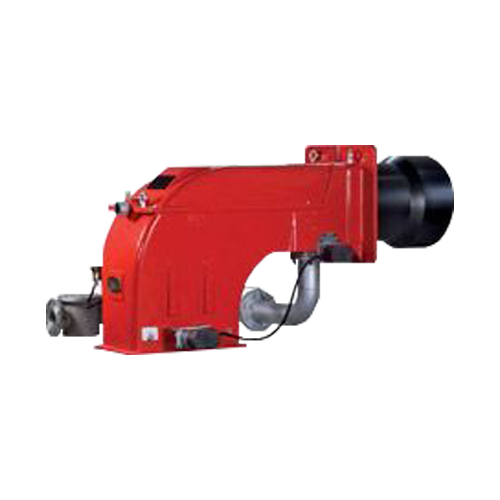

Burners Class 2 and Class 3 C I B Unigas CINQUECENTO – TP TP512A-TP525A

Burners Class 2 and Class 3 C I B Unigas CINQUECENTO – TP TP512A-TP525A is a compact and convenient burner designed for efficient combustion, specifically for use with light oil or gasoline. It features precise flame control and is designed to be user-friendly. The TP512A-TP525A model is suitable for applications where space is limited or when a small-sized burner is needed.

Category
Facebook
Twitter
Email
Print

Industrial Gas Burners Class 2 and Class 3 C I B Unigas CINQUECENTO – TP TP512A-TP525A

Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Voltage [V] Phases / frequency [Hz] Total power [kW] Power supply [aux, kW] Protection class IP
TP512A M-.PR.S.xx.A.1.50 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.65 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.80 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.100 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.50 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.65 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.80 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.100 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.50.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.65.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.80.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.PR.S.xx.A.1.100.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.50.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.65.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.80.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.100.EA 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.50.ES 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.65.ES 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.100.ES 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP512A M-.MD.S.xx.A.1.80.ES 600 4500 63 476 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.50 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.65 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.80 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.100 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.50 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.65 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.80 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.100 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.50.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.65.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.80.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.PR.S.xx.A.1.100.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.50.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.65.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.80.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.100.EA 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.50.ES 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.65.ES 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.80.ES 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP515A M-.MD.S.xx.A.1.100.ES 770 5200 81 550 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.50 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.65 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.80 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.100 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.50 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.65 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.80 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.100 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.50.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.65.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.80.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.PR.S.xx.A.1.100.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.50.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.65.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.80.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.100.EA 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.50.ES 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.65.ES 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.80.ES 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP520A M-.MD.S.xx.A.1.100.ES 1000 6400 106 677 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.65 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.80 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.100 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.65 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.80 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.100 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.65.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.80.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.PR.S.xx.A.1.100.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.65.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.80.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.100.EA 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.65.ES 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.80.ES 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40
TP525A M-.MD.S.xx.A.1.100.ES 2000 9750 212 1032 500 400 3Nac 50 0.5 0.5 IP40

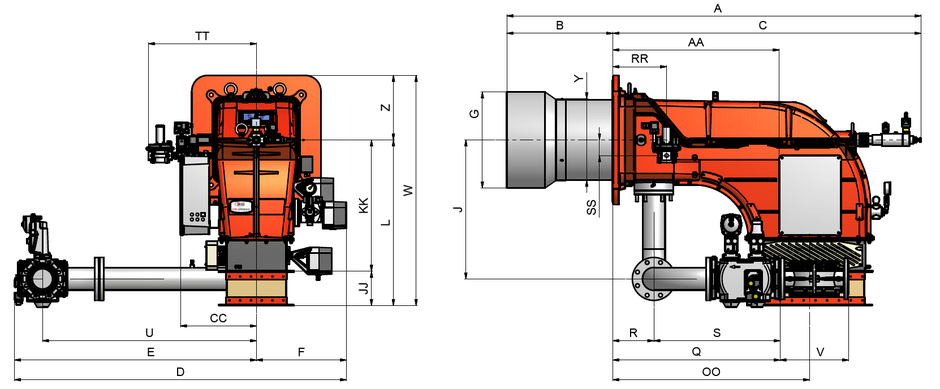

CINQUECENTO TP TP512A TP525A Dimension
