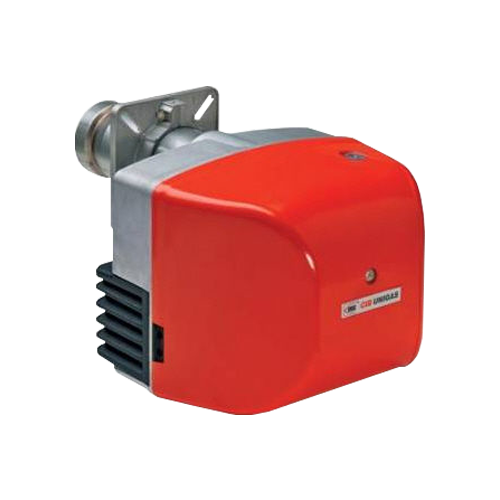

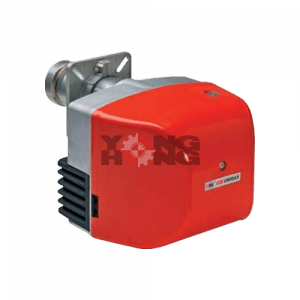

Burners C I B Unigas IDEA LO140-LO200 is a light oil burner designed for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| LO140 | G-.TN.S.xx.A | 80 | 160 | 6.7 | 13.5 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO140 | G-.TN.L.xx.A | 80 | 160 | 6.7 | 13.5 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO140 | G-.TN.S.xx.A.P | 80 | 160 | 6.7 | 13.5 | 230 | 1Nac 50 | 0.58 | 0.18 | 0.4 | IP40 |
| LO140 | G-.TN.L.xx.A.P | 80 | 160 | 6.7 | 13.5 | 230 | 1Nac 50 | 0.58 | 0.18 | 0.4 | IP40 |
| LO140 | G-.AB.S.xx.A | 38 | 160 | 3.2 | 13.5 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO140 | G-.AB.L.xx.A | 38 | 160 | 3.2 | 13.5 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO200 | G-.TN.S.xx.A | 80 | 200 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO200 | G-.TN.L.xx.A | 80 | 200 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO200 | G-.TN.S.xx.A.P | 80 | 200 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.58 | 0.18 | 0.4 | IP40 |
| LO200 | G-.TN.L.xx.A.P | 80 | 200 | 6.7 | 16.9 | 230 | 1Nac 50 | 0.58 | 0.18 | 0.4 | IP40 |
| LO200 | G-.AB.S.xx.A | 38 | 200 | 3.2 | 16.9 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LO200 | G-.AB.L.xx.A | 38 | 200 | 3.2 | 16.9 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LOX140 | G-.TN.S.xx.A | 64 | 130 | 5.4 | 11 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
| LOX140 | G-.TN.L.xx.A | 64 | 130 | 5.4 | 11 | 230 | 1Nac 50 | 0.48 | 0.18 | 0.3 | IP40 |
